ECS-T1 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP TANT 2.2UF 25V 20% 1411

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Capacitance	Features	Manufacturer Size Code	Mounting Type	Package / Case	Package / Case	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Package / Case

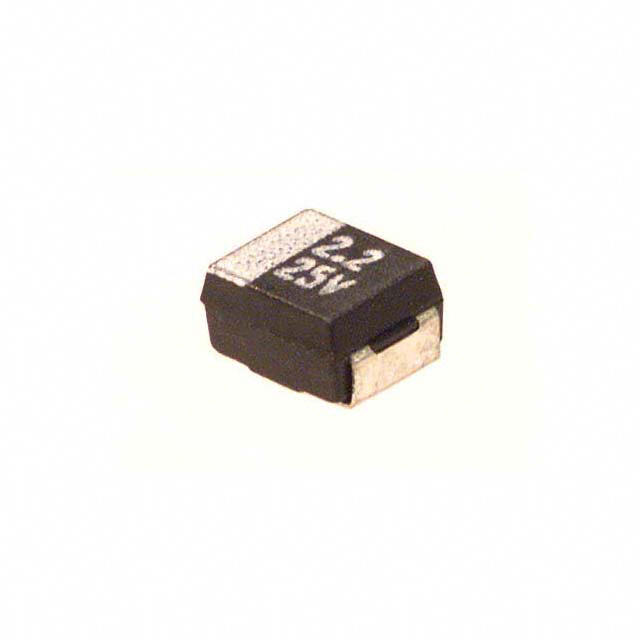

Panasonic Industrial Automation Sales ECS-T1EX225R	1.9 mm	0.075 in	-55 °C	125 °C	25 VDC	0.11 in	2.8 mm	0.138 "	3.5 mm	Molded	2.2 µF	General Purpose	X	Surface Mount	1411	3528 Metric	20 %

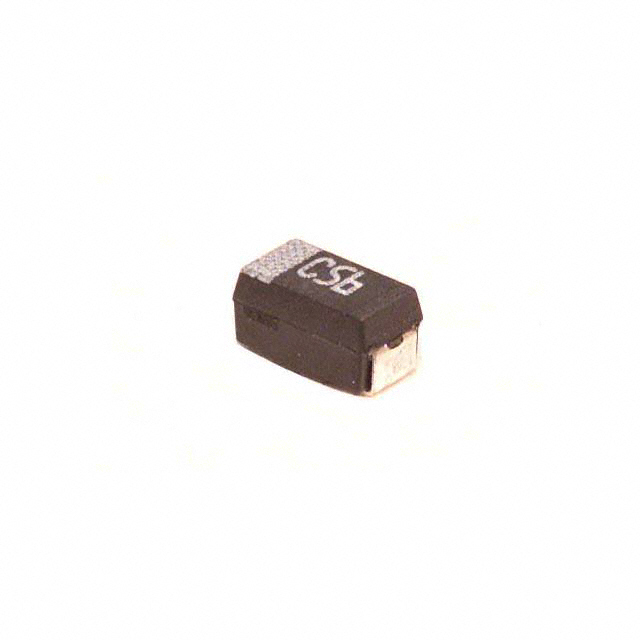

Panasonic Industrial Automation Sales ECS-T1CY475R			-55 °C	125 °C	16 V		1.6 mm		3.2 mm	Molded	4.7 µF	General Purpose	Y	Surface Mount	1206 (3216 Metric)		20 %	0.063 in	0.126 "	0.063 in	1.6 mm

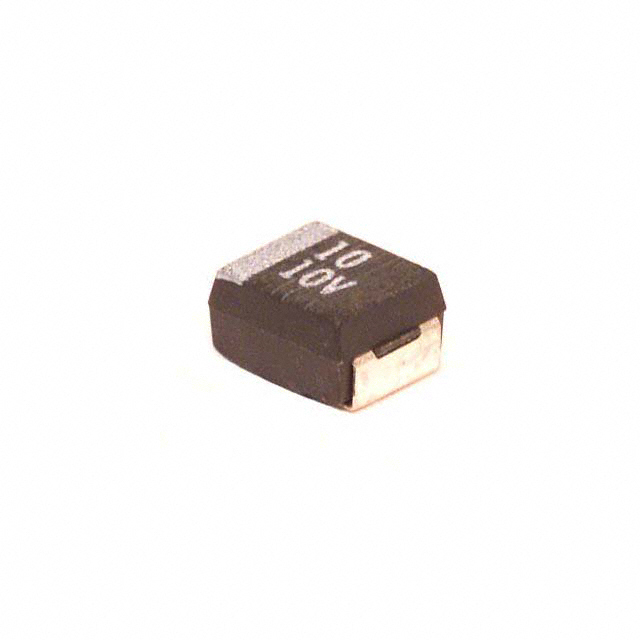

Panasonic Industrial Automation Sales ECS-T1AX106R	1.9 mm	0.075 in	-55 °C	125 °C	10 V	0.11 in	2.8 mm	0.138 "	3.5 mm	Molded	10 µF	General Purpose	X	Surface Mount	1411	3528 Metric	20 %

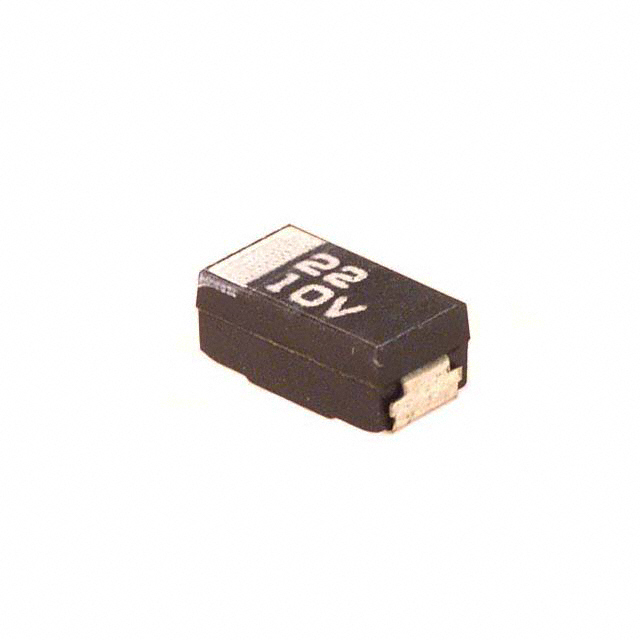

Panasonic Industrial Automation Sales ECS-T1AC226R	2.5 mm	0.098 in	-55 °C	125 °C	10 V	0.126 "	3.2 mm	0.236 in	6 mm	Molded	22 µF	General Purpose		Surface Mount	2312	6032 Metric	20 %

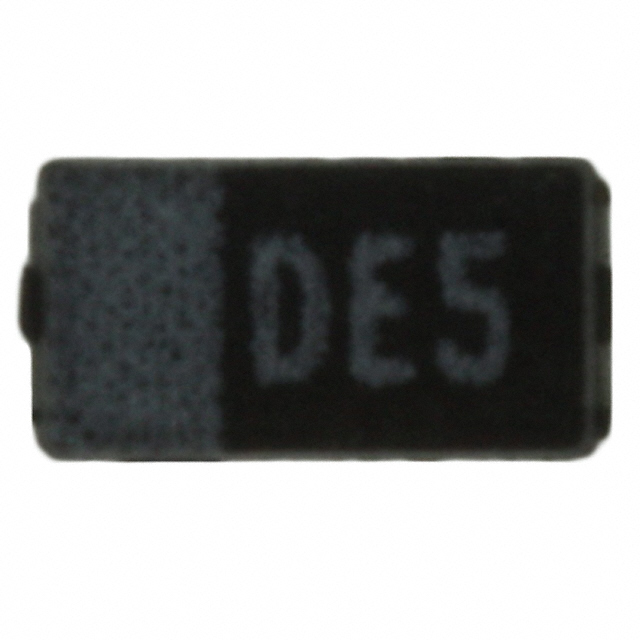

Panasonic Industrial Automation Sales ECS-T1DP154R			-55 °C	125 °C	20 V		1.6 mm		3.2 mm	Molded	0.15 ÁF	General Purpose	P	Surface Mount	1206 (3216 Metric)		20 %	0.063 in	0.126 "	0.047 in		1.2 mm

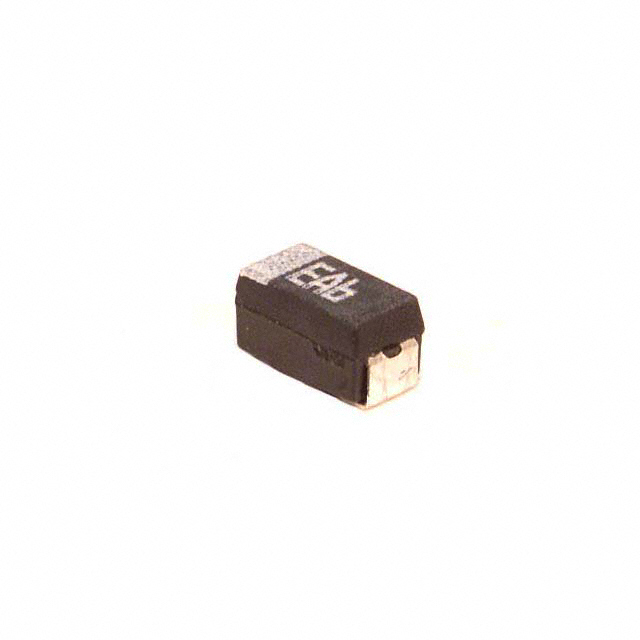

Panasonic Industrial Automation Sales ECS-T1EY105R			-55 °C	125 °C	25 VDC		1.6 mm		3.2 mm	Molded	1 µF	General Purpose	Y	Surface Mount	1206 (3216 Metric)		20 %	0.063 in	0.126 "	0.063 in	1.6 mm
Panasonic Industrial Automation Sales ECS-T1DY684R			-55 °C	125 °C	20 V		1.6 mm		3.2 mm	Molded	680 nF	General Purpose	Y	Surface Mount	1206 (3216 Metric)		20 %	0.063 in	0.126 "	0.063 in	1.6 mm

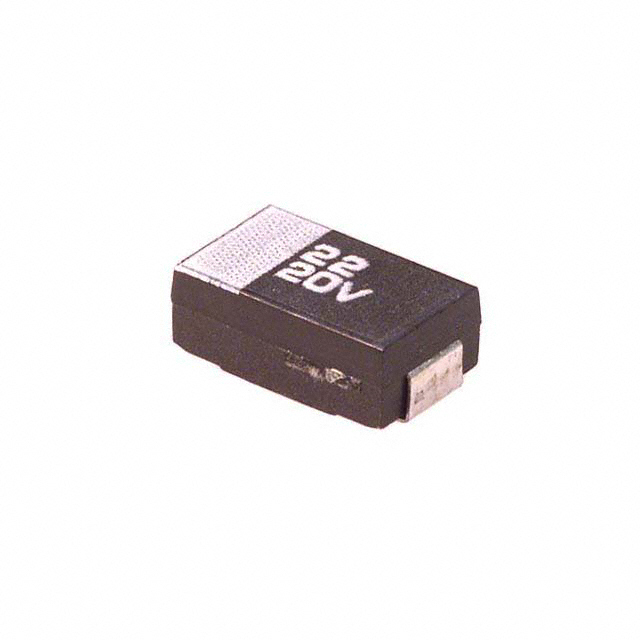

Panasonic Industrial Automation Sales ECS-T1DD226R			-55 °C	125 °C	20 V		4.3 mm		7.3 mm	Molded	22 µF	General Purpose	D	Surface Mount		7343 Metric	20 %	0.169 "	0.287 "				2917

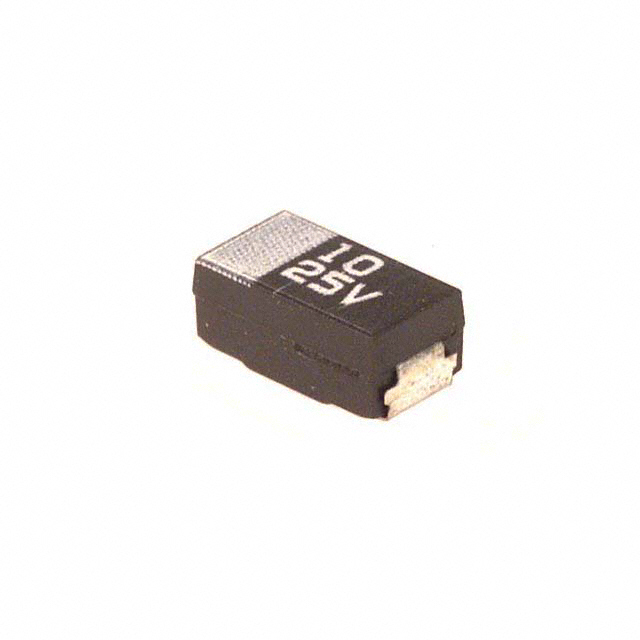

Panasonic Industrial Automation Sales ECS-T1EC106R	2.5 mm	0.098 in	-55 °C	125 °C	25 VDC	0.126 "	3.2 mm	0.236 in	6 mm	Molded	10 µF	General Purpose		Surface Mount	2312	6032 Metric	20 %

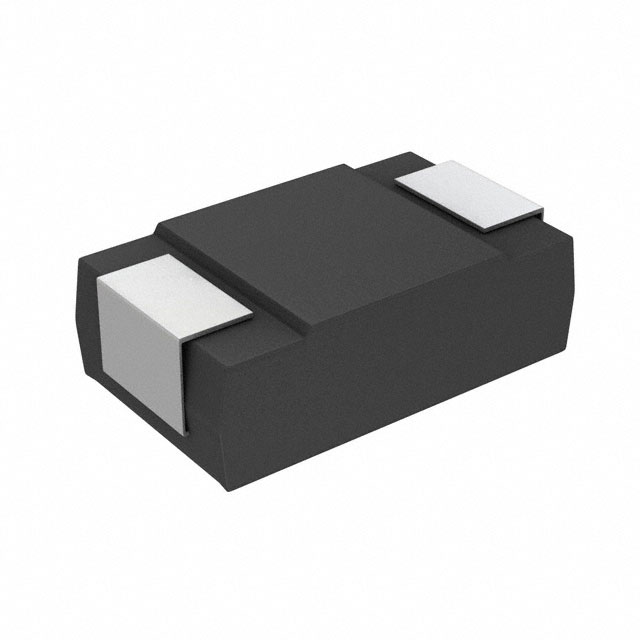

Panasonic Industrial Automation Sales ECS-T1AZ105R			-55 °C	125 °C	10 V	0.049 in	1.25 mm	0.079 in	2 mm	Molded	1 µF	General Purpose	Z	Surface Mount	0805		20 %			0.047 in		1.2 mm
