CAT5118 Series

Digital Potentiometer (POT), 32-Tap, with 2-Wire Interface

Catalog

Digital Potentiometer (POT), 32-Tap, with 2-Wire Interface

Part	Temperature Coefficient (Typ)	Mounting Type	Memory Type	Package / Case	Number of Circuits	Resistance (Ohms)	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Taper	Interface	Tolerance	Configuration	Resistance - Wiper (Ohms) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Resistance (Ohms)

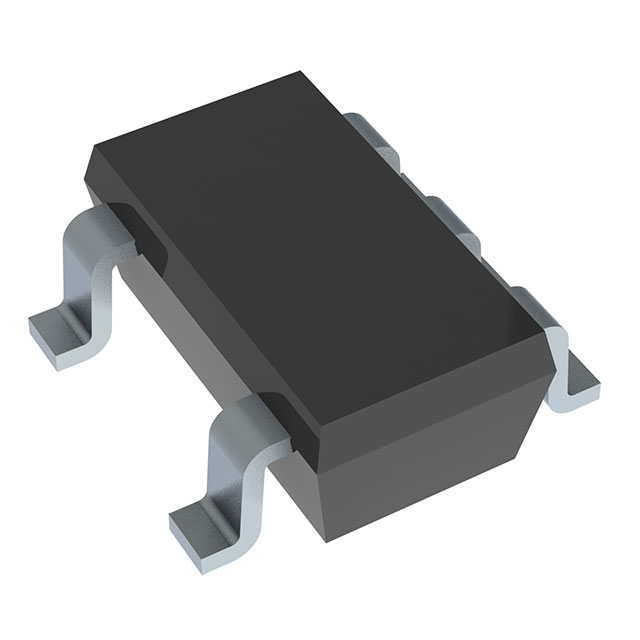

ON Semiconductor CAT5118TBI-00GT3	200 ppm/°C	Surface Mount	Volatile	SC-74A SOT-753	1	100 kOhms	2.7 V	5.5 V	SOT-23-5	Linear	Up/Down	20 %	Rheostat	200 Ohms	85 °C	-40 °C
ON Semiconductor CAT5118TBI-10GT3	200 ppm/°C	Surface Mount	Volatile	SC-74A SOT-753	1		2.7 V	5.5 V	SOT-23-5	Linear	Up/Down	20 %	Rheostat	200 Ohms	85 °C	-40 °C	10k
ON Semiconductor CAT5118TBI-10GT3	200 ppm/°C	Surface Mount	Volatile	SC-74A SOT-753	1		2.7 V	5.5 V	SOT-23-5	Linear	Up/Down	20 %	Rheostat	200 Ohms	85 °C	-40 °C	10k
ON Semiconductor CAT5118SDI-50GT3	200 ppm/°C	Surface Mount	Volatile	5-TSSOP SC-70-5 SOT-353	1	50 kOhms	2.7 V	5.5 V		Linear	Up/Down	20 %	Rheostat	200 Ohms	85 °C	-40 °C

Catalog

Digital Potentiometer (POT), 32-Tap, with 2-Wire Interface

Key Features

• 0.3 µA Ultra-low standby current

• Single-supply operation: 2.7 V to 5.5 V

• Glitchless switching between resistor taps

• Power-on reset to midscale

• 2-Wire up/down serial interface

• Resistance values: 10 kΩ, 50 kΩ and 100 kΩ

Description

The CAT5118 linear-taper digital POT performs the same function as a mechanical potentiometer or a variable resistor. This device consists of a fixed resistor and a wiper contact with 32-tap points that are digitally controlled through a 2-wire up/down serial interface. The CAT5118 is configured as a variable resistor. Three resistance values are available: 10 kΩ, 50 Ω, and 100 kΩ.
