1971798 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN HEADER VERT 2POS 2.5MM
| Part | Material Flammability Rating | Insulation Color | Contact Finish - Post | Fastening Type | Contact Material | Mounting Type | Number of Positions | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Insulation Material | Contact Type | Shrouding | Applications | Number of Positions Loaded | Number of Rows | Features | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Style | Contact Shape | Termination | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | UL94 V-0 | Natural | Tin | Latch Holder | Copper Alloy | Through Hole | 2 | 0.346 in | 8.8 mm | -30 ░C | 105 ░C | 50 V | Thermoplastic | Male Pin | Shrouded - 4 Wall | General Purpose | All | 1 | Board Guide | 2.5 mm | 0.098 in | Varies by Wire Gauge | Board to Cable/Wire | Square | Kinked Pin Solder | Header |
TE Connectivity Raychem Cable Protection | UL94 V-0 | Blue | Tin | Latch Holder | Copper Alloy | Through Hole | 0.346 in | 8.8 mm | -30 ░C | 105 ░C | 50 V | Thermoplastic | Male Pin | Shrouded - 4 Wall | General Purpose | All | 1 | Board Guide | 2.5 mm | 0.098 in | Varies by Wire Gauge | Board to Cable/Wire | Square | Kinked Pin Solder | Header | |
TE Connectivity Raychem Cable Protection | ||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | ||||||||||||||||||||||||||

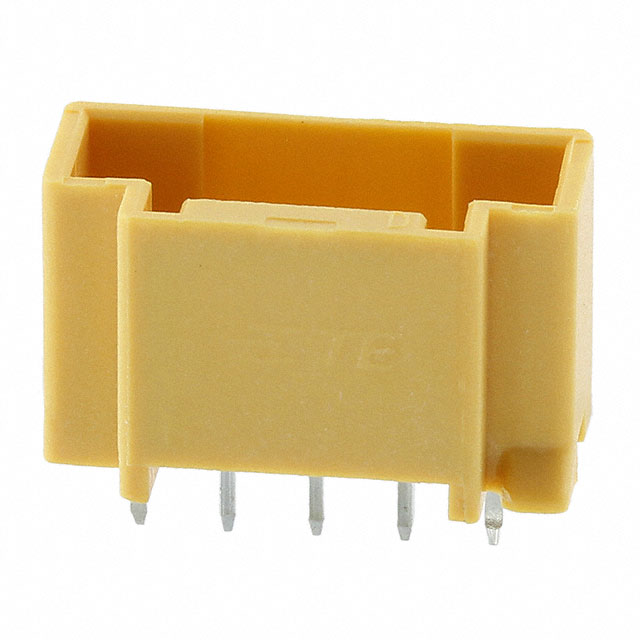

TE Connectivity Raychem Cable Protection | UL94 V-0 | Yellow | Tin | Latch Holder | Copper Alloy | Through Hole | 0.346 in | 8.8 mm | -30 ░C | 105 ░C | 50 V | Thermoplastic | Male Pin | Shrouded - 4 Wall | General Purpose | All | 1 | Board Guide | 2.5 mm | 0.098 in | Varies by Wire Gauge | Board to Cable/Wire | Square | Kinked Pin Solder | Header | |

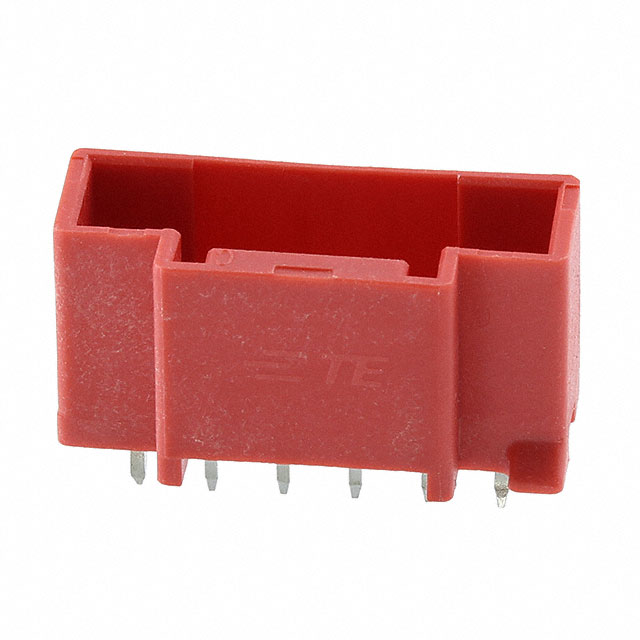

 TE Connectivity Raychem Cable Protection | UL94 V-0 | Red | Tin | Latch Holder | Copper Alloy | Through Hole | 6 | 0.346 in | 8.8 mm | -30 ░C | 105 ░C | 50 V | Thermoplastic | Male Pin | Shrouded - 4 Wall | General Purpose | All | 1 | Board Guide | 2.5 mm | 0.098 in | Varies by Wire Gauge | Board to Cable/Wire | Square | Kinked Pin Solder | Header |
 TE Connectivity Raychem Cable Protection | UL94 V-0 | Yellow | Tin | Latch Holder | Copper Alloy | Through Hole | 0.346 in | 8.8 mm | -30 ░C | 105 ░C | 50 V | Thermoplastic | Male Pin | Shrouded - 4 Wall | General Purpose | All | 1 | Board Guide | 2.5 mm | 0.098 in | Varies by Wire Gauge | Board to Cable/Wire | Square | Kinked Pin Solder | Header | |

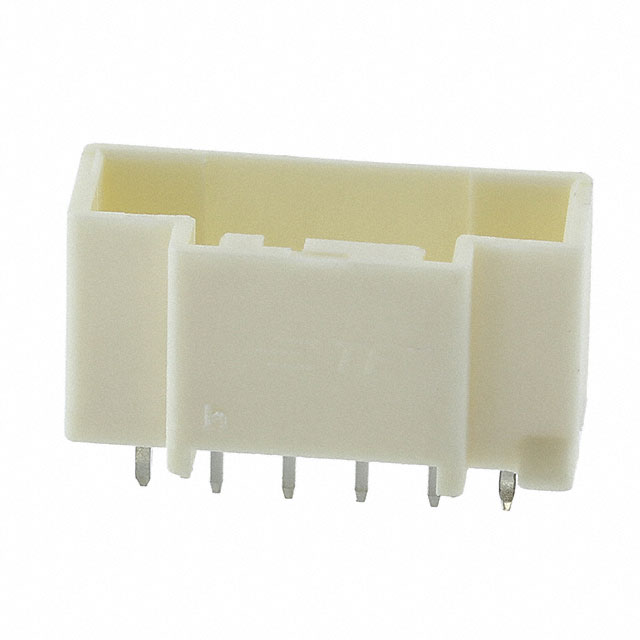

 TE Connectivity Raychem Cable Protection | UL94 V-0 | Natural | Tin | Latch Holder | Copper Alloy | Through Hole | 6 | 0.346 in | 8.8 mm | -30 ░C | 105 ░C | 50 V | Thermoplastic | Male Pin | Shrouded - 4 Wall | General Purpose | All | 1 | Board Guide | 2.5 mm | 0.098 in | Varies by Wire Gauge | Board to Cable/Wire | Square | Kinked Pin Solder | Header |
