451-10 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONN HEADER VERT 70POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Mounting Type | Current Rating (Amps) | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Shape | Number of Positions Loaded | Overall Contact Length | Overall Contact Length | Contact Length - Mating | Contact Length - Mating | Insulation Color | Fastening Type | Connector Type | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Type | Shrouding | Contact Material | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Finish - Mating | Material Flammability Rating | Insulation Material | Overall Contact Length [x] | Overall Contact Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | 10 Áin | 0.25 çm | 0.25 µm | 10 µin | 70 | Solder | 0.126 " | 3.2 mm | Through Hole | 3 A | 0.1 in | 2.54 mm | Circular | All | 1.079 in | 27.4 mm | 3 mm | 0.118 in | Black | Push-Pull | Header | 0.1 " | 2.54 mm | Gold | Male Pin | Unshrouded | Brass | 2 | -55 C | 125 °C | 150 VDC | Gold | UL94 V-0 | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | ||
Preci-Dip | 10 Áin | 0.25 çm | 0.25 µm | 10 µin | 66 | Solder | 0.126 " | 3.2 mm | Through Hole | 3 A | 0.1 in | 2.54 mm | Circular | All | 0.846 in | 21.5 mm | 3 mm | 0.118 in | Black | Push-Pull | Header | 0.1 " | 2.54 mm | Gold | Male Pin | Unshrouded | Brass | 2 | -55 C | 125 °C | 150 VDC | Gold | UL94 V-0 | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | ||
Preci-Dip | 10 Áin | 0.25 çm | 0.25 µm | 10 µin | 22 | Solder | 0.126 " | 3.2 mm | Through Hole | 3 A | 0.1 in | 2.54 mm | Circular | All | 0.846 in | 21.5 mm | 3 mm | 0.118 in | Black | Push-Pull | Header | 0.1 " | 2.54 mm | Gold | Male Pin | Unshrouded | Brass | 2 | -55 C | 125 °C | 150 VDC | Gold | UL94 V-0 | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | ||
Preci-Dip | 10 Áin | 0.25 çm | 0.25 µm | 10 µin | 44 | Solder | 0.126 " | 3.2 mm | Through Hole | 3 A | 0.1 in | 2.54 mm | Circular | All | 3 mm | 0.118 in | Black | Push-Pull | Header | 0.1 " | 2.54 mm | Gold | Male Pin | Unshrouded | Brass | 2 | -55 C | 125 °C | 150 VDC | Gold | UL94 V-0 | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 14.6 mm | 0.575 in | ||
Preci-Dip | 10 Áin | 0.25 çm | 0.25 µm | 10 µin | 36 | Solder | 0.126 " | 3.2 mm | Through Hole | 3 A | 0.1 in | 2.54 mm | Circular | All | 0.488 in | 12.4 mm | 3 mm | 0.118 in | Black | Push-Pull | Header | 0.1 " | 2.54 mm | Gold | Male Pin | Unshrouded | Brass | 2 | -55 C | 125 °C | 150 VDC | Gold | UL94 V-0 | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | ||
Preci-Dip | 10 Áin | 0.25 çm | 0.25 µm | 10 µin | 38 | Solder | 0.126 " | 3.2 mm | Through Hole | 3 A | 0.1 in | 2.54 mm | Circular | All | 0.488 in | 12.4 mm | 3 mm | 0.118 in | Black | Push-Pull | Header | 0.1 " | 2.54 mm | Gold | Male Pin | Unshrouded | Brass | 2 | -55 C | 125 °C | 150 VDC | Gold | UL94 V-0 | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | ||

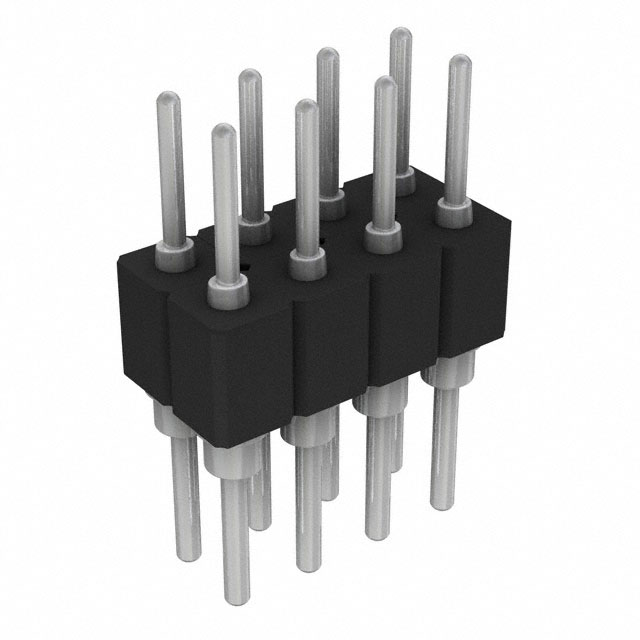

 Preci-Dip | 10 Áin | 0.25 çm | 0.25 µm | 10 µin | 8 | Solder | 0.126 " | 3.2 mm | Through Hole | 3 A | 0.1 in | 2.54 mm | Circular | All | 3 mm | 0.118 in | Black | Push-Pull | Header | 0.1 " | 2.54 mm | Gold | Male Pin | Unshrouded | Brass | 2 | -55 C | 125 °C | 150 VDC | Gold | UL94 V-0 | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 14.6 mm | 0.575 in | ||

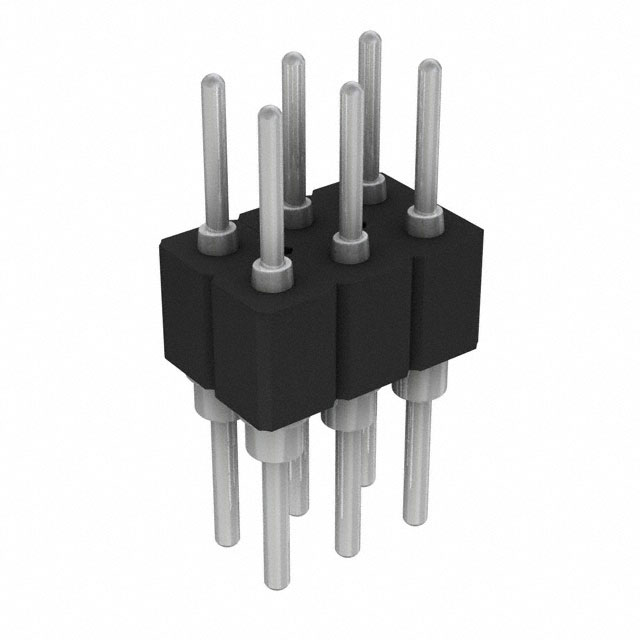

 Preci-Dip | 10 Áin | 0.25 çm | 0.25 µm | 10 µin | 6 | Solder | 0.126 " | 3.2 mm | Through Hole | 3 A | 0.1 in | 2.54 mm | Circular | All | 0.488 in | 12.4 mm | 3 mm | 0.118 in | Black | Push-Pull | Header | 0.1 " | 2.54 mm | Gold | Male Pin | Unshrouded | Brass | 2 | -55 C | 125 °C | 150 VDC | Gold | UL94 V-0 | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | ||
Preci-Dip | 10 Áin | 0.25 çm | 0.25 µm | 10 µin | 70 | Solder | 0.126 " | 3.2 mm | Through Hole | 3 A | 0.1 in | 2.54 mm | Circular | All | 0.846 in | 21.5 mm | 3 mm | 0.118 in | Black | Push-Pull | Header | 0.1 " | 2.54 mm | Gold | Male Pin | Unshrouded | Brass | 2 | -55 C | 125 °C | 150 VDC | Gold | UL94 V-0 | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | ||
Preci-Dip | 10 Áin | 0.25 çm | 0.25 µm | 10 µin | 8 | Solder | 0.126 " | 3.2 mm | Through Hole | 3 A | 0.1 in | 2.54 mm | Circular | All | 1.079 in | 27.4 mm | 3 mm | 0.118 in | Black | Push-Pull | Header | 0.1 " | 2.54 mm | Gold | Male Pin | Unshrouded | Brass | 2 | -55 C | 125 °C | 150 VDC | Gold | UL94 V-0 | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester |
