227426 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

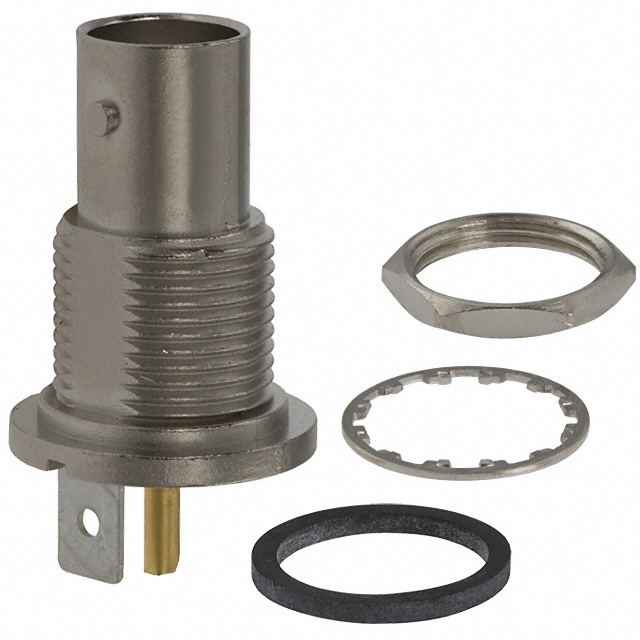

CONN BNC RCPT STR 50 OHM SOLDER
| Part | Connector Type | Connector Style | Fastening Type | Body Finish | Mounting Feature | Frequency - Max [Max] | Includes | Dielectric Material | Mating Cycles | Number of Ports | Shield Termination | Impedance | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Contact Termination | Center Contact Plating | Body Material | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Female Socket Jack | BNC | Bayonet Lock | Nickel | Bulkhead - Front Side Nut | 4 GHz | 1 Connector 1 Gasket 1 Lockwasher 1 Nut | Polymethylpentene (PMP) | 500 | 1 | Solder | 50 Ohms | 500 V | -65 ░C | 165 °C | Silver | Solder Cup | Gold | Zinc | Phosphor Bronze |
