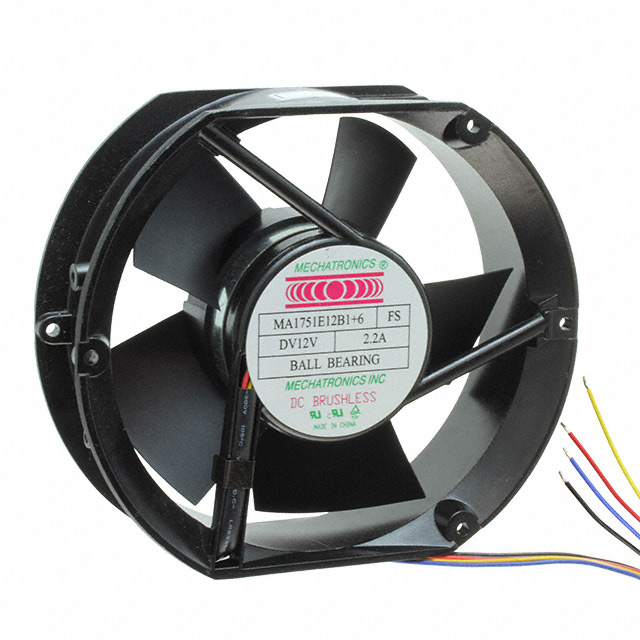

MA1751 Series

Catalog

FAN AXIAL 172X50.8MM 24VDC WIRE

Part	Material - Blade	Material - Frame	Current Rating (Amps)	Width [y]	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Bearing Type	Fan Type	Air Flow	Air Flow	Static Pressure	Static Pressure	Voltage - Rated	Approval Agency	Noise	Weight	Weight	Features	RPM	Termination	Ingress Protection

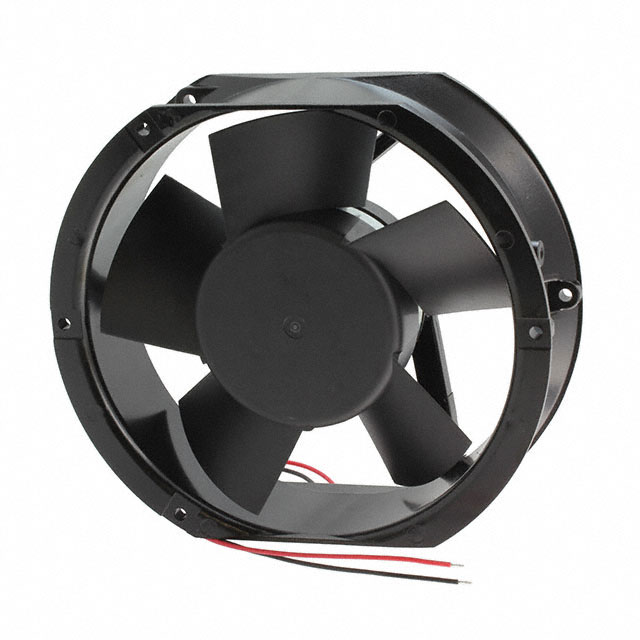

Mechatronics Fan Group MA1751X24B-FSR	Polybutylene Terephthalate (PBT)	Aluminum	1.2 A	50.8 mm	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	8.14 m³/min	290.6 CFM	194.3 Pa	0.78 in H2O	24 VDC	cUL TUV UL	63 dB	1.7 lbs	771.1 g	Thermal Overload Protector (TOP)	3400 RPM	2 Wire Leads

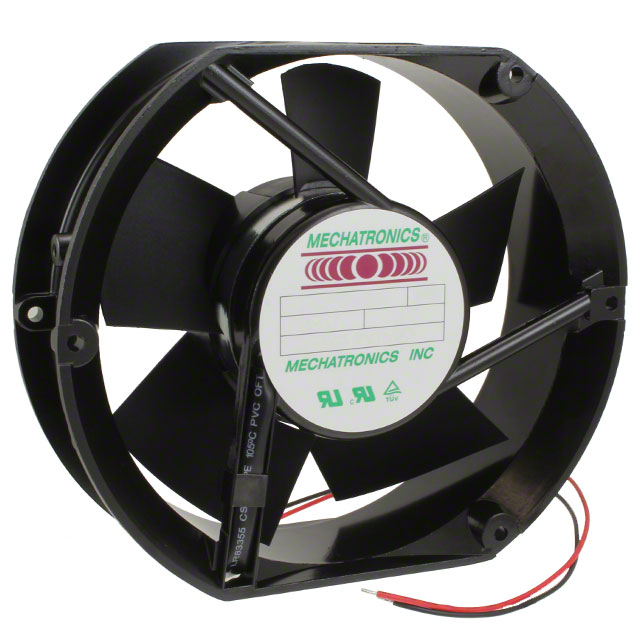

Mechatronics Fan Group MA1751H48B-FSR	Polybutylene Terephthalate (PBT)	Aluminum	0.38 A	50.8 mm	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	6.82 mł/min	243.6 CFM	137 Pa	0.55 in H2O	48 VDC	cUL TUV UL	58.4 dB(A)	1.7 lbs	771.1 g	Thermal Overload Protector (TOP)	2850 RPM	2 Wire Leads
Mechatronics Fan Group MA1751E12B1+6-FSR-EM	Polybutylene Terephthalate (PBT)	Aluminum	2.2 A	50.8 mm	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	7.54 mł/min	269.2 CFM	166.9 Pa	0.67 in H2O	12 VDC	cUL TUV UL	61 dB(A)	1.7 lbs	771.1 g	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	3150 RPM	4 Wire Leads	IP57 - Dust Protected Waterproof

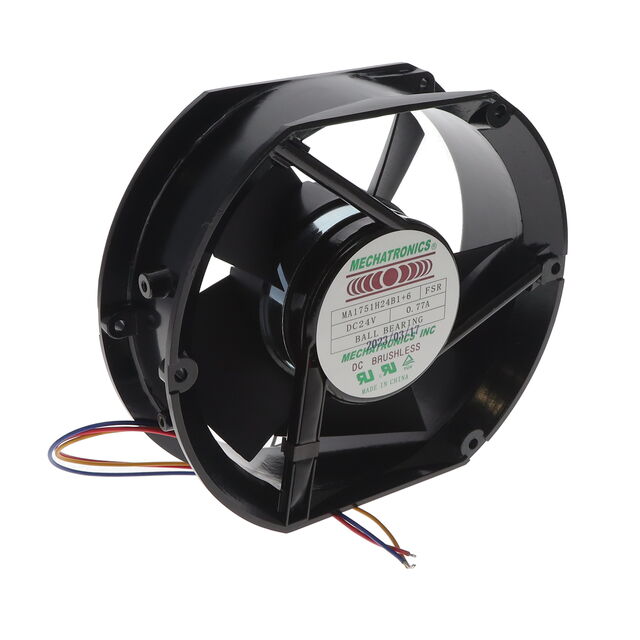

Mechatronics Fan Group MA1751H24B1+6-FSR	Polybutylene Terephthalate (PBT)	Aluminum	770 mA	50.8 mm	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	6.82 mł/min	243.6 CFM	137 Pa	0.55 in H2O	24 VDC	cUL TUV UL	58.4 dB(A)	1.7 lbs	771.1 g	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	2850 RPM	4 Wire Leads
Mechatronics Fan Group MA1751X24B-FSR-CC	Polybutylene Terephthalate (PBT)	Aluminum	1.2 A	50.8 mm	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	8.14 m³/min	290.6 CFM	194.3 Pa	0.78 in H2O	24 VDC	cUL TUV UL	63 dB	1.7 lbs	771.1 g	Conformal Coating Thermal Overload Protector (TOP)	3400 RPM	2 Wire Leads

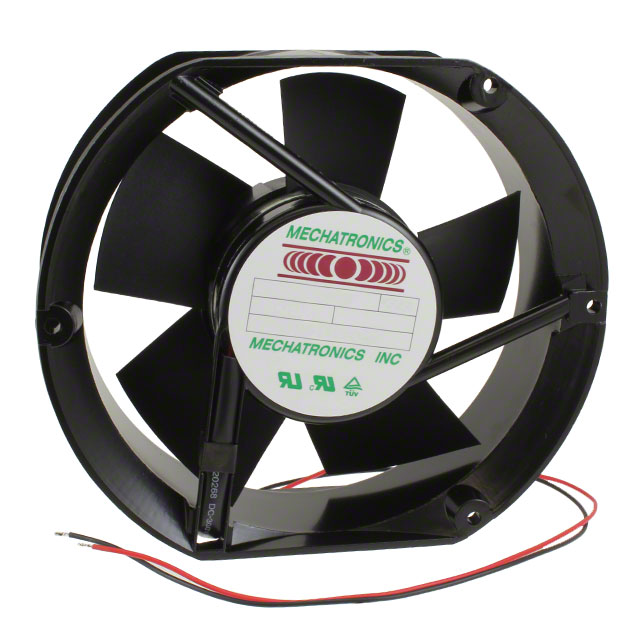

Mechatronics Fan Group MA1751E12B-FSR	Polybutylene Terephthalate (PBT)	Aluminum	2.2 A	50.8 mm	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	7.54 mł/min	269.2 CFM	166.9 Pa	0.67 in H2O	12 VDC	cUL TUV UL	61 dB(A)	1.7 lbs	771.1 g	Thermal Overload Protector (TOP)	3150 RPM	2 Wire Leads
Mechatronics Fan Group MA1751E48B2-FSR-TTL	Polybutylene Terephthalate (PBT)	Aluminum	0.55 A	50.8 mm	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	7.54 mł/min	269.2 CFM	166.9 Pa	0.67 in H2O	48 VDC	cUL TUV UL	61 dB(A)	1.7 lbs	771.1 g	Locked Rotor Sensor Thermal Overload Protector (TOP)	3150 RPM	3 Wire Leads
Mechatronics Fan Group MA1751L12B-FSR	Polybutylene Terephthalate (PBT)	Aluminum	1.1 A	50.8 mm	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	5.74 m³/min	205 CFM	97.1 Pa	0.39 in H2O	12 VDC	cUL TUV UL	54.5 dB	1.7 lbs	771.1 g	Thermal Overload Protector (TOP)	2400 RPM	2 Wire Leads
Mechatronics Fan Group MA1751E24B-FSR	Polybutylene Terephthalate (PBT)	Aluminum	0.98 A	50.8 mm	Rectangular/Rounded	150 mm	172 mm	Ball	Tubeaxial	7.54 mł/min	269.2 CFM	166.9 Pa	0.67 in H2O	24 VDC	cUL TUV UL	61 dB(A)	1.7 lbs	771.1 g	Thermal Overload Protector (TOP)	3150 RPM	2 Wire Leads
