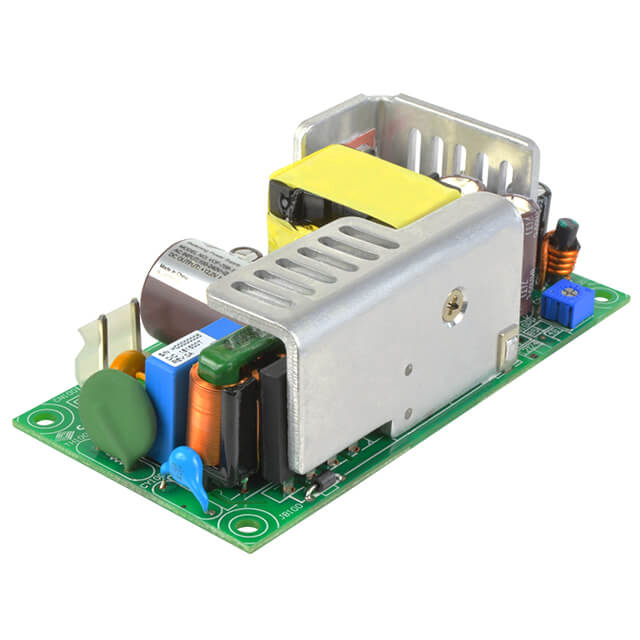

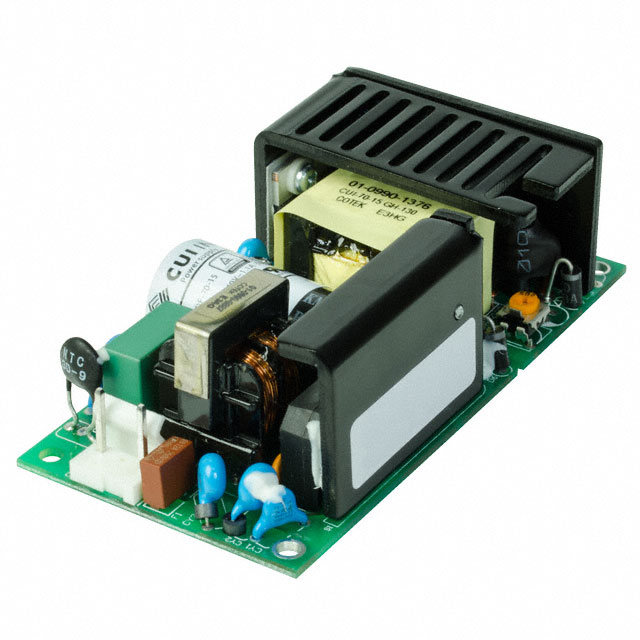

VOF-70 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 24V 70W
| Part | Standard Number | Current - Output 1 | Features | Efficiency | Applications | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Approval Agency | Type | Mounting Type | Voltage - Isolation | Number of Outputs | Voltage - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | 2.92 A | Universal Input | 89 % | ITE (Commercial) | 1.24 " | 50.8 mm | 101.6 mm | 2 in | 4 " | 31.6 mm | 70 °C | -20 °C | 70 W | CB Scheme CE EN FCC IEC SIQ TUV UL | Open Frame | Chassis Mount | 3000 V | 1 | 24 V | 264 VAC | 90 VAC |
CUI Inc. | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | 5.84 A | Universal Input | 87 % | ITE (Commercial) | 1.24 " | 50.8 mm | 101.6 mm | 2 in | 4 " | 31.6 mm | 70 °C | -20 °C | 70 W | CB Scheme CE EN FCC IEC SIQ TUV UL | Open Frame | Chassis Mount | 3000 V | 1 | 12 V | 264 VAC | 90 VAC |
CUI Inc. | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | 1.46 A | Universal Input | 89 % | ITE (Commercial) | 1.24 " | 50.8 mm | 101.6 mm | 2 in | 4 " | 31.6 mm | 70 °C | -20 °C | 70 W | CB Scheme CE EN FCC IEC SIQ TUV UL | Open Frame | Chassis Mount | 3000 V | 1 | 48 V | 264 VAC | 90 VAC |
 CUI Inc. | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61204-3 | 8.61 A | Adjustable Output Universal Input | 81 % | ITE (Commercial) | 1.32 in | 50.8 mm | 101.6 mm | 2 in | 4 " | 33.6 mm | 60 °C | -20 °C | 43 W | CB Scheme EN FCC IEC SIQ TUV UL | Open Frame | Chassis Mount | 3000 V | 1 | 5 V | 277 VAC | 90 VAC |
CUI Inc. | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61204-3 | 3 A | Adjustable Output Universal Input | 88 % | ITE (Commercial) | 1.32 in | 50.8 mm | 101.6 mm | 2 in | 4 " | 33.6 mm | 60 °C | -20 °C | 70 W | CB Scheme EN FCC IEC SIQ TUV UL | Open Frame | Chassis Mount | 3000 V | 1 | 24 V | 277 VAC | 90 VAC |
CUI Inc. | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61204-3 | 5.9 A | Adjustable Output Universal Input | 87 % | ITE (Commercial) | 1.32 in | 50.8 mm | 101.6 mm | 2 in | 4 " | 33.6 mm | 60 °C | -20 °C | 70 W | CB Scheme EN FCC IEC SIQ TUV UL | Open Frame | Chassis Mount | 3000 V | 1 | 12 V | 277 VAC | 90 VAC |
CUI Inc. | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61204-3 | 1.5 A | Adjustable Output Universal Input | 90 % | ITE (Commercial) | 1.32 in | 50.8 mm | 101.6 mm | 2 in | 4 " | 33.6 mm | 60 °C | -20 °C | 70 W | CB Scheme EN FCC IEC SIQ TUV UL | Open Frame | Chassis Mount | 3000 V | 1 | 48 V | 277 VAC | 90 VAC |
