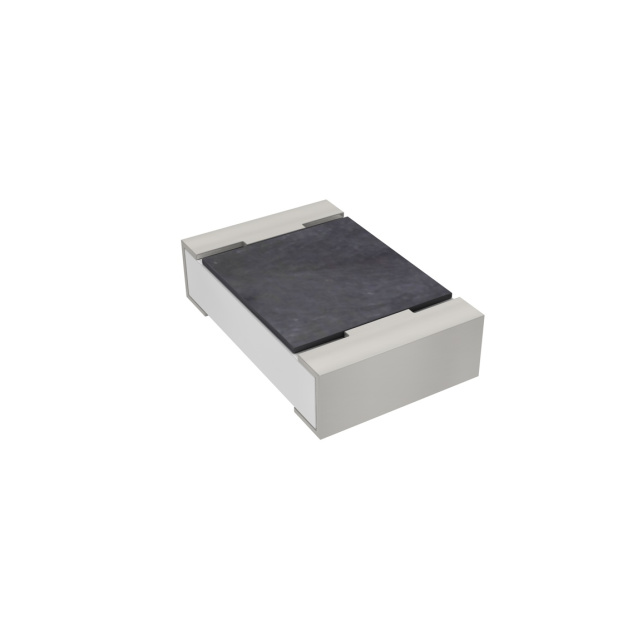

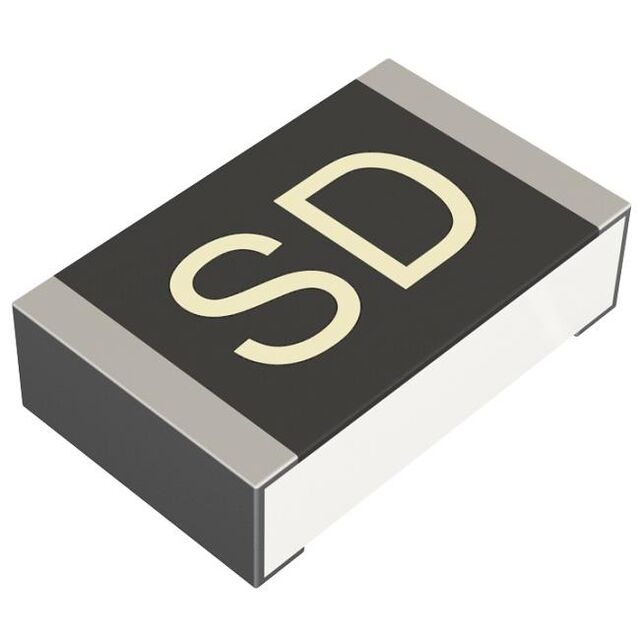

SDR10EZPF Series
Manufacturer: Rohm Semiconductor
Beta
⌘K
HIGH ANTI-SURGE THICK FILM CHIP
| Part | Power (Watts) | Power (Watts) | Ratings | Number of Terminations [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Resistance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Composition | Tolerance | Temperature Coefficient | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 0.5 W 0.667 W | 0.5 W 0.6666666666666666 W | AEC-Q200 | 2 | 155 C | -55 C | Automotive AEC-Q200 Pulse Withstanding | 43 Ohms | 2 mm | 1.25 mm | 0.049 " | 0.079 in | 0805 | 0.026 in | 0.65 mm | Thick Film | 1 % | 100 ppm/°C | 0805 |
Rohm Semiconductor | 0.5 W 0.667 W | 0.5 W 0.6666666666666666 W | AEC-Q200 | 2 | 155 C | -55 C | Automotive AEC-Q200 Pulse Withstanding | 100 Ohms | 2 mm | 1.25 mm | 0.049 " | 0.079 in | 0805 | 0.026 in | 0.65 mm | Thick Film | 1 % | 100 ppm/°C | 0805 |
 Rohm Semiconductor |
