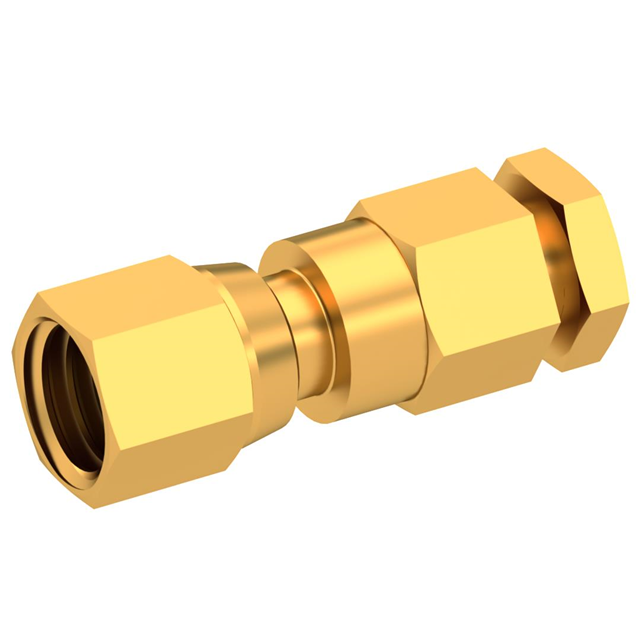

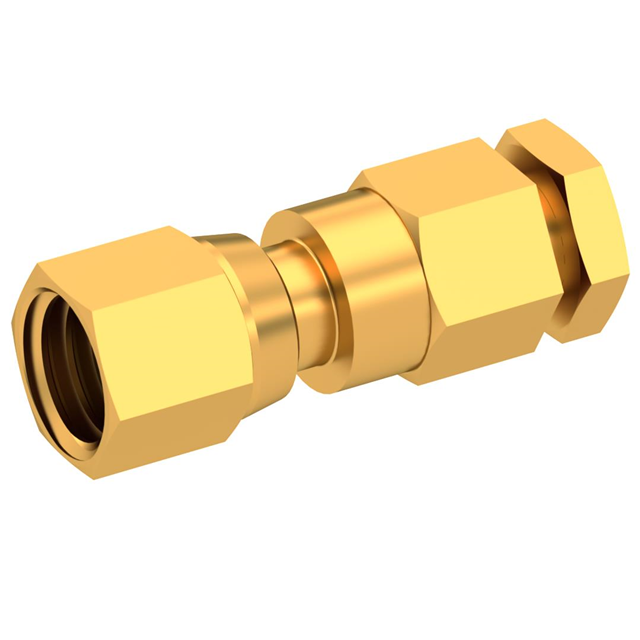

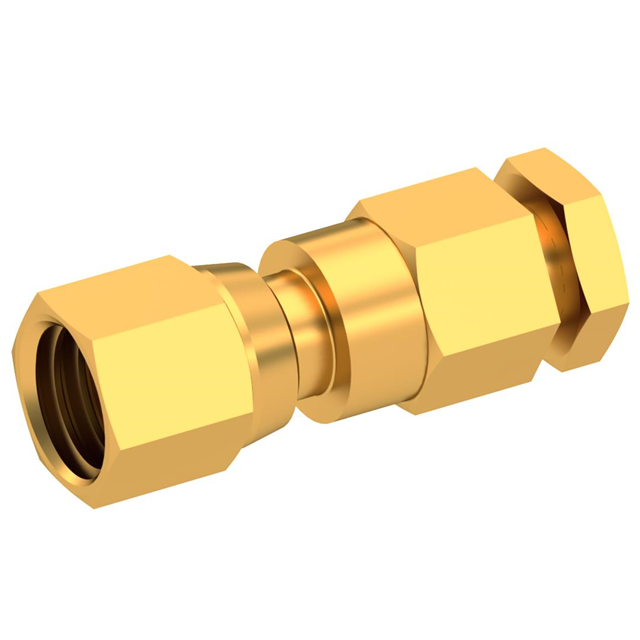

1002-1551 Series
Manufacturer: Radiall USA, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SMC M STR NA CL 2.6/50S
| Part | Mating Cycles | Operating Temperature (Min) | Operating Temperature (Max) | Body Finish | Dielectric Material | Body Material | Voltage Rating | Insertion Loss | Center Contact Plating | Connector Type | Connector Style | Frequency - Max | Housing Color | Center Contact Material | Impedance | Mounting Type | Cable Group | Shield Termination | Fastening Type | Number of Ports | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 cycles | -65 °C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 335 V | 0.25 dB | Gold | Female Socket Plug | SMC | 10 GHz | Gold | Beryllium Copper | 50 Ohm | Free Hanging (In-Line) | 179 316 RG-174 | Clamp | Threaded | 1 | Solder |
 Radiall USA, Inc. | 500 cycles | -65 °C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 250 V | 0.25 dB | Gold | Female Socket Plug | SMC | 10 GHz | Gold | Beryllium Copper | 50 Ohm | Free Hanging (In-Line) | 196 RG-178 | Clamp | Threaded | 1 | Solder |
 Radiall USA, Inc. | 500 cycles | -65 °C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 250 V | 0.25 dB | Gold | Female Socket Plug | SMC | 10 GHz | Gold | Beryllium Copper | 50 Ohm | Free Hanging (In-Line) | RG-316DS | Clamp | Threaded | 1 | Solder |
Radiall USA, Inc. | 500 cycles | -65 °C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 250 V | 0.25 dB | Gold | Female Socket Plug | SMC | 10 GHz | Gold | Beryllium Copper | 50 Ohm | Free Hanging (In-Line) | RG-178DS | Clamp | Threaded | 1 | Solder |
