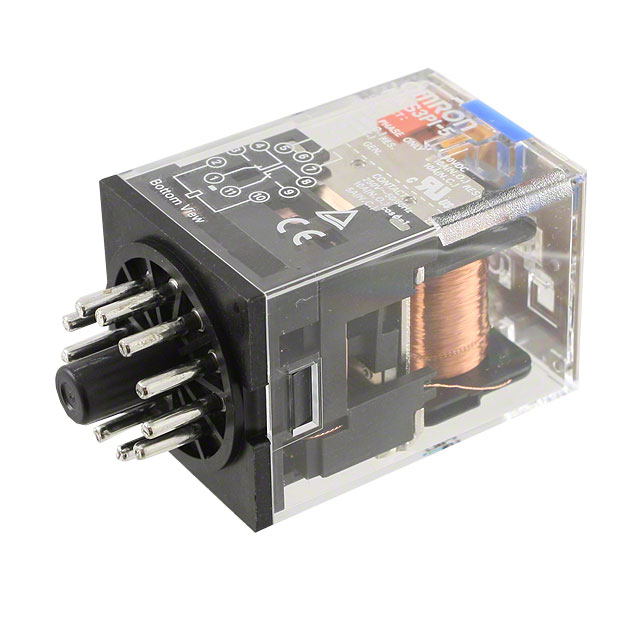

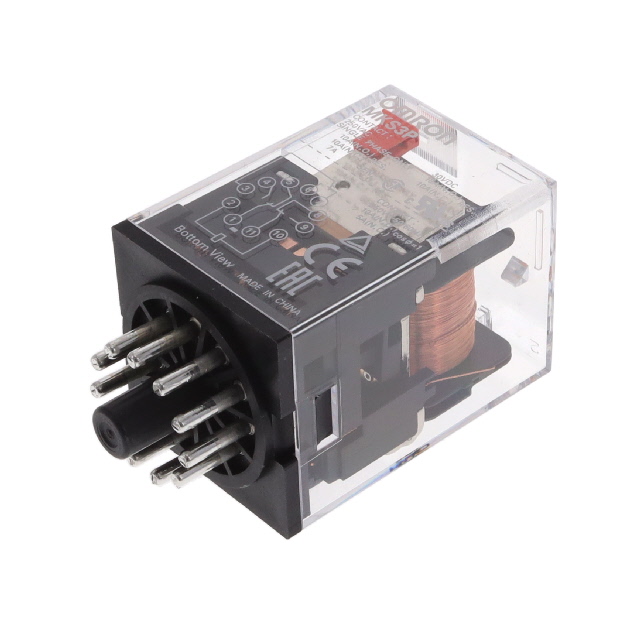

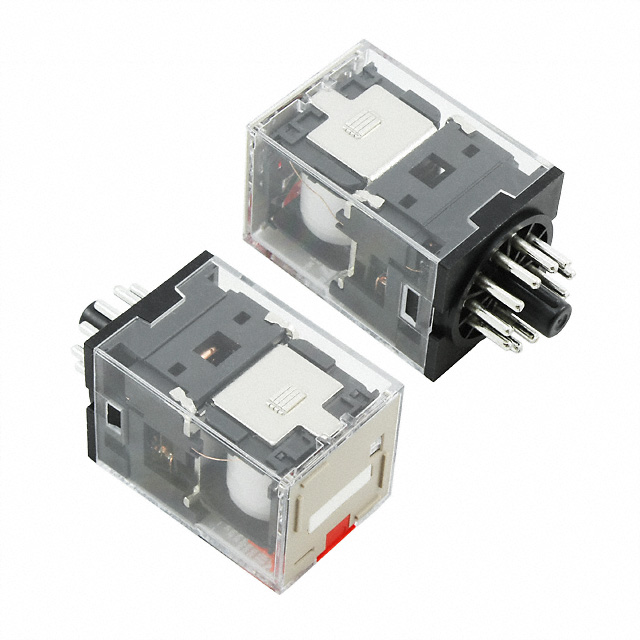

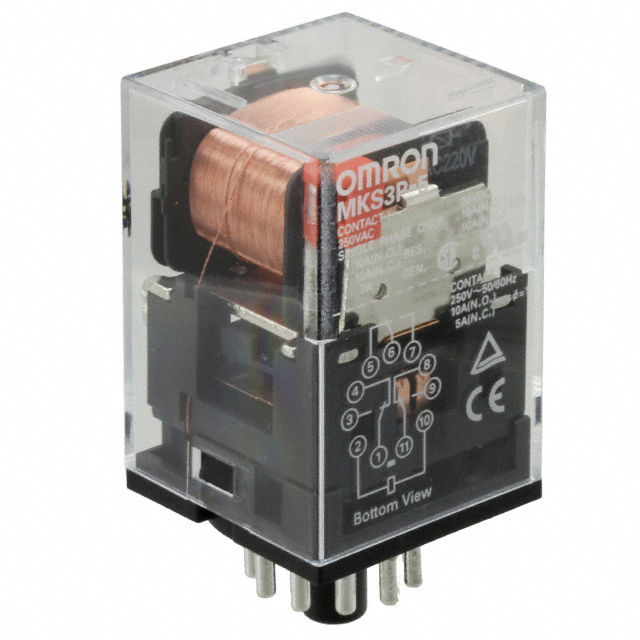

MKS3P Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE 3PDT 10A 48V
| Part | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Must Release Voltage | Contact Form | Approval Agency | Mounting Type | Load - Max Switching | Termination Style | Must Operate Voltage | Relay Type | Contact Rating (Current) | Coil Voltage | Features | Coil Current | Switching Voltage [Max] | Coil Type | Contact Material | Coil Resistance | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 20 ms | -40 °C | 60 °C | 30 ms | 7.2 VDC | 3PDT (3 Form C) | CSA cURus TUV | Socketable | 300 W 2500 VA | Plug In 11 Pin (Octal) | 38.4 VDC | General Purpose | 10 A | 48 VDC | Mechanical Indicator | 28.1 mA | 30 VDC 250 VAC | Non Latching | Silver Tin Indium (AgSnIn) | 1.71 kOhms | |
Omron Electronics Inc-EMC Div | -40 °C | 60 °C | 30 ms | 18.75 VDC | 3PDT (3 Form C) | CSA cURus TUV | Socketable | 300 W 2500 VA | Plug In 11 Pin (Octal) | 100 VDC | General Purpose | 10 A | 125 VDC | Diode Mechanical Indicator | 10.8 mA | Non Latching | Silver Tin Indium (AgSnIn) | 11.58 kOhms | 250 VAC 250 VDC | ||
Omron Electronics Inc-EMC Div | 20 ms | -40 °C | 60 °C | 20 ms | 1.8 VAC | 3PDT (3 Form C) | CSA cURus TUV | Socketable | 300 W 2500 VA | Plug In 11 Pin (Octal) | 4.8 VAC/DC | General Purpose | 10 A | 6 VAC | Mechanical Indicator Test Button Varistor | 385 mA | 30 VDC 250 VAC | Non Latching | Silver Tin Indium (AgSnIn) | 3.1 Ohms | |
 Omron Electronics Inc-EMC Div | 20 ms | -25 °C | 60 °C | 30 ms | 16.5 VDC | 3PDT (3 Form C) | CSA cURus TUV | Socketable | 300 W 2500 VA | Plug In 11 Pin (Octal) | 88 VDC | General Purpose | 10 A | 110 VDC | 12.3 mA | 30 VDC 250 VAC | Non Latching | Silver Tin Indium (AgSnIn) | |||
Omron Electronics Inc-EMC Div | 20 ms | -25 °C | 60 °C | 30 ms | 3.6 VDC | 3PDT (3 Form C) | CSA cURus TUV | Socketable | 300 W 2500 VA | Plug In 11 Pin (Octal) | 19.2 VDC | General Purpose | 10 A | 24 VDC | 30 VDC 250 VAC | Non Latching | Silver Tin Indium (AgSnIn) | 430 Ohms | |||
 Omron Electronics Inc-EMC Div | 20 ms | -40 °C | 60 °C | 20 ms | 33 VAC | 3PDT (3 Form C) | CSA cURus TUV | Socketable | 300 W 2500 VA | Plug In 11 Pin (Octal) | 88 VAC/DC | General Purpose | 10 A | 110 VAC/DC | Mechanical Indicator | 21 mA | 30 VDC 250 VAC | Non Latching | Silver Tin Indium (AgSnIn) | 932 Ohms | |
Omron Electronics Inc-EMC Div | 20 ms | -25 °C | 60 °C | 30 ms | 16.5 VDC | 3PDT (3 Form C) | CSA cURus TUV | Socketable | 300 W 2500 VA | Plug In 11 Pin (Octal) | 88 VDC | General Purpose | 10 A | 110 VDC | Lighted Indicator Mechanical Indicator | 12.3 mA | 30 VDC 250 VAC | Non Latching | Silver Tin Indium (AgSnIn) | ||
Omron Electronics Inc-EMC Div | 20 ms | -40 °C | 60 °C | 20 ms | 66 VAC | 3PDT (3 Form C) | CSA cURus TUV | Socketable | 300 W 2500 VA | Plug In 11 Pin (Octal) | 176 VAC | General Purpose | 10 A | 220 VAC/DC | Mechanical Indicator | 10.5 mA | 30 VDC 250 VAC | Non Latching | Silver Tin Indium (AgSnIn) | 3.55 kOhms | |
Omron Electronics Inc-EMC Div | 20 ms | -25 °C | 60 °C | 20 ms | 66 VAC | 3PDT (3 Form C) | CSA cURus TUV | Socketable | 300 W 2500 VA | Plug In 11 Pin (Octal) | 176 VAC | General Purpose | 10 A | 220 VAC/DC | 10.5 mA | 30 VDC 250 VAC | Non Latching | Silver Tin Indium (AgSnIn) | 3.55 kOhms | ||
 Omron Electronics Inc-EMC Div | 20 ms | -40 °C | 60 °C | 30 ms | 16.5 VDC | 3PDT (3 Form C) | CSA cURus TUV | Socketable | 300 W 2500 VA | Plug In 11 Pin (Octal) | 88 VDC | General Purpose | 10 A | 110 VDC | 12.3 mA | 30 VDC 250 VAC | Non Latching | Silver Tin Indium (AgSnIn) |
