AR 32-HZ Series

Catalog

CONN IC DIP SOCKET 32POS GOLD

Part	Current Rating (Amps)	Material Flammability Rating	Contact Resistance	Contact Finish - Mating	Housing Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post	Features	Mounting Type	Pitch - Post	Pitch - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Termination	Number of Positions or Pins (Grid)	Type [custom]	Type [custom]	Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Mating	Termination Post Length	Termination Post Length

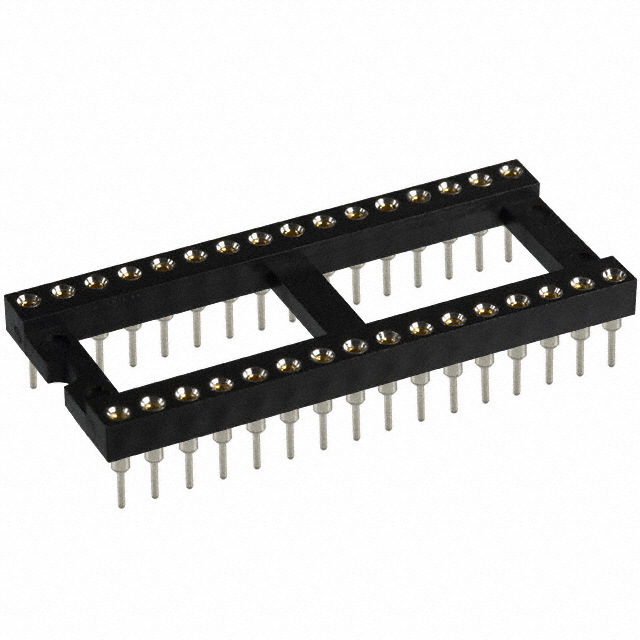

Assmann WSW Components AR 32-HZL/01-TT	3 A	UL94 V-0	4 mOhm	Gold	Polyester Thermoplastic	200 µin	5.08 µm	Beryllium Copper	Open Frame	Through Hole	0.1 in	2.54 mm	0.1 "	2.54 mm	Tin	Solder	32	15.24 mm	0.6 in	DIP	0.25 µm	10 µin	-40 C	105 ░C	Beryllium Copper

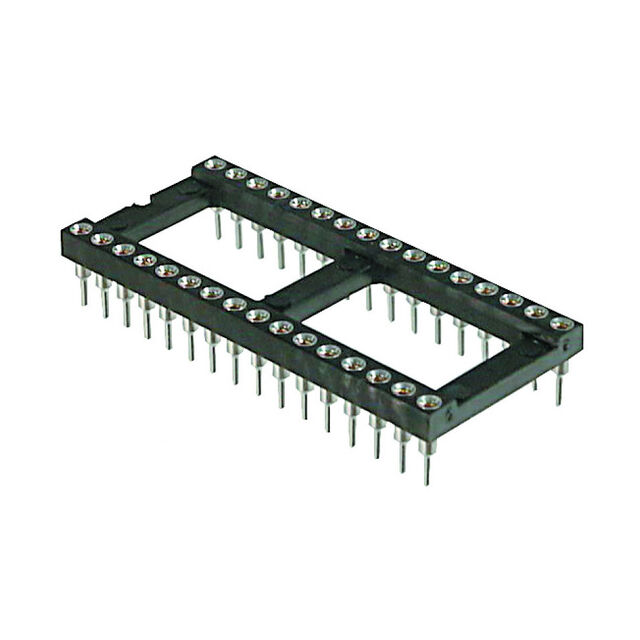

Assmann WSW Components AR 32-HZL-TT	3 A	UL94 V-0	4 mOhm		Polybutylene Terephthalate (PBT) Glass Filled	200 µin	5.08 µm	Beryllium Copper	Open Frame	Through Hole	0.1 in	2.54 mm	0.1 "	2.54 mm	Tin	Solder	32	15.24 mm	0.6 in	DIP			-40 C	105 ░C	Beryllium Copper	0.11 in	2.78 mm
