AX01R080 Series

Catalog

RIGID SIDE B2B CONNECTOR, 80 POS

Part	Connector Type	Pitch	Pitch	Number of Positions	Number of Rows [custom]	Height Above Board [z]	Height Above Board [z]	Mounting Type	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights [Min]	Mated Stacking Heights [Max]

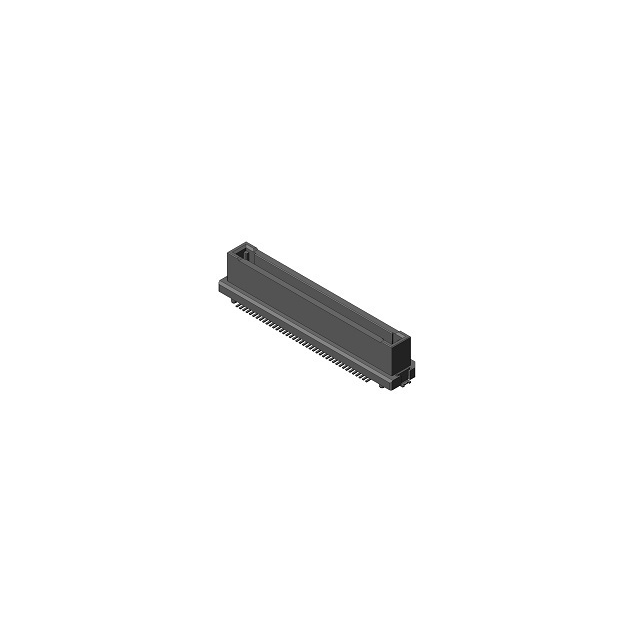

JAE Electronics AX01R080VABBR600	Plug Outer Shroud Contacts	0.64 mm	0.025 in	80	2	6.6 mm	0.26 in	Surface Mount	Gold	Board Guide Solder Retention	0.1 Ám	4 Áin

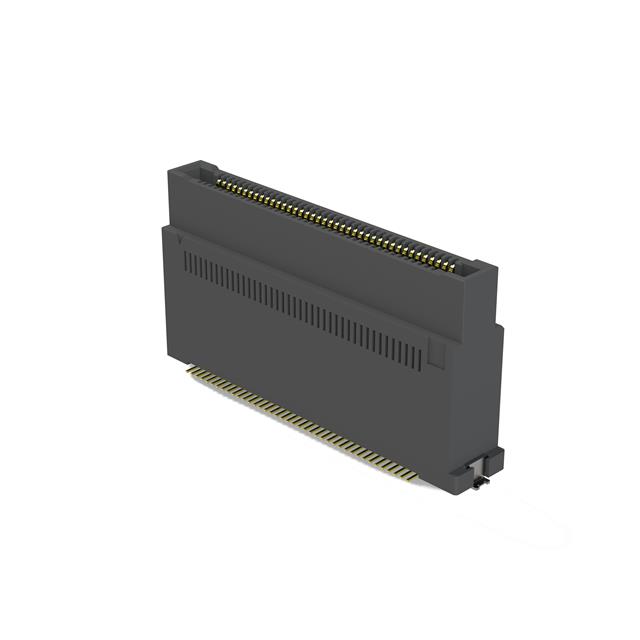

JAE Electronics AX01R080VANBR200	Plug Outer Shroud Contacts	0.64 mm	0.025 in	80	2	16.6 mm	0.654 in	Surface Mount	Gold	Board Guide	0.1 Ám	4 Áin	8 mm	30 mm
