AB25AP Series

Catalog

SWITCH PUSH BUTTON ON (ON) DPDT ROUND PLUNGER 0.1A 28VAC 28VDC 0.4VA MOMENTARY THRU-HOLE PC PINS

Part	Mechanical Life	Electrical Life	Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Color - Actuator/Cap	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Mounting Type	Voltage Rating - DC	Actuator Marking	Actuator Type	Features
NKK Switches AB25AP-FA	50000 Cycles	50000 Cycles	Standard	PC Pin	85 °C	-30 ░C	DPDT	Black	0.4 VA	28 V	On-Mom	Through Hole	28 V	No Marking	Button Round	Sealed - Fully

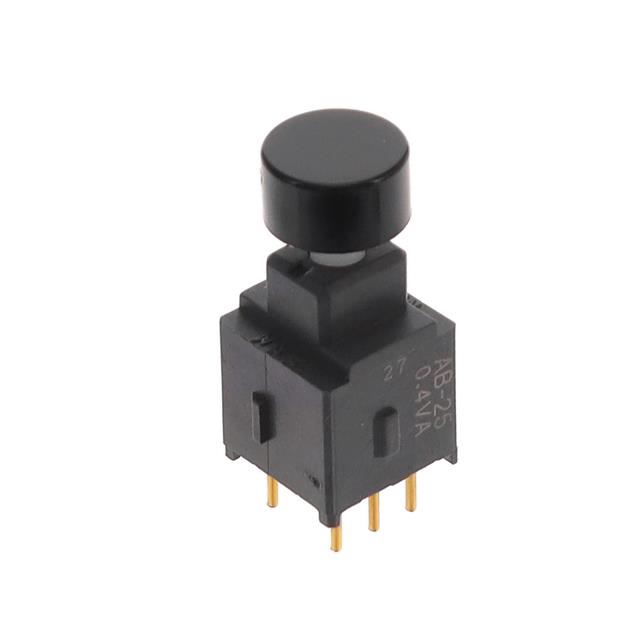

NKK Switches AB25AP-HA	50000 Cycles	50000 Cycles	Standard	PC Pin	85 °C	-30 ░C	DPDT	Black	0.4 VA	28 V	On-Mom	Through Hole	28 V	No Marking	Button Round	Sealed - Fully

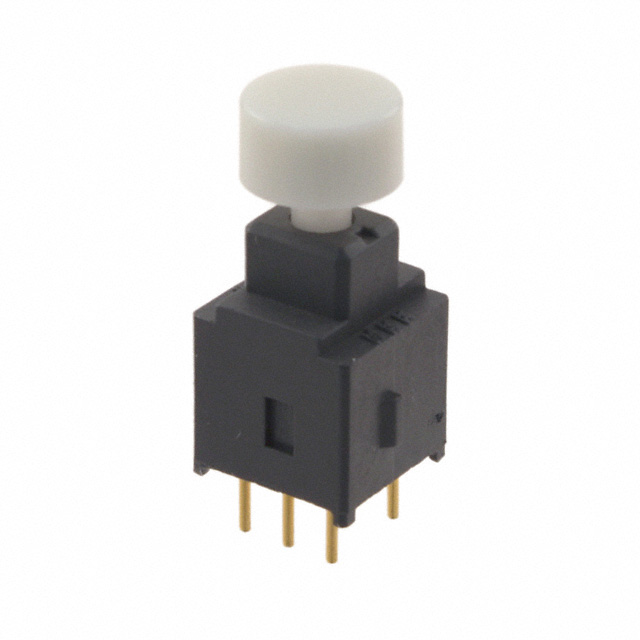

NKK Switches AB25AP-HB	50000 Cycles	50000 Cycles	Standard	PC Pin	85 °C	-30 ░C	DPDT	White	0.4 VA	28 V	On-Mom	Through Hole	28 V	No Marking	Button Round	Sealed - Fully

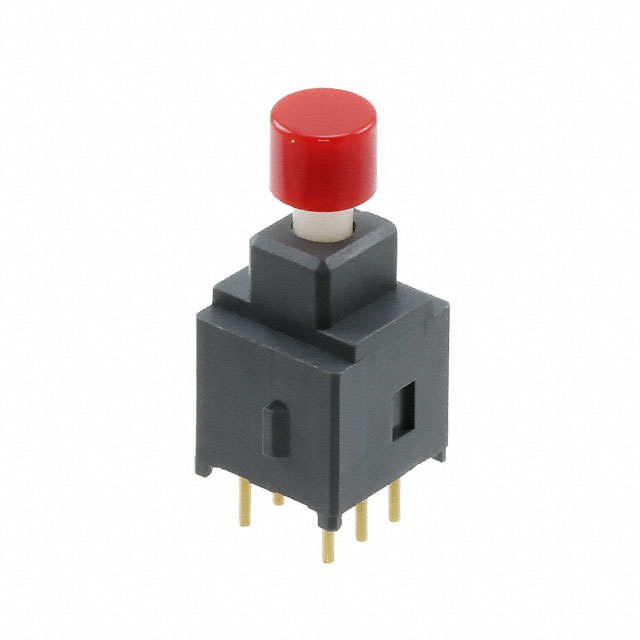

NKK Switches AB25AP-FC	50000 Cycles	50000 Cycles	Standard	PC Pin	85 °C	-30 ░C	DPDT	Red	0.4 VA	28 V	On-Mom	Through Hole	28 V	No Marking	Button Round	Sealed - Fully
NKK Switches AB25AP-HC	50000 Cycles	50000 Cycles	Standard	PC Pin	85 °C	-30 ░C	DPDT	Red	0.4 VA	28 V	On-Mom	Through Hole	28 V	No Marking	Button Round	Sealed - Fully
