45152 Series

Catalog

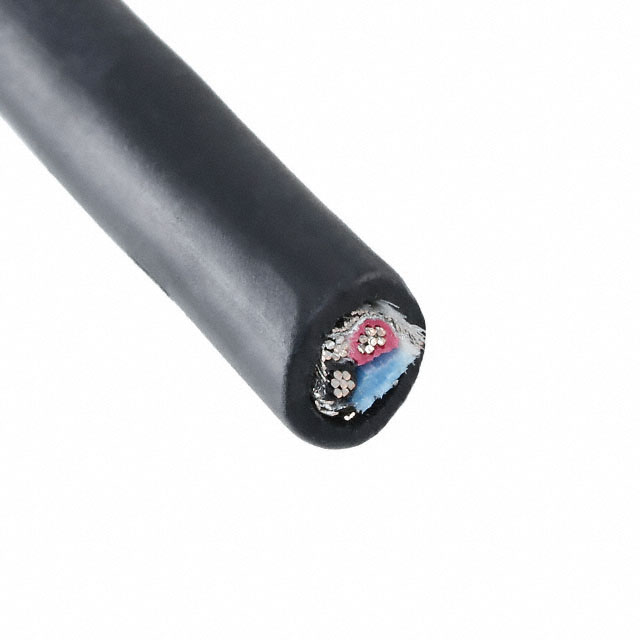

MULTI-CONDUCTOR CABLES 20 AWG 2 CONDUCTOR 300V SUPRASHIELD, TPE SPOOL BLACK PER FT

Part	Shield Coverage	Shield Type	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Features	Jacket Color	Conductor Insulation	Conductor Insulation	Shield Material	Spool Size [x]	Spool Size [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Cable Type	Ratings	Voltage	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness [custom]	Conductor Material	Length [x]	Length [x]	Length	Length
ALPHA WIRE 45152 BK199	70 % 100 %	Braid Foil	20 AWG	125 °C	-50 °C	2	Biological Compatibility Drain Wire Rip Cord	Black	TPE	Thermoplastic Elastomer	Copper Tinned Suprashield®	304.8 m	1000 ft	28 AWG	7	6.65 mm	0.262 in	Enter Number of Feet in Order Quantity	Multi-Conductor	ISO 10993	300 VDC	Thermoplastic Elastomer (TPE)	1.143 mm	0.045 in	Copper Tinned
ALPHA WIRE 45152 BK005	70 % 100 %	Braid Foil	20 AWG	125 °C	-50 °C	2	Biological Compatibility Drain Wire Rip Cord	Black	TPE	Thermoplastic Elastomer	Copper Tinned Suprashield®			28 AWG	7	6.65 mm	0.262 in		Multi-Conductor	ISO 10993	300 VDC	Thermoplastic Elastomer (TPE)	1.143 mm	0.045 in	Copper Tinned	100 ft	30.5 m
ALPHA WIRE 45152 BK001	70 % 100 %	Braid Foil	20 AWG	125 °C	-50 °C	2	Biological Compatibility Drain Wire Rip Cord	Black	TPE	Thermoplastic Elastomer	Copper Tinned Suprashield®			28 AWG	7	6.65 mm	0.262 in	Enter Number of Feet in Order Quantity	Multi-Conductor	ISO 10993	300 VDC	Thermoplastic Elastomer (TPE)	1.143 mm	0.045 in	Copper Tinned			304.8 m	1000 ft
ALPHA WIRE 45152 SL199	70 % 100 %	Braid Foil	20 AWG	125 °C	-50 °C	2	Biological Compatibility Drain Wire Rip Cord	Slate	TPE	Thermoplastic Elastomer	Copper Tinned Suprashield®			28 AWG	7	6.65 mm	0.262 in		Multi-Conductor	ISO 10993	300 VDC	Thermoplastic Elastomer (TPE)	1.143 mm	0.045 in	Copper Tinned			304.8 m	1000 ft
