CABLE 272 Series
Manufacturer: GCT
Beta
⌘K

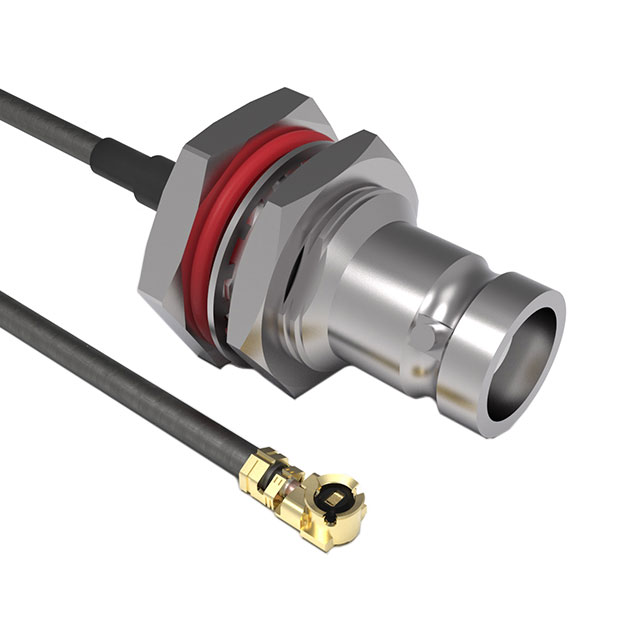

CBL ASY IPEX MHF1-BNC J-P 5.906"
| Part | 2nd Connector | Ingress Protection | Length | Length | Style | Frequency - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | 2nd Connector Mounting Type | Overall Impedance | 1st Connector Mounting Feature | Features | Cable Impedance | 1st Connector | Cable Type | 1st Contact Gender | 2nd Contact Gender | 1st Connector Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IPEX MHF1 Plug Right Angle | IP67/IP68 | 150 mm | 5.906 in | IPEX MHF1 to BNC | 3 GHz | 80 °C | -20 ░C | Free Hanging (In-Line) | 50 Ohms | Bulkhead - Front Side Nut | IP Rated Unmated | 50 Ohms | BNC Jack | RG-174 | Female | Female | Panel Mount | Black | |
I-PEX MHF1 Plug Right Angle | IP67/IP68 | 100 mm | 3.937 in | I-PEX MHF1 to BNC | 3 GHz | 80 °C | -20 ░C | Free Hanging (In-Line) | 50 Ohms | Bulkhead - Front Side Nut | IP Rated Unmated | 50 Ohms | BNC Jack | RG-174 | Female | Female | Panel Mount | Black | |
I-PEX MHF1 Plug Right Angle | IP67/IP68 | 150 mm | 5.906 in | I-PEX MHF1 to BNC | 3 GHz | 80 °C | -20 ░C | Free Hanging (In-Line) | 50 Ohms | Bulkhead - Front Side Nut | IP Rated Unmated | 50 Ohms | BNC Jack | RG-174 | Female | Female | Panel Mount | Black | |
IPEX MHF1 Plug Right Angle | IP67/IP68 | 100 mm | 3.937 in | IPEX MHF1 to BNC | 3 GHz | 80 °C | -20 ░C | Free Hanging (In-Line) | 50 Ohms | Bulkhead - Front Side Nut | IP Rated Unmated | 50 Ohms | BNC Jack | RG-174 | Female | Female | Panel Mount | Black |
