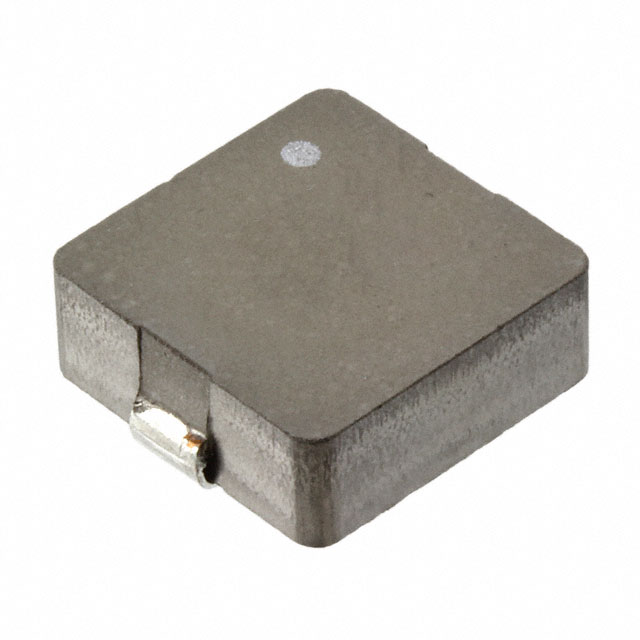

MPC1250 Series
Manufacturer: KEMET
Beta
⌘K
FIXED IND 360NH 38A 0.65MOHM SMD
| Part | Tolerance | Inductance | DC Resistance (DCR) | Current - Saturation (Isat) | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Material - Core | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance Frequency - Test | Shielding | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 20 % | 360 nH | 0.65 mOhm | 40 A | 38 A | 14.5 mm | 12.5 mm | 0.571 in | 0.492 " | Surface Mount | Ferrite | 120 °C | -20 ░C | 0.197 in | 5 mm | 100 kHz | Shielded | 2-SMD J-Lead |
