LM3433 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC LED DRIVER CTRLR PWM 24WQFN
| Part | Topology | Dimming | Voltage - Supply (Max) [Max] | Voltage - Supply (Min) [Min] | Number of Outputs | Internal Switch(s) | Supplier Device Package | Frequency | Mounting Type | Package / Case | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Type | Features | Outputs and Type | Outputs and Type | Current - Output / Channel [custom] | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Step-Down (Buck) | PWM | 5.8 V | 3 V | 1 | 24-WQFN (4x4) | 1 MHz | Surface Mount | 24-WFQFN Exposed Pad | Backlight | -40 °C | 125 ¯C | DC DC Controller | |||||||||

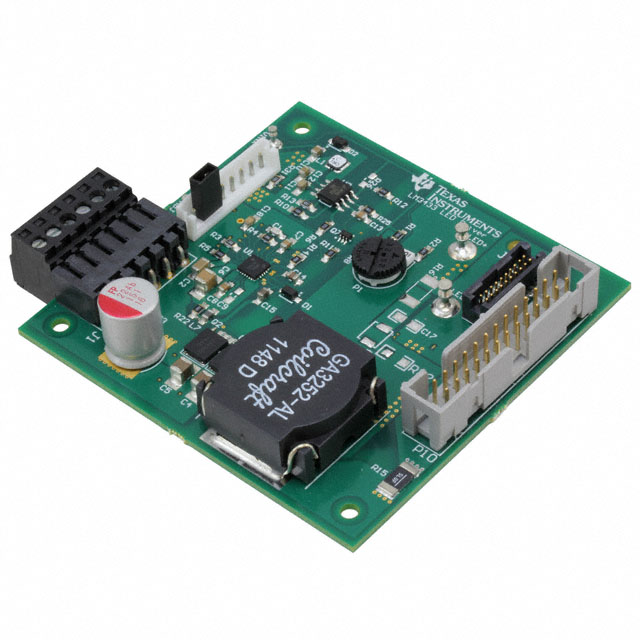

 Texas Instruments | Dimmable | Non-Isolated | 1 | 20 A | LM3433 | -9 V | -14 V | Board(s) | ||||||||||||||
Texas Instruments | Step-Down (Buck) | PWM | 5.8 V | 3 V | 1 | 24-WQFN (4x4) | 1 MHz | Surface Mount | 24-WFQFN Exposed Pad | Backlight | -40 °C | 125 ¯C | DC DC Controller |
