DE1B3RB Series

Catalog

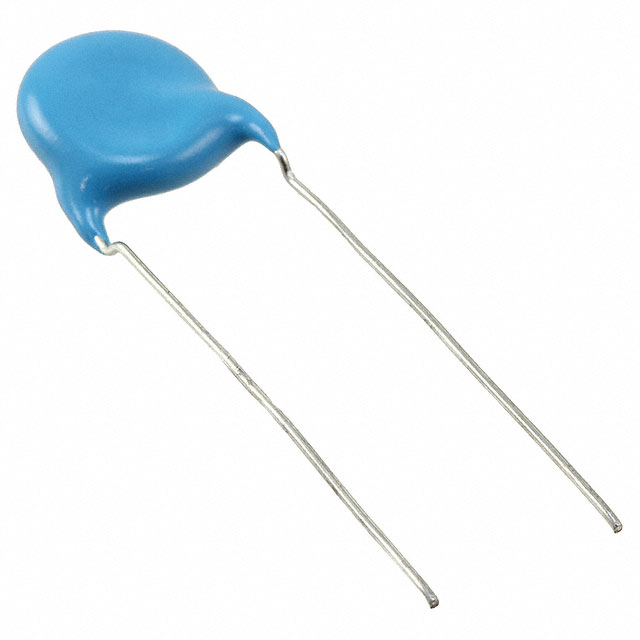

CAP CER 150PF 500V RADIAL

Part	Tolerance	Mounting Type	Lead Spacing	Lead Spacing	Temperature Coefficient	Ratings [custom]	Ratings [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Lead Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Murata Electronics DE1B3RB151KN4AR01F	10 %	Through Hole	0.394 in	10 mm	B	X1	Y1	11 mm	0.433 in	Safety	150 pF	0.315 in	8 mm	Disc Radial	Straight	125 °C	-40 C	500 VAC/DC
Murata Electronics DE1B3RB331KJ4BR01F	10 %	Through Hole	0.394 in	10 mm	B	X1	Y1			Safety	330 pF	0.276 in	7 mm	Disc Radial	Straight	125 °C	-40 C	500 VAC/DC	10 mm	0.394 in
Murata Electronics DE1B3RB681KJ4BR01F	10 %	Through Hole	0.394 in	10 mm	B	X1	Y1			Safety	680 pF	0.354 in	9 mm	Disc Radial	Straight	125 °C	-40 C	500 VAC/DC		0.472 in	12 mm
Murata Electronics DE1B3RB151KJ4BR01F	10 %	Through Hole	0.394 in	10 mm	B	X1	Y1	11 mm	0.433 in	Safety	150 pF	0.315 in	8 mm	Disc Radial	Straight	125 °C	-40 C	500 VAC/DC
Murata Electronics DE1B3RB221KN4AR01F	10 %	Through Hole	0.394 in	10 mm	B	X1	Y1			Safety	220 pF	0.236 in	6 mm	Disc Radial	Straight	125 °C	-40 C	500 VAC/DC	9 mm	0.354 in
Murata Electronics DE1B3RB681KN4AR01F	10 %	Through Hole	0.394 in	10 mm	B	X1	Y1			Safety	680 pF	0.354 in	9 mm	Disc Radial	Straight	125 °C	-40 C	500 VAC/DC		0.472 in	12 mm
Murata Electronics DE1B3RB221KA4BR01F	10 %	Through Hole	0.394 in	10 mm	B	X1	Y1			Safety	220 pF	0.236 in	6 mm	Disc Radial	Straight	125 °C	-40 C	500 VAC/DC	9 mm	0.354 in
Murata Electronics DE1B3RB101KJ4BR01F	10 %	Through Hole	0.394 in	10 mm	B	X1	Y1			Safety	100 pF	0.236 in	6 mm	Disc Radial	Straight	125 °C	-40 C	500 VAC/DC	9 mm	0.354 in
