845-074 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 74POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Read Out	Features	Mounting Type	Color	Number of Rows [custom]	Card Type	Contact Finish	Termination	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Contact Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Material	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 845-074-556-503	Diallyl Phthalate (DAP)	2	Dual	Card Extender	Board Edge Straddle Mount	Green	2	Non Specified - Dual Edge	Gold	Solder	Female	125 °C	-40 C	37	74	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Copper Alloy	0.25 Ám	10 Áin
EDAC Inc. 845-074-542-212	Diallyl Phthalate (DAP)	2	Dual		Through Hole	Green	2	Non Specified - Dual Edge	Gold	Wire Wrap	Female	125 °C	-40 C	37	74	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	0.25 Ám	10 Áin

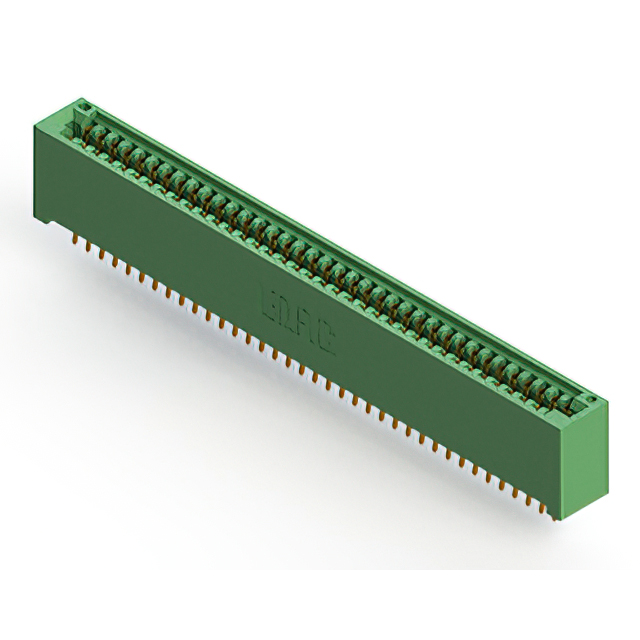

EDAC Inc. 845-074-556-201	Diallyl Phthalate (DAP)	2	Dual	Card Extender	Board Edge Straddle Mount	Green	2	Non Specified - Dual Edge	Gold	Solder	Female	125 °C	-40 C	37	74	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever				Copper Alloy	0.25 Ám	10 Áin

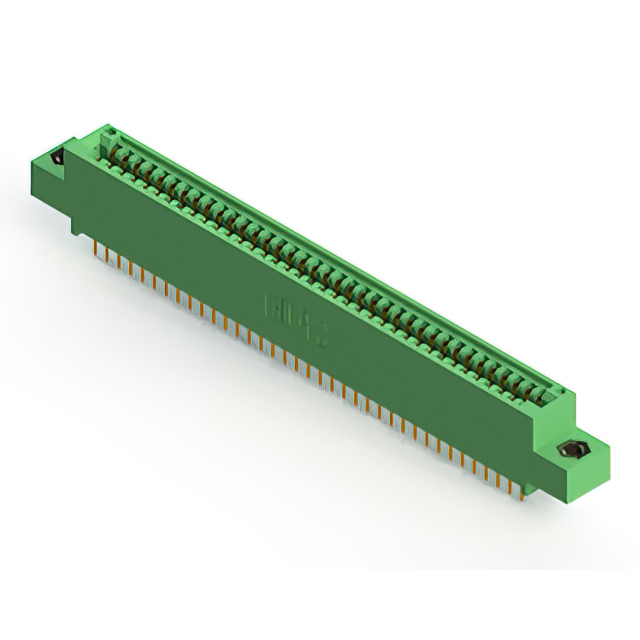

EDAC Inc. 845-074-525-507	Diallyl Phthalate (DAP)	2	Dual		Through Hole	Green	2	Non Specified - Dual Edge	Gold	Solder	Female	125 °C	-40 C	37	74	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever	M3 Threaded Insert Top Mount Opening			Copper Alloy	0.25 Ám	10 Áin
EDAC Inc. 845-074-521-807	Diallyl Phthalate (DAP)	2	Dual		Through Hole	Green	2	Non Specified - Dual Edge	Gold	Solder	Female	125 °C	-40 C	37	74	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever	M3 Threaded Insert Top Mount Opening			Copper Alloy	0.25 Ám	10 Áin
EDAC Inc. 845-074-520-808	Diallyl Phthalate (DAP)	2	Dual		Through Hole	Green	2	Non Specified - Dual Edge	Gold	Solder	Female	125 °C	-40 C	37	74	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever	4-40 Threaded Insert Top Mount Opening			Copper Alloy	0.25 Ám	10 Áin
EDAC Inc. 845-074-520-807	Diallyl Phthalate (DAP)	2	Dual		Through Hole	Green	2	Non Specified - Dual Edge	Gold	Solder	Female	125 °C	-40 C	37	74	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever	M3 Threaded Insert Top Mount Opening			Copper Alloy	0.25 Ám	10 Áin
EDAC Inc. 845-074-523-208	Diallyl Phthalate (DAP)	2	Dual		Through Hole	Green	2	Non Specified - Dual Edge	Gold	Solder	Female	125 °C	-40 C	37	74	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	0.25 Ám	10 Áin

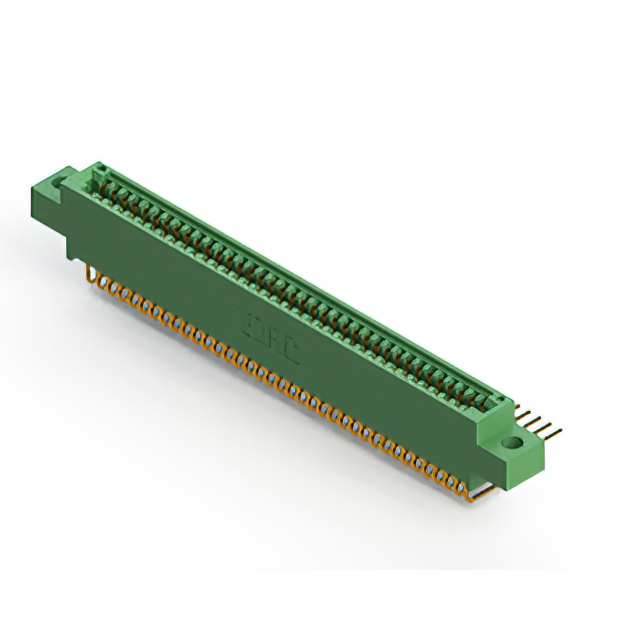

EDAC Inc. 845-074-559-804	Diallyl Phthalate (DAP)	2	Dual		Right Angle Through Hole	Green	2	Non Specified - Dual Edge	Gold	Solder	Female	125 °C	-40 C	37	74	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever		0.156 "	3.96 mm	Copper Alloy	0.25 Ám	10 Áin

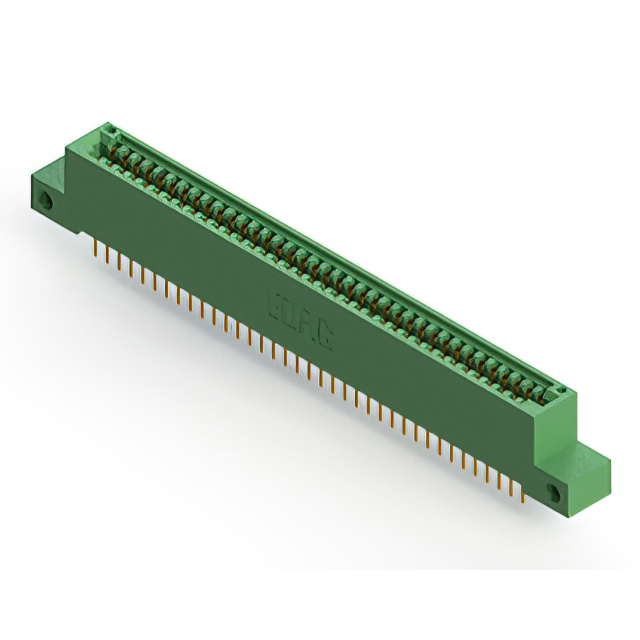

EDAC Inc. 845-074-524-212	Diallyl Phthalate (DAP)	2	Dual		Through Hole	Green	2	Non Specified - Dual Edge	Gold	Solder	Female	125 °C	-40 C	37	74	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Cantilever	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	0.25 Ám	10 Áin
