Js0 Series Series

Sub-Miniature Slide Switch Slide Switches DP3T THRU HOLE .3A

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sub-Miniature Slide Switch Slide Switches DP3T THRU HOLE .3A

Part	Actuator Length [x]	Current Rating (Amps)	Switch Travel	Actuator Type	Electrical Life	Voltage Rating - DC	Contact Material	Actuator Material	Mounting Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Timing	Termination Style	Circuit	Switch Function
Littelfuse/Commercial Vehicle Products JS102011JCBN	2 mm	300 mA	2 mm	Standard	5000 Steps	6 V	Copper Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Gold	85 °C	-40 °C	Not Specified	J Lead	SPDT	On-On
Littelfuse/Commercial Vehicle Products JS207011CQNR	2 mm	300 mA	2 mm	Standard	5000 Steps	6 V	Copper Alloy	Nylon 4/6 Polyamide (PA46)	Through Hole	Silver	85 °C	-40 °C	Not Specified	PC Pin	DP3T	On-On-Mom

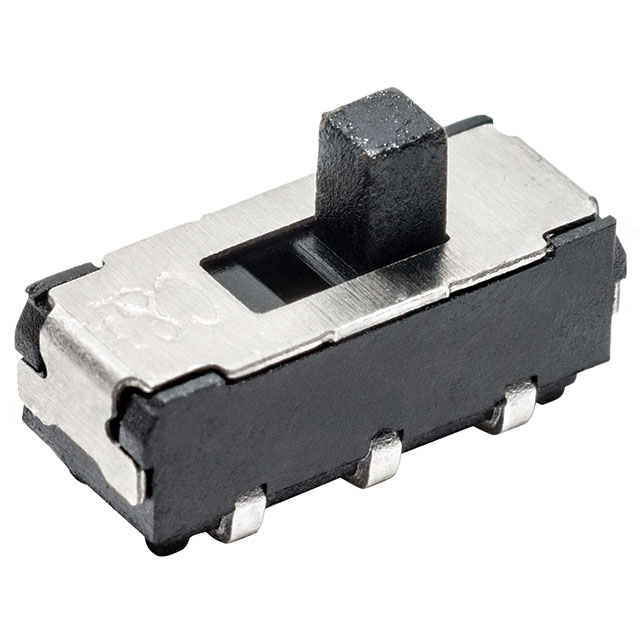

Littelfuse/Commercial Vehicle Products JS202011JCQN	2 mm	300 mA	2 mm	Standard	5000 Steps	6 V	Copper Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Silver	85 °C	-40 °C	Not Specified	J Lead	DPDT	On-On
Littelfuse/Commercial Vehicle Products JS102011CQN		300 mA	2 mm	Standard	5000 Steps	6 V	Copper Alloy	Nylon 4/6 Polyamide (PA46)	Through Hole	Silver	85 °C	-40 °C	Not Specified	PC Pin	SPDT	On-On

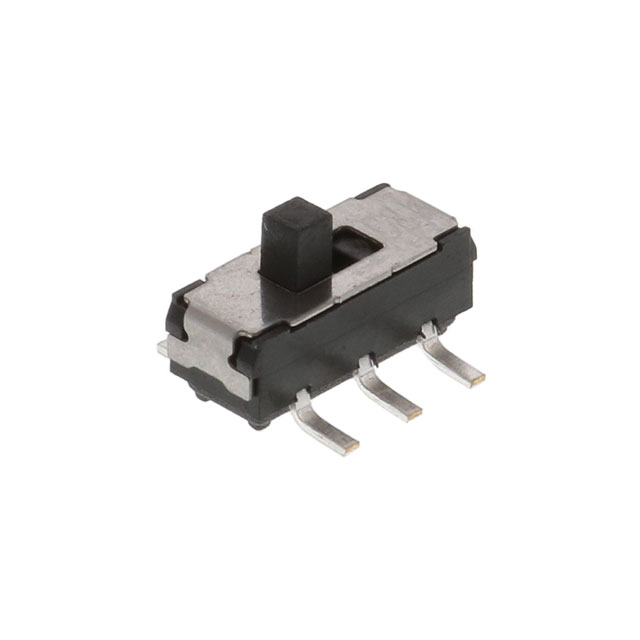

Littelfuse/Commercial Vehicle Products JS202011SCQN	2 mm	300 mA	2 mm	Standard	5000 Steps	6 V	Copper Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Silver	85 °C	-40 °C	Not Specified	Gull Wing	DPDT	On-On

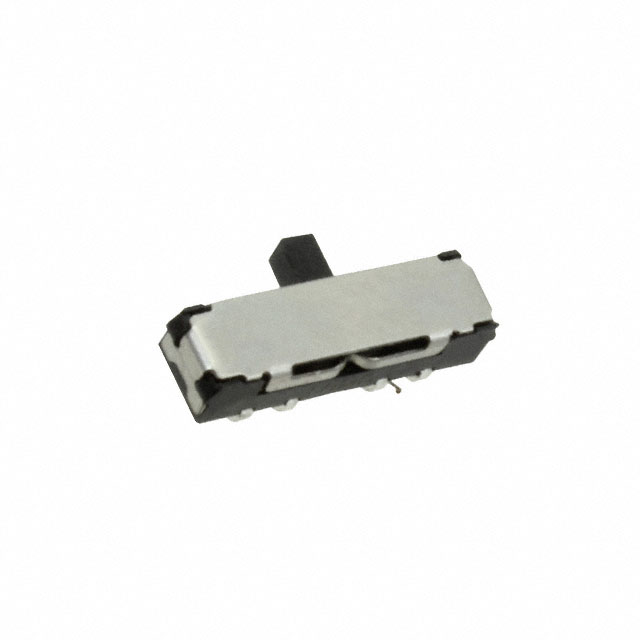

Littelfuse/Commercial Vehicle Products JS203011JAQN	2 mm	300 mA	2 mm	Standard	5000 Steps	6 V	Copper Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount Right Angle	Silver	85 °C	-40 °C	Non-Shorting	J Lead	DP3T	On-On-On
Littelfuse/Commercial Vehicle Products JS202011JAQN	2 mm	300 mA	2 mm	Standard	5000 Steps	6 V	Copper Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount Right Angle	Silver	85 °C	-40 °C	Not Specified	J Lead	DPDT	On-On
Littelfuse/Commercial Vehicle Products JS102011SAQN	2 mm	300 mA	2 mm	Standard	5000 Steps	6 V	Copper Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount Right Angle	Silver	85 °C	-40 °C	Not Specified	Gull Wing	SPDT	On-On
Littelfuse/Commercial Vehicle Products JS203011JCQN	2 mm	300 mA	2 mm	Standard	5000 Steps	6 V	Copper Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Silver	85 °C	-40 °C	Not Specified	J Lead	DP3T	On-On-On
Littelfuse/Commercial Vehicle Products JS207011SCQNR	2 mm	300 mA	2 mm	Standard	5000 Steps	6 V	Copper Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Silver	85 °C	-40 °C	Not Specified	Gull Wing	DP3T	On-On-Mom

Catalog

Sub-Miniature Slide Switch Slide Switches DP3T THRU HOLE .3A

Key Features

• Positive detent

• Low profile

• IR reflow to 260º solder profile

• Surface and thru hole mounting

• SPDT, DPDT, DP3T models

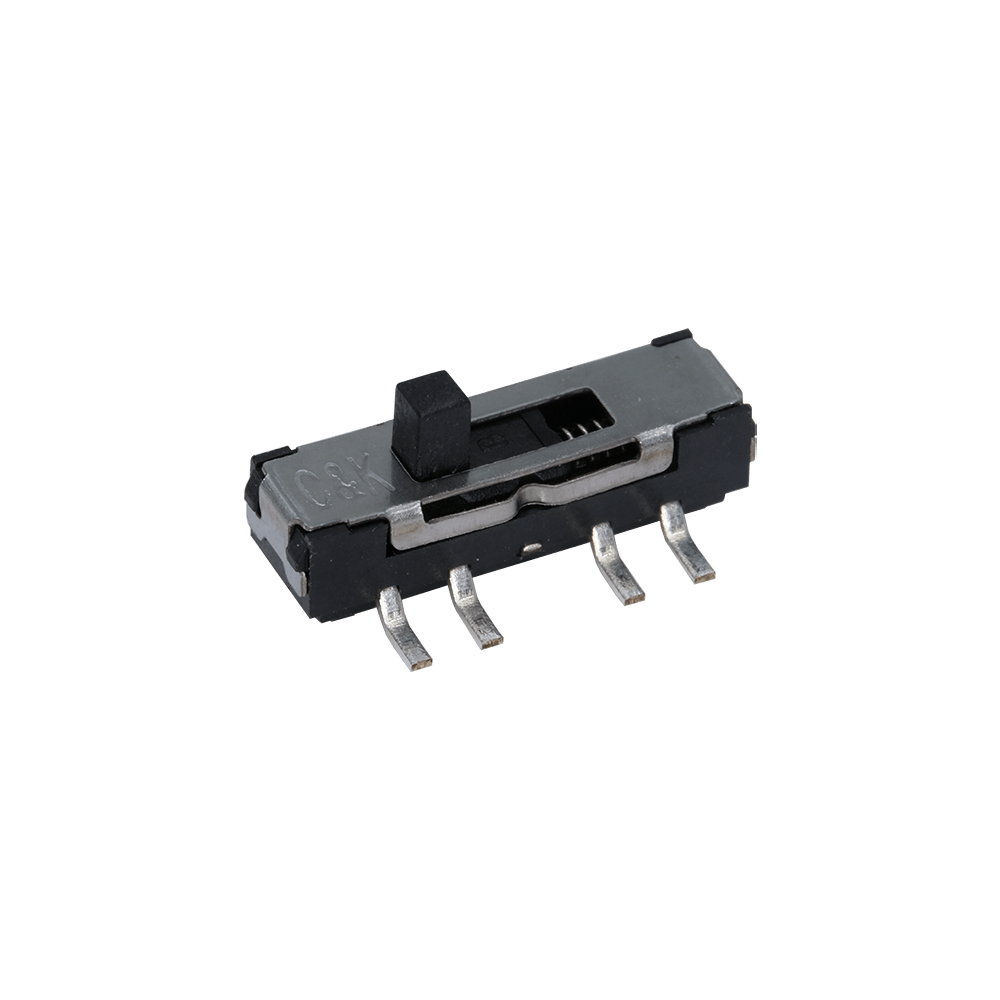

Description

Designers of telecommunication products, computer peripherals, thermostat select switches and other various instrumentations need a switch that’s low-profile while still performing at a high level. C&K’s JS series sub-miniature slide switches feature positive detent, an IR reflow to 260º solder profile, surface and thru hole mounting – and are available in SPDT, DPDT and DP3T models.
