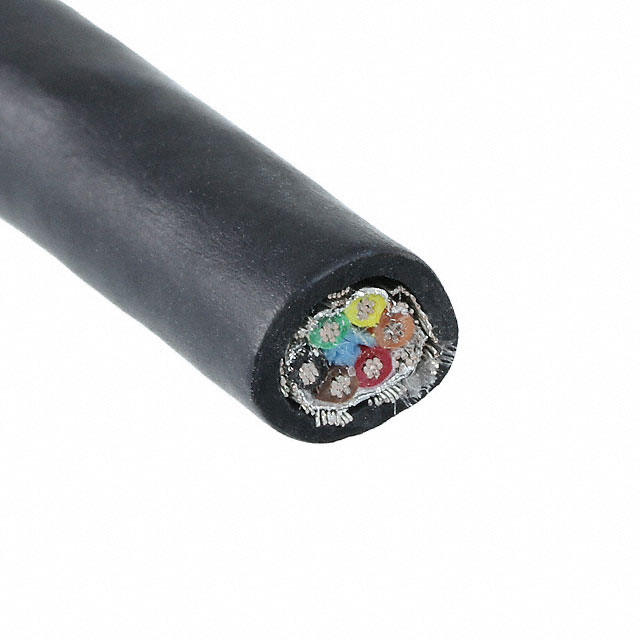

45106 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 6COND 22AWG WHT SHLD 1000'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Features | Length | Length | Shield Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Cable Type | Conductor Material | Shield Coverage | Wire Gauge | Ratings | Jacket (Insulation) Material | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 7 | 30 AWG | Biological Compatibility Drain Wire Rip Cord | 1000 ft | 304.8 m | Copper Tinned Suprashield® | -50 °C | 125 °C | 300 V | Braid Foil | 1.143 mm | 0.045 in | 6 | 7.85 mm | 0.309 in | Thermoplastic Elastomer (TPE) | Multi-Conductor | Copper Tinned | 70 % 100 % | 22 AWG | ISO 10993 | Thermoplastic Elastomer (TPE) | |||
ALPHA WIRE | 7 | 30 AWG | Biological Compatibility Drain Wire Rip Cord | 1000 ft | 304.8 m | Copper Tinned Suprashield® | -50 °C | 125 °C | 300 V | Braid Foil | 1.143 mm | 0.045 in | 6 | 7.85 mm | 0.309 in | Thermoplastic Elastomer (TPE) | Multi-Conductor | Copper Tinned | 70 % 100 % | 22 AWG | ISO 10993 | Thermoplastic Elastomer (TPE) | Slate | ||
ALPHA WIRE | 7 | 30 AWG | Biological Compatibility Drain Wire Rip Cord | 1000 ft | 304.8 m | Copper Tinned Suprashield® | -50 °C | 125 °C | 300 V | Braid Foil | 1.143 mm | 0.045 in | 6 | 7.85 mm | 0.309 in | Thermoplastic Elastomer (TPE) | Multi-Conductor | Copper Tinned | 70 % 100 % | 22 AWG | ISO 10993 | Thermoplastic Elastomer (TPE) | Blue | ||
 ALPHA WIRE | 7 | 30 AWG | Biological Compatibility Drain Wire Rip Cord | Copper Tinned Suprashield® | -50 °C | 125 °C | 300 V | Braid Foil | 1.143 mm | 0.045 in | 6 | 7.85 mm | 0.309 in | Thermoplastic Elastomer (TPE) | Multi-Conductor | Copper Tinned | 70 % 100 % | 22 AWG | ISO 10993 | Thermoplastic Elastomer (TPE) | Black | 30.5 m | 100 ft | ||
ALPHA WIRE | 7 | 30 AWG | Biological Compatibility Drain Wire Rip Cord | 1000 ft | 304.8 m | Copper Tinned Suprashield® | -50 °C | 125 °C | 300 V | Braid Foil | 1.143 mm | 0.045 in | 6 | 7.85 mm | 0.309 in | Thermoplastic Elastomer (TPE) | Multi-Conductor | Copper Tinned | 70 % 100 % | 22 AWG | ISO 10993 | Thermoplastic Elastomer (TPE) | Black |
