110-91 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC SKT DBL

Part	Current Rating (Amps)	Material Flammability Rating	Contact Resistance	Termination Post Length	Termination Post Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Type	Type	Type	Pitch - Mating	Pitch - Mating	Features	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid)	Contact Finish - Post	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Termination	Mounting Type	Contact Material - Post	Housing Material	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 110-91-306-41-605000	3 A	UL94 V-0	10 mOhm	0.125 in	3.18 mm	0.25 µm	10 µin	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C	3 positions or pins	2	6	Tin-Lead	Beryllium Copper	200 µin	5.08 µm	Gold	Solder	Through Hole	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester

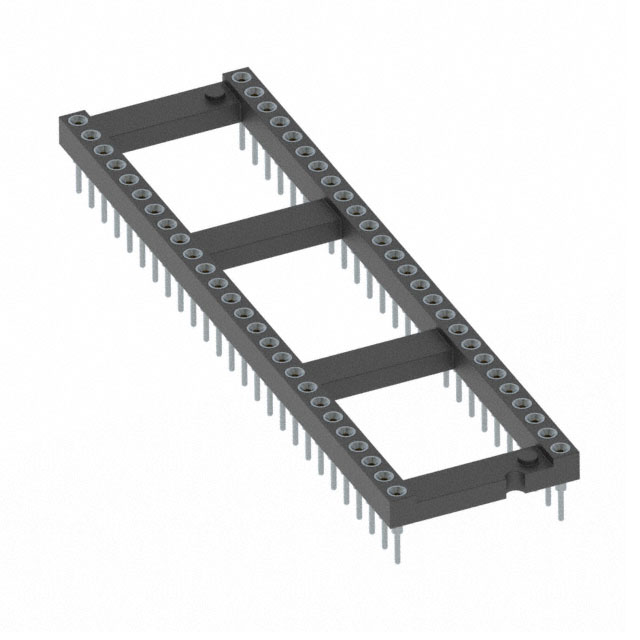

Mill-Max Manufacturing Corp. 110-91-652-41-001000	3 A			0.125 in	3.18 mm	0.25 µm	10 µin			DIP	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C				Tin-Lead	Beryllium Copper	200 µin	5.08 µm	Gold	Solder	Through Hole	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 110-91-314-61-001000	3 A	UL94 V-0	10 mOhm	0.125 in	3.18 mm	0.25 µm	10 µin	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm		0.1 in	2.54 mm	-55 C	125 °C			14	Tin-Lead	Beryllium Copper	200 µin	5.08 µm	Gold	Solder	Through Hole	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
Mill-Max Manufacturing Corp. 110-91-210-41-001000	3 A			0.125 in	3.18 mm	0.25 µm	10 µin	5.08 mm		DIP	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C	5	2	10	Tin-Lead	Beryllium Copper	200 µin	5.08 µm	Gold	Solder	Through Hole	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
Mill-Max Manufacturing Corp. 110-91-316-41-605000	3 A	UL94 V-0	10 mOhm	0.125 in	3.18 mm	0.25 µm	10 µin	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C			16	Tin-Lead	Beryllium Copper	200 µin	5.08 µm	Gold	Solder	Through Hole	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			2	8
Mill-Max Manufacturing Corp. 110-91-318-41-605000	3 A	UL94 V-0	10 mOhm	0.125 in	3.18 mm	0.25 µm	10 µin	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C			18	Tin-Lead	Beryllium Copper	200 µin	5.08 µm	Gold	Solder	Through Hole	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester

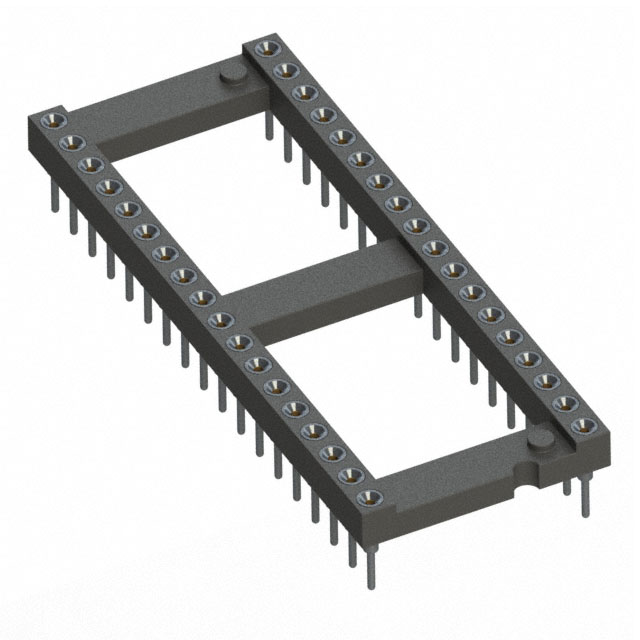

Mill-Max Manufacturing Corp. 110-91-632-61-001000	3 A	UL94 V-0	10 mOhm	0.125 in	3.18 mm	0.25 µm	10 µin			DIP	0.1 "	2.54 mm		0.1 in	2.54 mm	-55 C	125 °C			32	Tin-Lead	Beryllium Copper	200 µin	5.08 µm	Gold	Solder	Through Hole	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 110-91-652-41-105000	3 A	UL94 V-0	10 mOhm	0.125 in	3.18 mm	0.25 µm	10 µin			DIP	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C				Tin-Lead	Beryllium Copper	200 µin	5.08 µm	Gold	Solder	Surface Mount	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 110-91-316-41-105000	3 A	UL94 V-0	10 mOhm	0.125 in	3.18 mm	0.25 µm	10 µin	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C			16	Tin-Lead	Beryllium Copper	200 µin	5.08 µm	Gold	Solder	Surface Mount	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			2	8
Mill-Max Manufacturing Corp. 110-91-306-41-105000	3 A	UL94 V-0	10 mOhm	0.125 in	3.18 mm	0.25 µm	10 µin	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Open Frame	0.1 in	2.54 mm	-55 C	125 °C	3 positions or pins	2	6	Tin-Lead	Beryllium Copper	200 µin	5.08 µm	Gold	Solder	Surface Mount	Brass Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
