745-040 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 40POS 0.100

Part	Termination Rows	Material - Insulation	Color	Number of Rows	Contact Type	Number of Positions/Bay/Row [custom]	Card Type	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Contact Finish	Contact Material	Gender	Read Out	Mounting Type	Number of Positions	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Termination Rows [custom]	Number of Positions/Bay/Row	Number of Rows [custom]
EDAC Inc. 745-040-545-106	1	Polyester Thermoplastic	Black	1	Cantilever	40	Non Specified - Single Edge	30 Áin	0.76 Ám	0.1 "	2.54 mm	Gold	Copper Alloy	Female	Single	Through Hole	40	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-040-520-101	1	Polyester Thermoplastic	Black	1	Cantilever	40	Non Specified - Single Edge	30 Áin	0.76 Ám	0.1 "	2.54 mm	Gold	Copper Alloy	Female	Single	Through Hole	40	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-040-522-101	1	Polyester Thermoplastic	Black	1	Cantilever	40	Non Specified - Single Edge	30 Áin	0.76 Ám	0.1 "	2.54 mm	Gold	Copper Alloy	Female	Single	Through Hole	40	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-040-522-106	1	Polyester Thermoplastic	Black	1	Cantilever	40	Non Specified - Single Edge	30 Áin	0.76 Ám	0.1 "	2.54 mm	Gold	Copper Alloy	Female	Single	Through Hole	40	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm

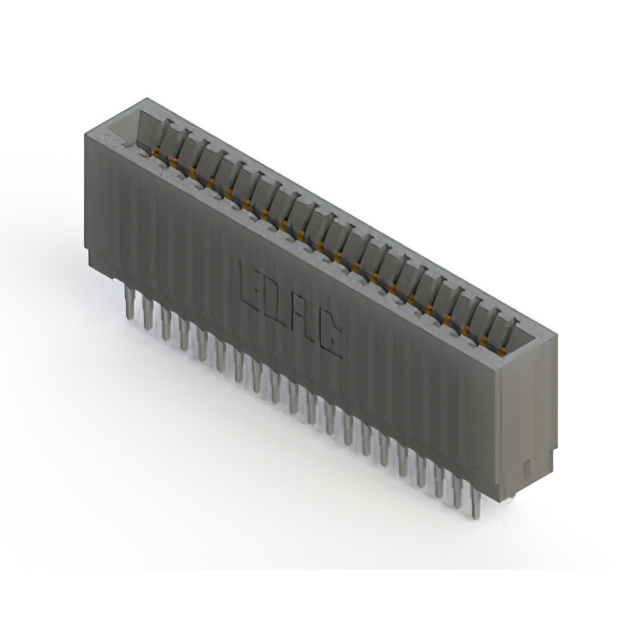

EDAC Inc. 745-040-560-201		Polyester Thermoplastic	Black		Cantilever Make Before Break		Non Specified - Dual Edge	30 Áin	0.76 Ám	0.1 "	2.54 mm	Gold	Copper Alloy	Female	Dual	Through Hole	40	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	20 Bay/Row	2

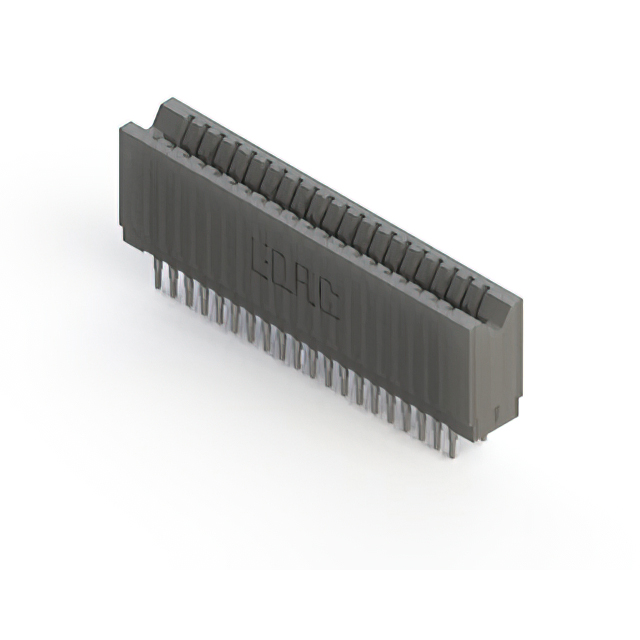

EDAC Inc. 745-040-540-206		Polyester Thermoplastic	Black		Cantilever		Non Specified - Dual Edge	30 Áin	0.76 Ám	0.1 "	2.54 mm	Gold	Copper Alloy	Female	Dual	Through Hole	40	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	20 Bay/Row	2

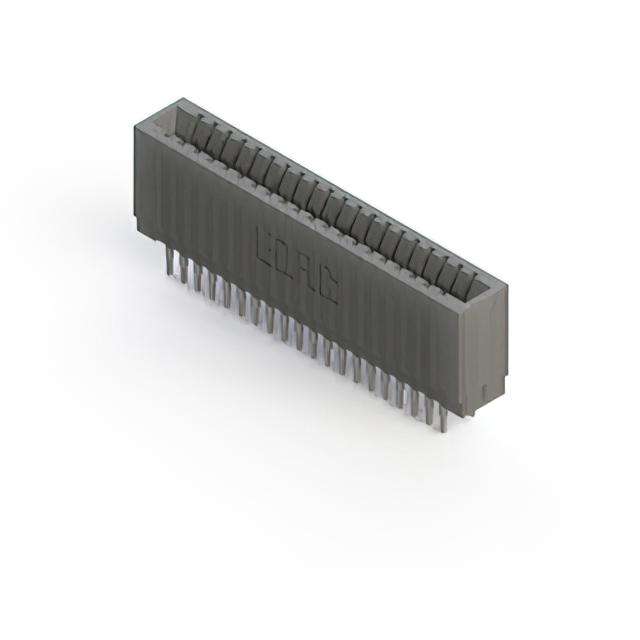

EDAC Inc. 745-040-541-201		Polyester Thermoplastic	Black		Cantilever		Non Specified - Dual Edge	30 Áin	0.76 Ám	0.1 "	2.54 mm	Gold	Copper Alloy	Female	Dual	Through Hole	40	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	20 Bay/Row	2
EDAC Inc. 745-040-540-201		Polyester Thermoplastic	Black		Cantilever		Non Specified - Dual Edge	30 Áin	0.76 Ám	0.1 "	2.54 mm	Gold	Copper Alloy	Female	Dual	Through Hole	40	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	20 Bay/Row	2
EDAC Inc. 745-040-525-201		Polyester Thermoplastic	Black		Cantilever		Non Specified - Dual Edge	30 Áin	0.76 Ám	0.1 "	2.54 mm	Gold	Copper Alloy	Female	Dual	Through Hole	40	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	20 Bay/Row	2
EDAC Inc. 745-040-541-106	1	Polyester Thermoplastic	Black	1	Cantilever	40	Non Specified - Single Edge	30 Áin	0.76 Ám	0.1 "	2.54 mm	Gold	Copper Alloy	Female	Single	Through Hole	40	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
