2516-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

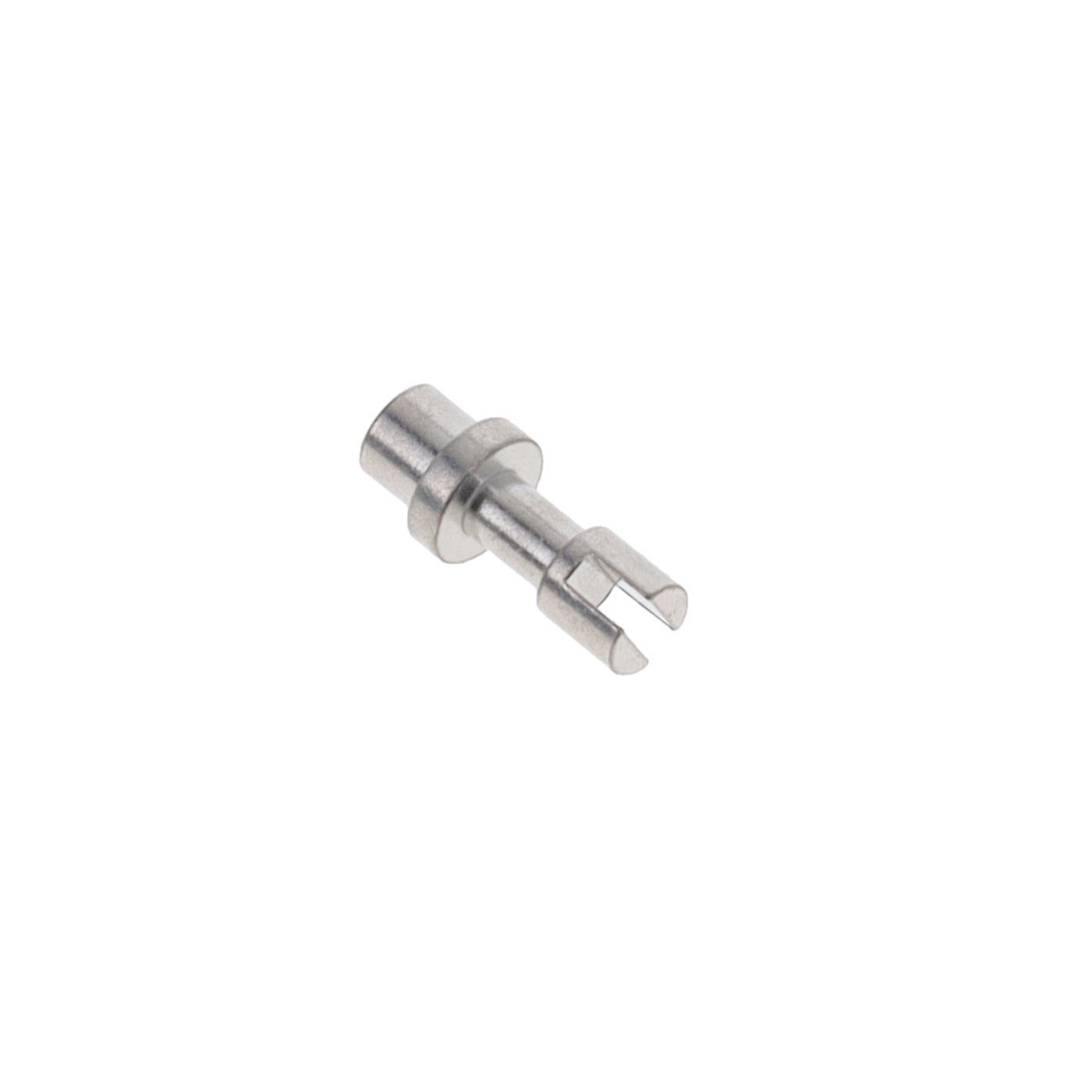

CONN PC PIN CIRC .063DIA TINLEAD
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Type | Flange Diameter | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Insulation | Terminal Style | Board Thickness | Board Thickness | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Finish | Length - Overall [x] | Length - Overall [x] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 0.063 in | 1.6 mm | 0.184 in | 4.67 mm | PC Pin | 3.18 mm | 0.125 in | 2.39 mm | 0.094 " | Non-Insulated | Single End Slotted | 0.031 in | 0.79 mm | Through Hole | 300 µin | 7.62 µm | Swage | Tin-Lead | 7.47 mm | 0.294 " | Brass Alloy |
Mill-Max Manufacturing Corp. | 0.063 in | 1.6 mm | 0.184 in | 4.67 mm | PC Pin | 3.18 mm | 0.125 in | 2.39 mm | 0.094 " | Non-Insulated | Single End Slotted | 0.031 in | 0.79 mm | Through Hole | 300 µin | 7.62 µm | Swage | Silver | 7.47 mm | 0.294 " | Brass Alloy |
Mill-Max Manufacturing Corp. | 0.063 in | 1.6 mm | 0.184 in | 4.67 mm | PC Pin | 3.18 mm | 0.125 in | 2.39 mm | 0.094 " | Non-Insulated | Single End Slotted | 0.031 in | 0.79 mm | Through Hole | 200 Áin | 5.08 Ám | Swage | Tin-Lead | 7.47 mm | 0.294 " | Brass Alloy |
 Mill-Max Manufacturing Corp. | 0.063 in | 1.6 mm | 0.184 in | 4.67 mm | PC Pin | 3.18 mm | 0.125 in | 2.39 mm | 0.094 " | Non-Insulated | Single End Slotted | 0.031 in | 0.79 mm | Through Hole | 200 Áin | 5.08 Ám | Swage | Tin | 7.47 mm | 0.294 " | Brass Alloy |
