2842124 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,BRK HDR,SRRT,2.8,0.76AU,B

Part	Number of Positions	Contact Finish - Post	Contact Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Mating	Number of Positions Loaded	Mounting Type	Contact Length - Post [x]	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Insulation Color	Contact Shape	Fastening Type	Connector Type

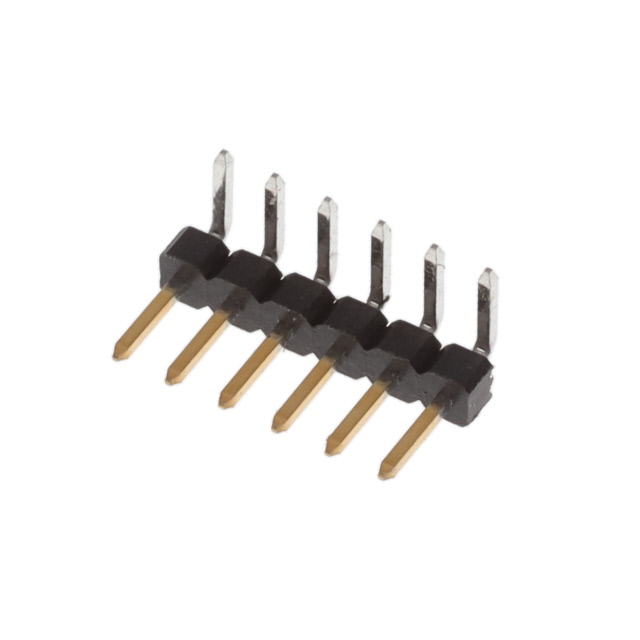

TE Connectivity Raychem Cable Protection 2842124-6	6	Tin	Male Pin	125 VAC	125 °C	-40 °C	Unshrouded	UL94 V-0	2 A	Gold	All	Through Hole Right Angle	0.11 in	2.79 mm	4 mm	0.157 in	0.079 in	2 mm	1	Solder	2 çm	78.7 çin	Copper Alloy	1.5 mm	0.059 "	30 Áin	0.76 Ám	Thermoplastic	Black	Square	Push-Pull	Breakaway Header

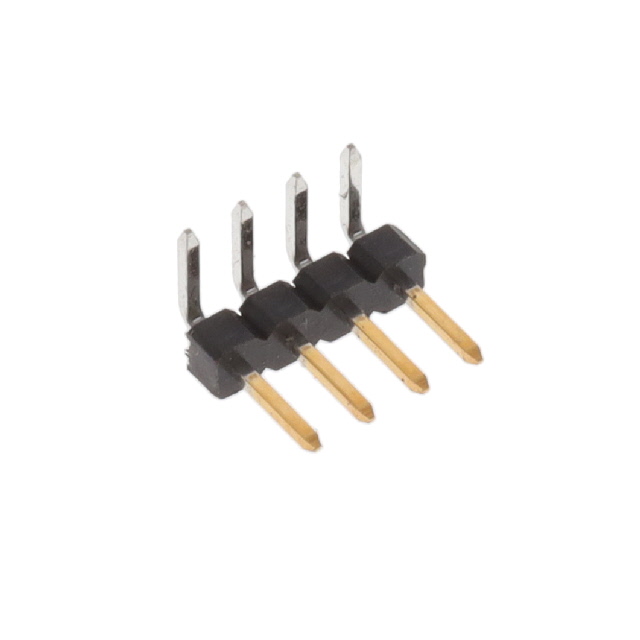

TE Connectivity Raychem Cable Protection 2842124-4	4	Tin	Male Pin	125 VAC	125 °C	-40 °C	Unshrouded	UL94 V-0	2 A	Gold	All	Through Hole Right Angle	0.11 in	2.79 mm	4 mm	0.157 in	0.079 in	2 mm	1	Solder	2 çm	78.7 çin	Copper Alloy	1.5 mm	0.059 "	30 Áin	0.76 Ám	Thermoplastic	Black	Square	Push-Pull	Breakaway Header

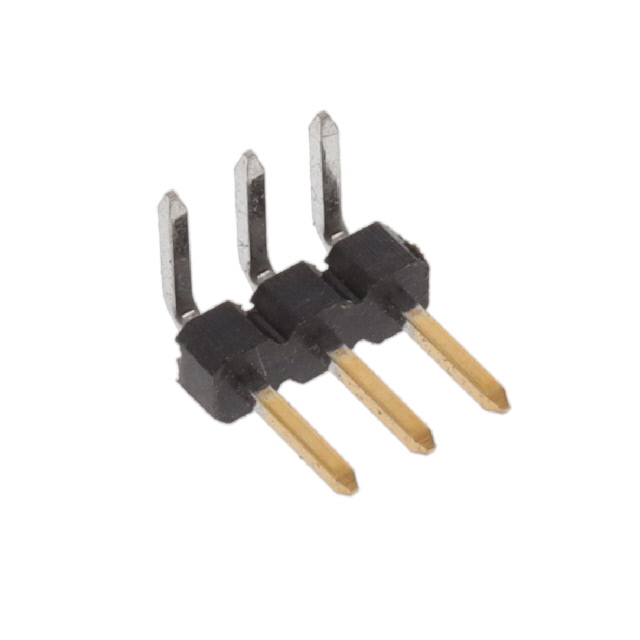

TE Connectivity Raychem Cable Protection 2842124-3		Tin	Male Pin	125 VAC	125 °C	-40 °C	Unshrouded	UL94 V-0	2 A	Gold	All	Through Hole Right Angle	0.11 in	2.79 mm	4 mm	0.157 in	0.079 in	2 mm	1	Solder	2 çm	78.7 çin	Copper Alloy	1.5 mm	0.059 "	30 Áin	0.76 Ám	Thermoplastic	Black	Square	Push-Pull	Breakaway Header
TE Connectivity Raychem Cable Protection 2842124-8	8	Tin	Male Pin	125 VAC	125 °C	-40 °C	Unshrouded	UL94 V-0	2 A	Gold	All	Through Hole Right Angle	0.11 in	2.79 mm	4 mm	0.157 in	0.079 in	2 mm	1	Solder	2 çm	78.7 çin	Copper Alloy	1.5 mm	0.059 "	30 Áin	0.76 Ám	Thermoplastic	Black	Square	Push-Pull	Breakaway Header

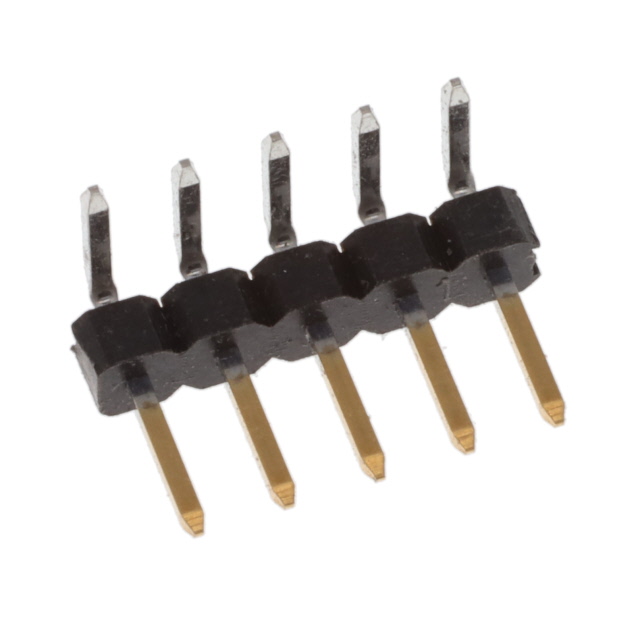

TE Connectivity Raychem Cable Protection 2842124-5		Tin	Male Pin	125 VAC	125 °C	-40 °C	Unshrouded	UL94 V-0	2 A	Gold	All	Through Hole Right Angle	0.11 in	2.79 mm	4 mm	0.157 in	0.079 in	2 mm	1	Solder	2 çm	78.7 çin	Copper Alloy	1.5 mm	0.059 "	30 Áin	0.76 Ám	Thermoplastic	Black	Square	Push-Pull	Breakaway Header
