3.14001 Series
Manufacturer: RAFI USA
Beta
⌘K

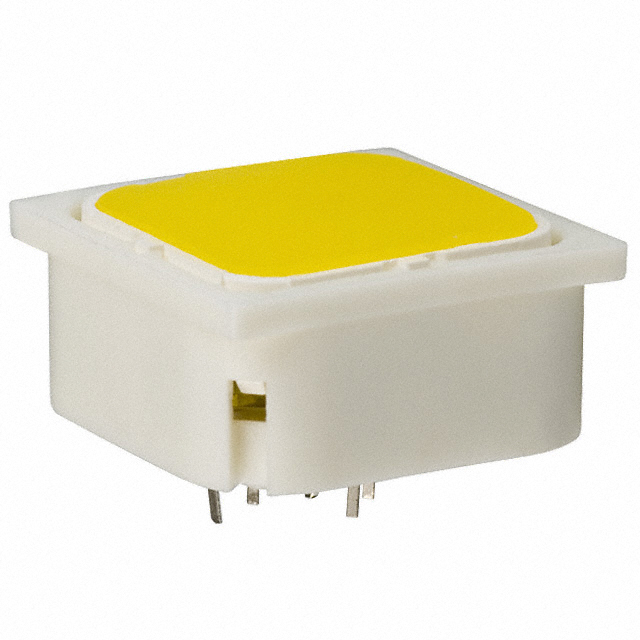

SWITCH TACTILE SPST-NO 0.1A 42V
| Part | Illumination | Termination Style | Switch Function | Operating Force [Min] | Operating Force [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Contact Rating @ Voltage | Circuit | Mounting Type | Switch Travel | Actuator Orientation | Actuator Height off PCB, Vertical | Outline [x] | Outline [y] | Illumination Type, Color | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RAFI USA | Illuminated | PC Pin | Off-Mom | 204 gf | 306 gf | -25 °C | 70 °C | Square Button | 0.1 A 42 VAC/DC | SPST-NO | Through Hole | 0.5 mm | Top Actuated | 9.7 mm | 19.05 mm | 19.05 mm | LED Yellow | 1000000 Cycles |
 RAFI USA | ||||||||||||||||||
RAFI USA | Illuminated | PC Pin | Off-Mom | 204 gf | 306 gf | -25 °C | 70 °C | Square Button | 0.1 A 42 VAC/DC | SPST-NO | Through Hole | Top Actuated | 9.7 mm | 19.05 mm | 19.05 mm | LED Yellow | ||
RAFI USA |
