TR9KZ3158 Series

Catalog

AC/DC DESKTOP ADAPTER 19V 60W

Part	Standard Number	Polarization	Cord Length	Cord Length	Efficiency	Power (Watts)	No Load Power Consumption	Voltage - Output	Form	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Input Type	Current - Output (Max) [Max]	Output Connector [x]	Output Connector [diameter]	Output Connector	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency

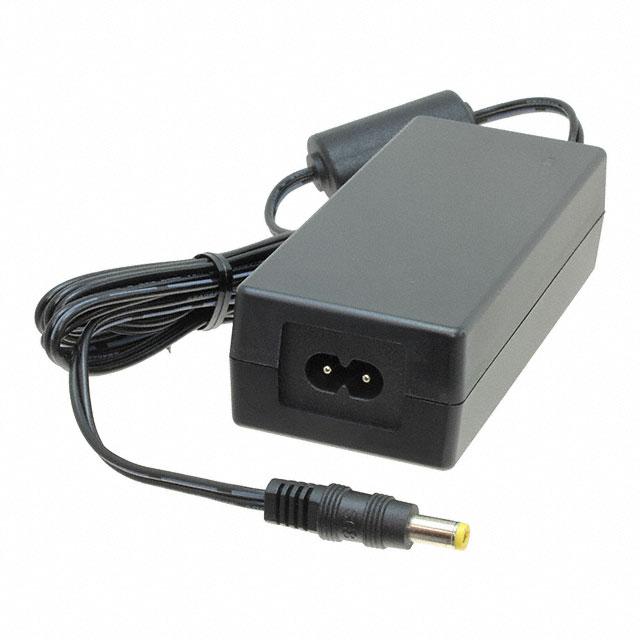

GlobTek, Inc. TR9KZ3158CCP-N(R6B)	60335-1 60950-1	Positive Center	60.2 in	1.53 m	Level VI	60 W	150 mW	19 V	Desktop (Class II)	Household Appliances ITE (Commercial)	264 VAC	90 VAC	International	Cord (Sold Separately)	3.15 A	11 mm	2.1 mm 5.5 mm	Barrel Plug	40 °C	0 °C	IEC 320-C8	1.3 in	121 mm	4.76 "	2.05 in	33 mm	52 mm	CB CCC CE cULus EAC FCC GS LPS PSE RCM UkrSEPRO VCCI

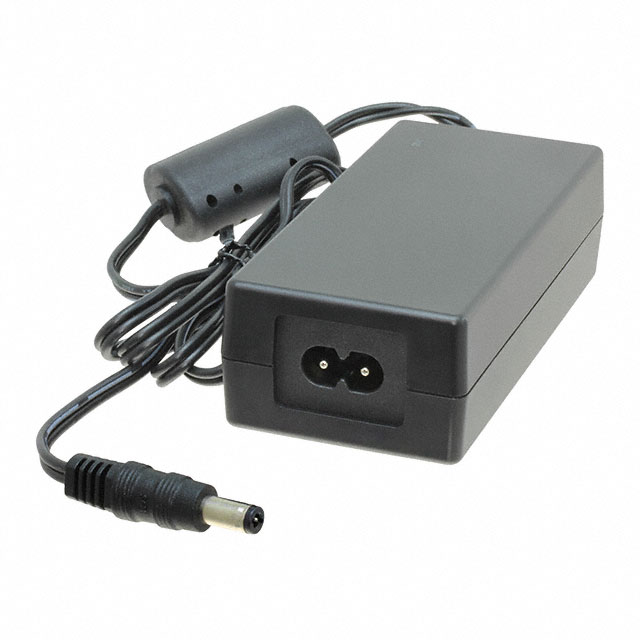

GlobTek, Inc. TR9KZ3158LCP-N(R6B)	60335-1 60950-1	Positive Center	60.2 in	1.53 m	Level VI	60 W	150 mW	19 V	Desktop (Class II)	Household Appliances ITE (Commercial)	264 VAC	90 VAC	International	Cord (Sold Separately)	3.15 A 3.16 A	11 mm	2.5 mm 5.5 mm	Barrel Plug	40 °C	0 °C	IEC 320-C8	1.3 in	121 mm	4.76 "	2.05 in	33 mm	52 mm	CB CCC CE cULus EAC FCC GS LPS PSE RCM UkrSEPRO VCCI
