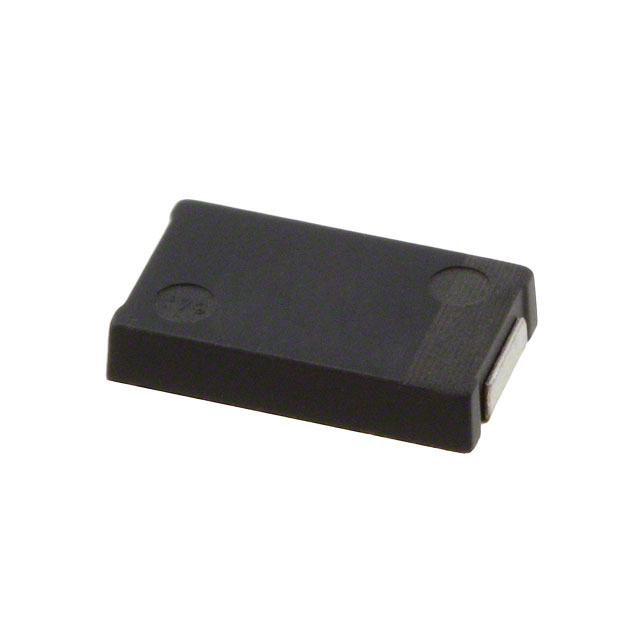

EEF-CT Series

Catalog

CAP ALUM POLY 22UF 20% 25V SMD

Part	Package / Case	Package / Case	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Tolerance	Type	Capacitance	Applications	ESR (Equivalent Series Resistance)	Voltage - Rated	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]
Panasonic Industrial Automation Sales EEF-CT1E220R	7343 Metric	2917	3.2 A	1.5 mm	0.059 "	Surface Mount	4.3 mm	0.287 "	7.3 mm	0.169 "	105 ░C	-55 °C	2000 Hrs	20 %	Polymer	22 µF	General Purpose	40 mOhm	25 VDC
Panasonic Industrial Automation Sales EEF-CT1A680R	7343 Metric	2917	3.2 A	1.5 mm	0.059 "	Surface Mount	4.3 mm	0.287 "	7.3 mm	0.169 "	105 ░C	-55 °C	2000 Hrs	20 %	Polymer	68 µF	General Purpose	40 mOhm	10 V
Panasonic Industrial Automation Sales EEF-CT0J101R	7343 Metric	2917	5.1 A	1.5 mm	0.059 "	Surface Mount	4.3 mm	0.287 "	7.3 mm	0.169 "	105 ░C	-55 °C	2000 Hrs	20 %	Polymer	100 µF	General Purpose	15 mOhm	6.3 V	0.287 "	4.3 mm	0.169 "	7.3 mm
