SR4L049 Series

Manufacturer: Antenova

Catalog

RF ANT 875.5MHZ/1.94GHZ PCB TRCE

Part	Antenna Type	Frequency Group	Number of Bands	Gain	Frequency (Center/Band)	Applications	Mounting Type	RF Family/Standard	Height (Max) [z]	Height (Max) [z]	Termination	VSWR	Return Loss	For Use With/Related Products	Supplied Contents	Type	Contents	Utilized IC / Part	Frequency [Min]	Frequency [Max]

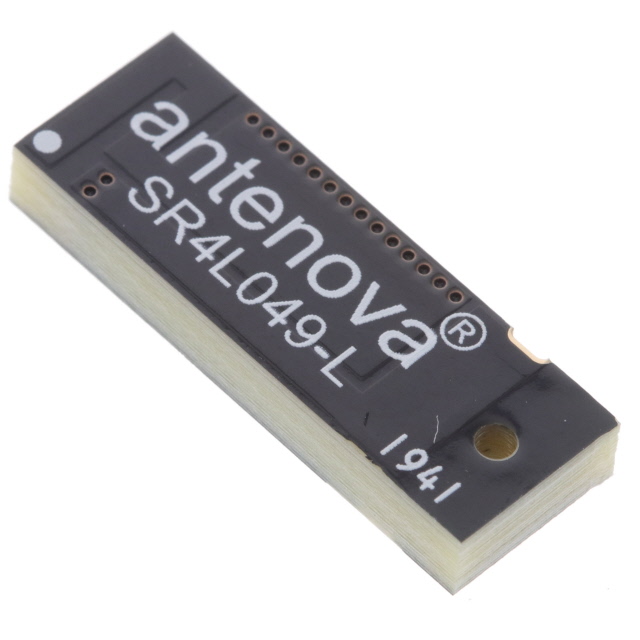

Antenova SR4L049-L	PCB Trace	Wide Band	4	1.9dBi 3.3dBi 3.5dBi 3dBi	1.94 GHz 2.35 GHz 2.595 GHz 875.5 MHz	3G 4G CDMA DCS EDGE GPRS GSM HSPA IMT LTE PCS UMTS WCDMA	Surface Mount	Cellular	0.13 in	3.3 mm	Solder	1.9 2.3 3.6 4.1	-9.7 dB -7.8 dB -5 dB -4.5 dB

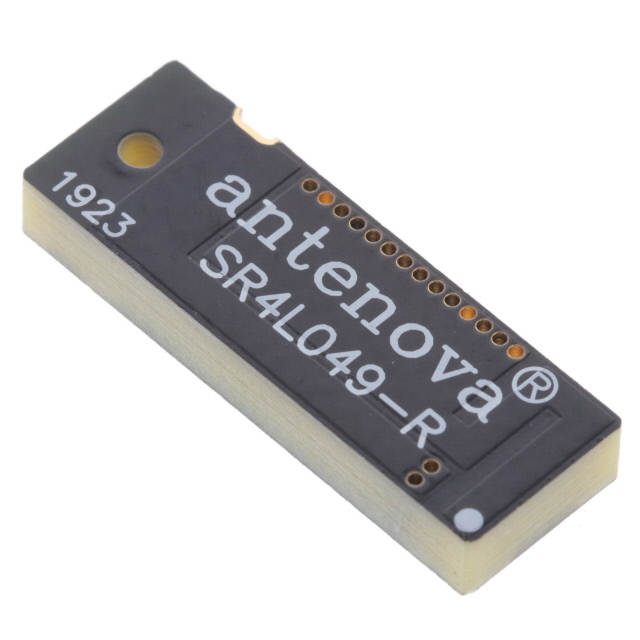

Antenova SR4L049-R	PCB Trace	Wide Band	4	1.9dBi 3.3dBi 3.5dBi 3dBi	1.94 GHz 2.35 GHz 2.595 GHz 875.5 MHz	3G 4G CDMA DCS EDGE GPRS GSM HSPA IMT LTE PCS UMTS WCDMA	Surface Mount	Cellular	0.13 in	3.3 mm	Solder	1.9 2.3 3.6 4.1	-9.7 dB -7.8 dB -5 dB -4.5 dB

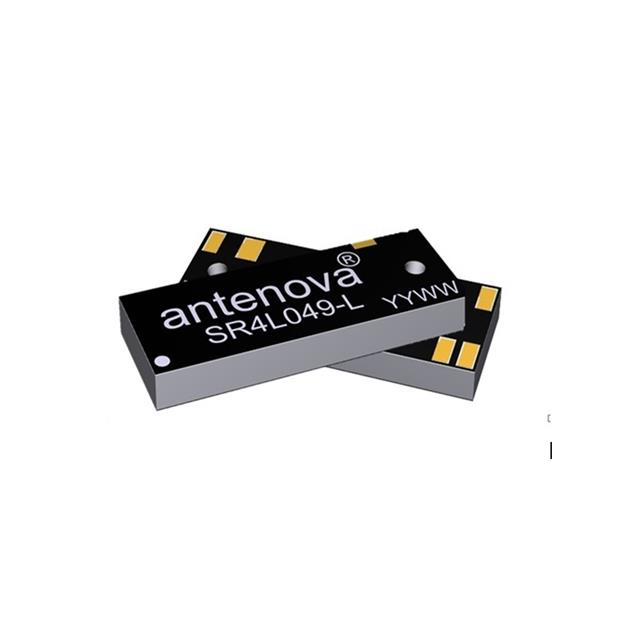

Antenova SR4L049-EVB-1														SR4L049	Board(s)	Antenna	Board(s)	SR4L049	1.71 GHz 2.3 GHz 2.5 GHz 791 MHz	2.17 GHz 2.4 GHz 960 MHz 2700 MHz
