HBHR-A1 Series
Manufacturer: Adam Tech
Beta
⌘K

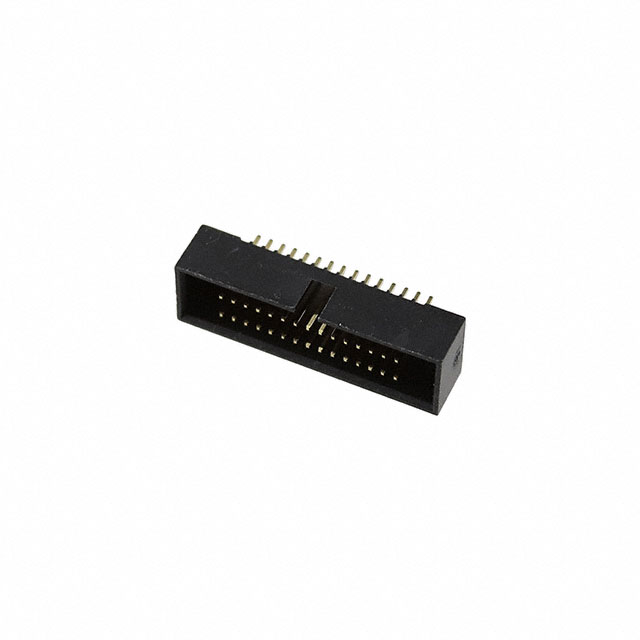

CONN HEADER VERT 30POS 1.27MM
| Part | Contact Finish Thickness - Post | Contact Finish - Mating | Mounting Type | Insulation Height | Insulation Height | Number of Positions | Number of Positions Loaded | Features | Termination | Contact Finish - Post | Number of Rows [custom] | Shrouding | Contact Length - Post [x] | Contact Length - Post [x] | Contact Shape | Connector Type | Contact Material | Style | Fastening Type | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Flash | Gold | Through Hole | 0.217 in | 5.51 mm | 30 | All | Polarizing Key | Solder | Gold | 2 | Shrouded - 4 Wall | 0.126 " | 3.2 mm | Square | Header | Brass | Board to Cable/Wire | Push-Pull | Flash | 1.27 mm | 0.05 in | Black | Male Pin | 0.1 in | 2.54 mm | Nylon 6T Polyamide (PA6T) | -40 C | 105 ░C | UL94 V-0 | 250 VAC |
