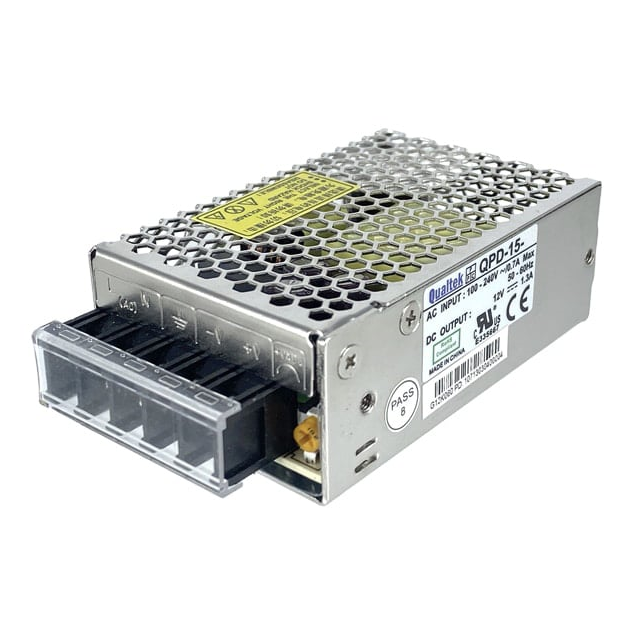

QPD-15 Series
Manufacturer: Qualtek
Beta
⌘K
AC/DC CONVERTER 12V 15W
| Part | Number of Outputs | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 1 | Efficiency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Voltage - Isolation | Voltage - Input [Max] | Voltage - Input [Min] | Features | Applications | Mounting Type | Approval Agency | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 1 | 12 V | 70 °C | -20 °C | 1.3 A | 80 % | 28 mm | 3.11 " | 51 mm | 2.01 " | 1.1 in | 79 mm | 15 W | 3000 V | 264 VAC | 88 VAC | Adjustable Output DC Input Capable Universal Input | ITE (Commercial) | Chassis Mount | CB CE cURus | Enclosed |
 Qualtek | 1 | 3.3 V | 70 °C | -20 °C | 4 A | 71 % | 28.8 mm | 3.11 " | 50.4 mm | 1.98 " | 1.13 " | 79 mm | 15 W | 3000 V | 264 VAC | 88 VAC | Adjustable Output DC Input Capable Universal Input | ITE (Commercial) | Chassis Mount | CB CE cURus | Enclosed |
Qualtek | 1 | 24 V | 70 °C | -20 °C | 700 mA | 83 % | 28 mm | 3.11 " | 51 mm | 2.01 " | 1.1 in | 79 mm | 15 W | 3000 V | 264 VAC | 88 VAC | Adjustable Output DC Input Capable Universal Input | ITE (Commercial) | Chassis Mount | CB CE cURus | Enclosed |
Qualtek | 1 | 15 V | 70 °C | -20 °C | 1 A | 83 % | 28.8 mm | 3.11 " | 50.4 mm | 1.98 " | 1.13 " | 79 mm | 15 W | 3000 V | 264 VAC | 88 VAC | Adjustable Output DC Input Capable Universal Input | ITE (Commercial) | Chassis Mount | CB CE cURus | Enclosed |
