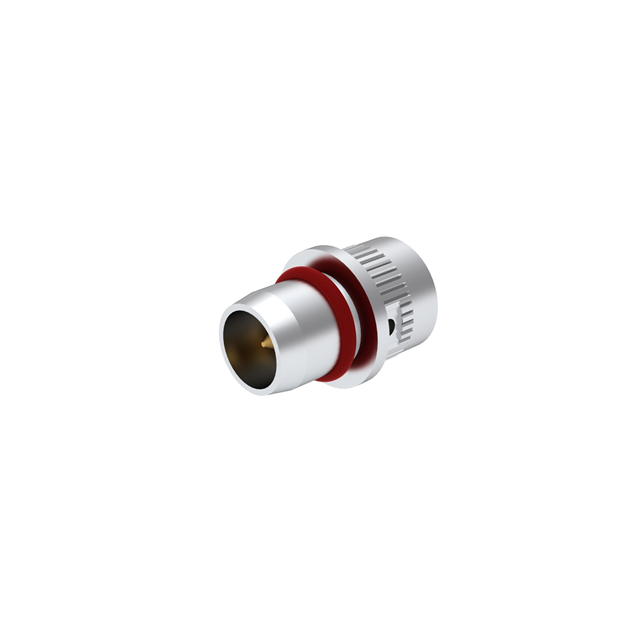

R12859 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
BMA / PRESS MOUNT PLUG RECEPTACL
| Part | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Center Contact Plating | Connector Style | Mounting Type | Frequency - Max [Max] | Number of Ports | Contact Termination | Impedance | Housing Color | Shield Termination | Fastening Type | Connector Type | Ingress Protection | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 1000 | Polytetrafluoroethylene (PTFE) | -65 ░C | 125 °C | Stainless Steel | 500 V | Gold | BMA | Panel Mount | 22 GHz | 1 | Solder | 50 Ohms | Silver | Press-Fit | Snap-On | Plug Male Pin | IP54 - Dust Protected | Brass |
