CL-SA-12 Series

Catalog

SLIDE SWITCH, SPDT, THROUGH HOLE, CL-SA SERIES, 500 MA

Part	Electrical Life	Mechanical Life	Operating Force	Voltage Rating - DC	Contact Material [custom]	Contact Material [custom]	Contact Timing	Switch Function	Circuit	Actuator Length [x]	Current Rating (Amps)	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type

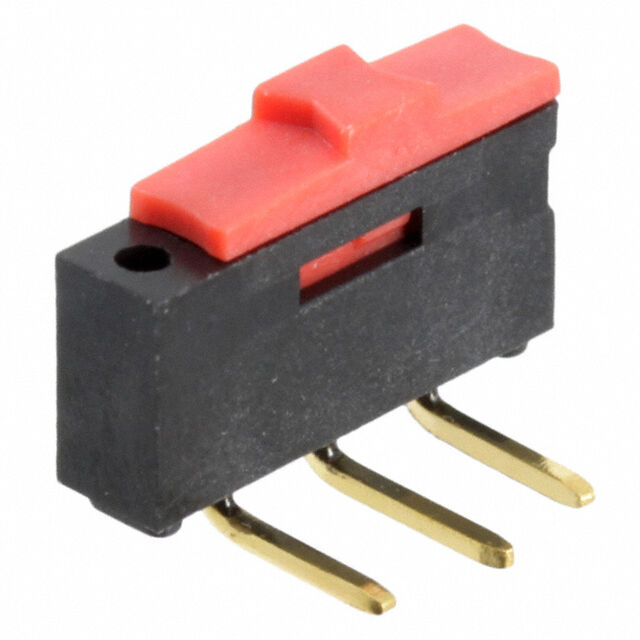

Nidec Components Corporation CL-SA-12C4-22	2000 Steps	10000 Steps	255 gf	12 V	Gold	Au	Non-Shorting (BBM)	On-On	SPDT	1.4 mm	500 mA	PC Pin	Right Angle Through Hole	85 °C	-40 C	Standard
Nidec Components Corporation CL-SA-12C4-02	2000 Steps	10000 Steps	255 gf	12 V	Gold	Au	Non-Shorting (BBM)	On-On	SPDT	1.4 mm	500 mA	PC Pin	Right Angle Through Hole	85 °C	-40 C	Standard
Nidec Components Corporation CL-SA-12C-02	2000 Steps	10000 Steps	255 gf	12 V	Gold	Au	Non-Shorting (BBM)	On-On	SPDT	1.4 mm	500 mA	PC Pin	Through Hole	85 °C	-40 C	Standard
