NSCSDRN Series

Catalog

SENSOR 0.04PSID 0.19" .0785V

Part	Termination Style	Maximum Pressure	Maximum Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Accuracy	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Port Style	Output Type	Mounting Type	Package / Case	Output [Max]	Output [Min]	Operating Pressure	Operating Pressure	Port Size	Port Size	Supplier Device Package
Honeywell Sensing and Productivity Solutions NSCSDRN001NDUNV	PC Pin	9.76 PSI	67.28 kPa	85 °C	-40 °C	Differential	0.25 %	6.5 V	2.7 V	Board Mount	Barbed	Wheatstone Bridge	Through Hole	4-SIP Dual Ports Opposite Sides	78.5 mV	0 mV	0.04 PSI	0.25 kPa

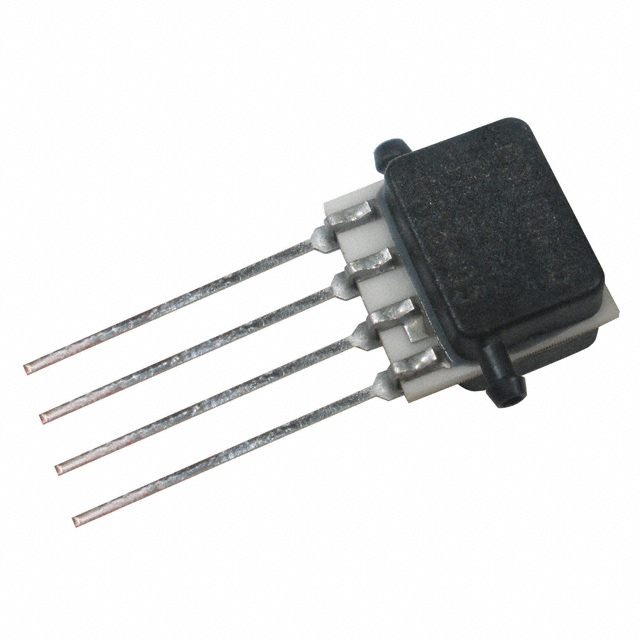

Honeywell Sensing and Productivity Solutions NSCSDRN060MDUNV	PC Pin	12.33 PSI	85 kPa	85 °C	-40 °C	Differential	0.25 %	12 V	1.5 V	Board Mount	Barbed	Wheatstone Bridge	Through Hole	4-SIP Dual Ports Opposite Sides	56.5 mV	0 mV	0.87 PSI	6 kPa	4.93 mm	0.19 "	4-SIP
Honeywell Sensing and Productivity Solutions NSCSDRN2.5MDUNV
