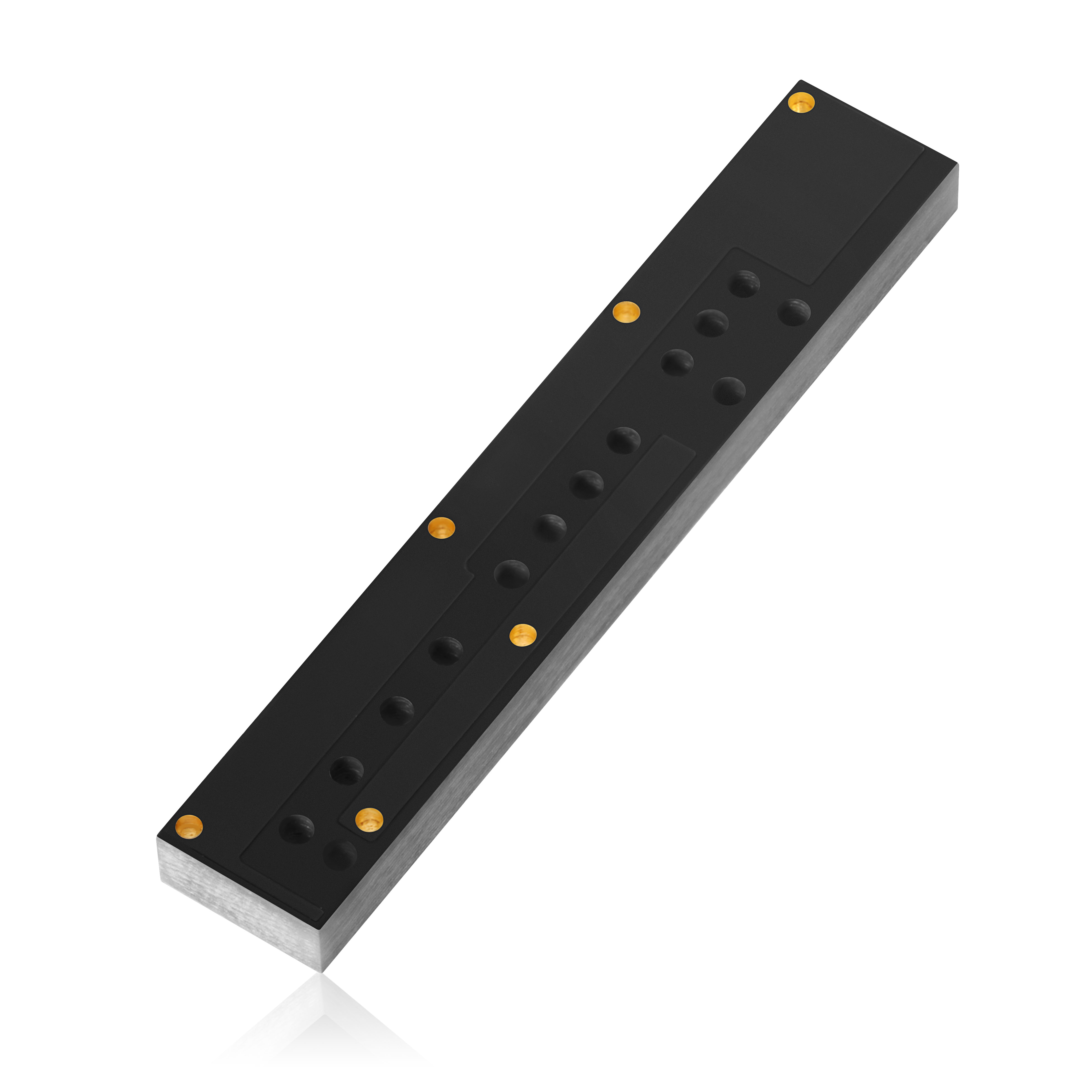

YC0003AA Series
Manufacturer: Quectel
Beta
⌘K
EVAL BOARD FOR YC0003AA
| Part | Supplied Contents | For Use With/Related Products | Contents | Utilized IC / Part | Type | Frequency [Min] | Frequency [Max] | Applications | Number of Bands | Frequency Group | Frequency Range [Min] | Frequency Range [Max] | VSWR | Gain | Termination | Height (Max) [z] | Height (Max) [z] | RF Family/Standard | Mounting Type | Frequency (Center/Band) | Antenna Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Quectel | Board(s) | YC0003AA | Board(s) | YC0003AA | Antenna | 698 MHz | 2700 MHz | ||||||||||||||
 Quectel | LTE | 3 | UHF (2GHz ~ 3GHz) UHF (300MHz ~ 1GHz) | 1.695 GHz 2.3 GHz 698 MHz | 2.2 GHz 2.7 GHz 960 MHz | 3 | 5.5 dBi | Solder | 3 mm | 0.118 in | Cellular | Surface Mount | 2.5 GHz 2.9475 GHz 829 MHz | Chip |
