73404W Series
Manufacturer: Belden Inc.
Beta
⌘K

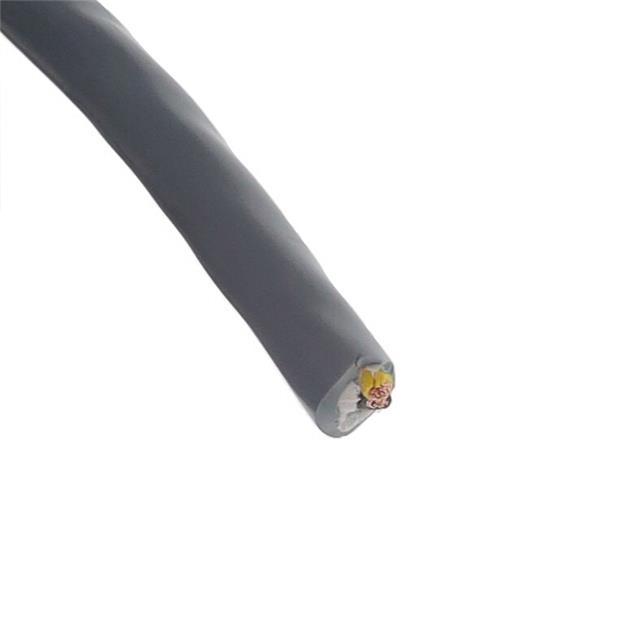

CABLE 4COND 14AWG GRAY
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Length [x] | Length [x] | Features | Jacket (Insulation) Material | Jacket Color | Number of Conductors | Cable Type | Wire Gauge | Ratings | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 10.26 mm | 0.404 in | Copper Bare | 100 ft | 30.5 m | Oil Resistant | Poly-Vinyl Chloride (PVC) | Gray | 4 | Multi-Conductor | 14.5 AWG | UL Style 2587 | Poly-Vinyl Chloride (PVC) | 41 | 30 | 1.397 mm | 0.055 in | 600 V | ||
 Belden Inc. | 10.26 mm | 0.404 in | Copper Bare | Oil Resistant | Poly-Vinyl Chloride (PVC) | Gray | 4 | Multi-Conductor | 14.5 AWG | UL Style 2587 | Poly-Vinyl Chloride (PVC) | 41 | 30 | 1.397 mm | 0.055 in | 600 V | 152.4 m | 500 ft |
