MSPE-P Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

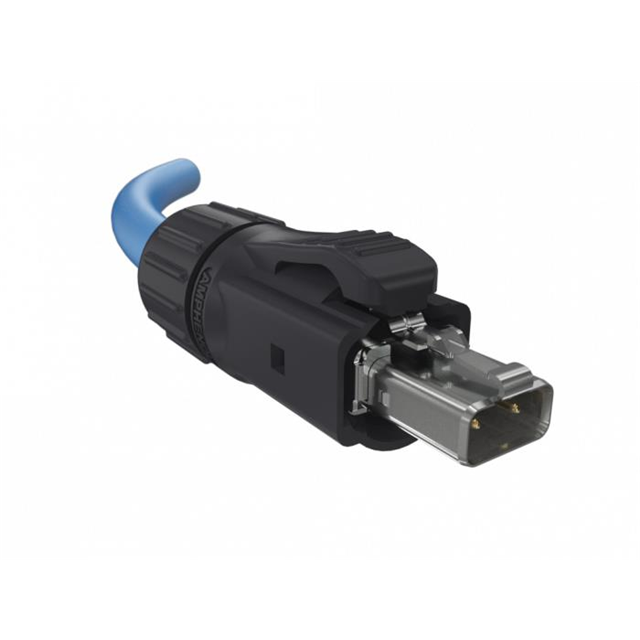

MSPE SERIES, IP20 PLUG, LATCH LO
| Part | Cable Type | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Material | Voltage Rating | Housing Material | Ingress Protection | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Features | Color | Shielding | Shield Material | Connector Type | Length | Length | Current Rating (Amps) | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Not Specified Round Cable | 24 AWG | 26 AWG | 30 Áin | 0.76 Ám | IDC | Copper Alloy | 60 VDC | Thermoplastic | IP20 | 2 | 2 | Cable Clamp Housing | Black | Shielded | Stainless Steel | Plug | 1.327 " | 33.71 mm | 4 A | Gold |
Amphenol ICC (Commercial Products) | Not Specified Round Cable | 17.5 AWG | 28 AWG | 30 Áin | 0.76 Ám | IDC | Copper Alloy | 60 VDC | Thermoplastic | IP20 | 2 | 2 | Cable Clamp Housing | Black | Shielded | Stainless Steel | Plug | 1.327 " | 33.71 mm | 3 A | Gold |
