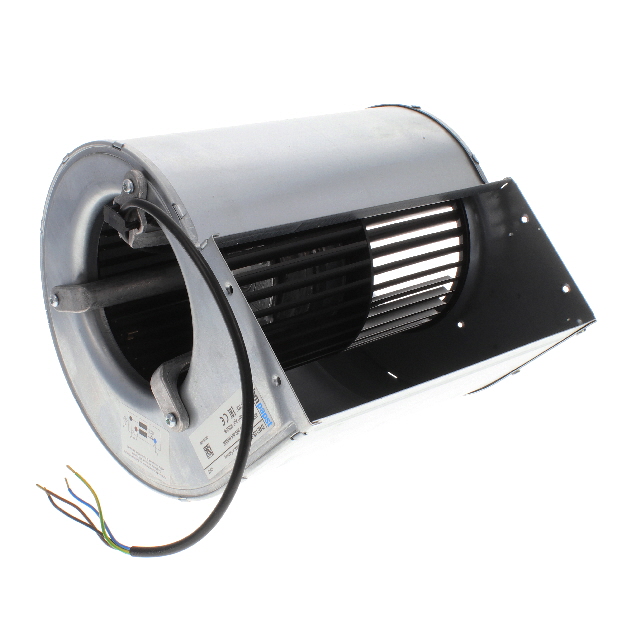

D4E133 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
AC CENTRIFUGAL BLOWER
| Part | Material - Blade | Current Rating (Amps) | Material - Frame | Operating Temperature | Operating Temperature | Ingress Protection | Fan Type | Power (Watts) | Features | Approval Agency | Termination | Width [x] | Voltage - Rated | Size / Dimension | Size / Dimension [z] | Size / Dimension [x] | Bearing Type | RPM | Width [y] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon | 490 mA | Steel | 60 °C | 60 °C | IP44 | Blower Centrifugal | 95 W | Capacitor Thermal Overload Protector (TOP) | CCC CE EAC | 4 Wire Leads | 232 mm | 230 VAC | Rectangular/Rounded | 213 mm | 203 mm | Ball | 1180 RPM | |||||
 ebm-papst Inc. | Steel | 430 mA | Steel | IP44 | Blower Centrifugal | 95 W | Capacitor Thermal Overload Protector (TOP) | CE | 4 Wire Leads | 230 VAC | Rectangular/Rounded | 213 mm | 203 mm | Ball | 1180 RPM | 270 mm | 50 °C | -25 °C | -25 °C | 50 °C |
