SS35V Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKES / FILTERS 250VAC 4.5A 2.2MH

Part	DC Resistance (DCR) (Max) [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance @ Frequency	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Package / Case	Filter Type	Height (Max) [z]	Height (Max) [z]	Current Rating (Max) [Max]
KEMET SS35V-45022	60 mOhm	Through Hole	26.5 mm	1.043 in	1.457 in	37 mm	1 kHz 2.2 mH	2	120 °C	-25 °C	250 V	Vertical 6 PC Pin	Power Line	1.614 in	41 mm

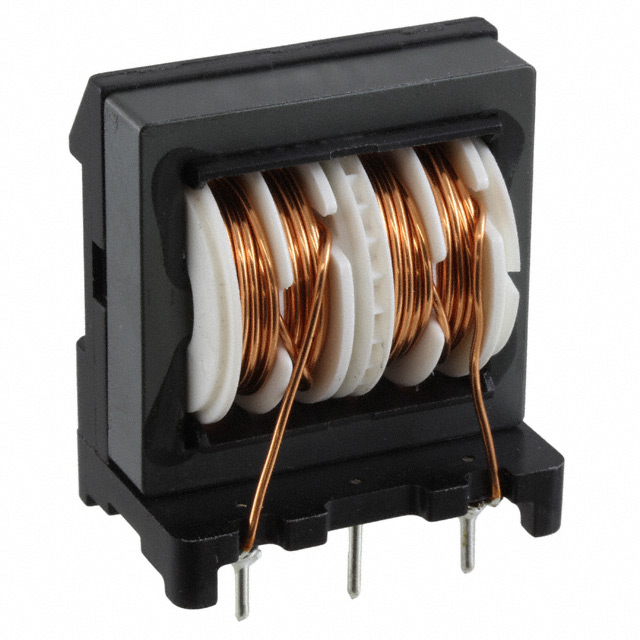

KEMET SS35V-40033	80 mOhm	Through Hole	26.5 mm	1.043 in	1.457 in	37 mm	3.3 mH	2	120 °C	-25 °C	250 V	Vertical 6 PC Pin	Power Line	1.614 in	41 mm	4 A

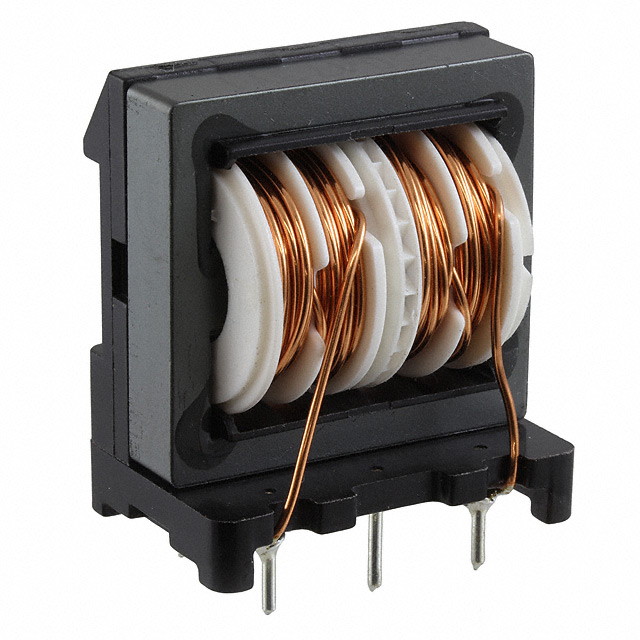

KEMET SS35V-35047	100 mOhm	Through Hole	26.5 mm	1.043 in	1.457 in	37 mm	1 kHz 4.7 mH	2	120 °C	-25 °C	250 V	Vertical 6 PC Pin	Power Line	1.614 in	41 mm	3.5 A

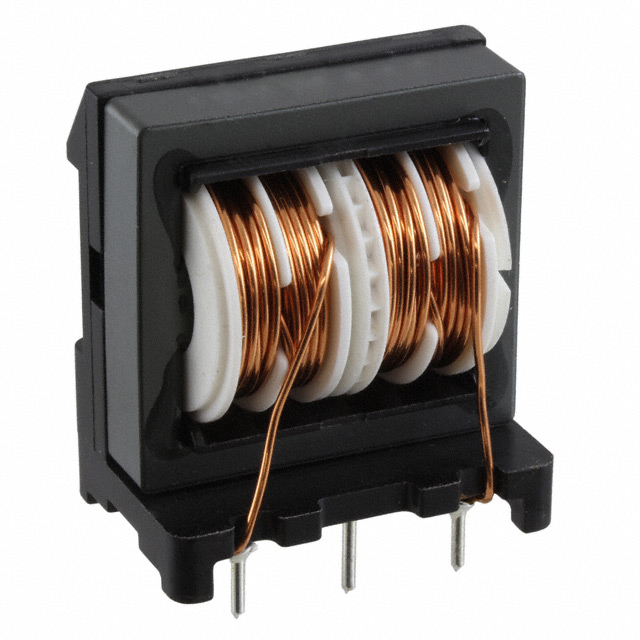

KEMET SS35V-30082	150 mOhm	Through Hole	26.5 mm	1.043 in	1.457 in	37 mm	8.2 mH	2	120 °C	-25 °C	250 V	Vertical 6 PC Pin	Power Line	1.614 in	41 mm	3 A
KEMET SS35V-15300	480 mOhm	Through Hole	26.5 mm	1.043 in	1.457 in	37 mm	1 kHz 30 mH	2	120 °C	-25 °C	250 V	Vertical 6 PC Pin	Power Line	1.614 in	41 mm	1.5 A
