PPPC091 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 9POS 0.1 GOLD PCB
| Part | Contact Shape | Contact Finish Thickness - Post | Contact Material | Insulation Material | Voltage Rating | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions Loaded | Insulation Height | Insulation Height | Insulation Color | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Type | Current Rating (Amps) | Number of Positions | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Connector Type | Material Flammability Rating | Contact Finish Thickness - Mating | Termination | Number of Rows | Mounting Type | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

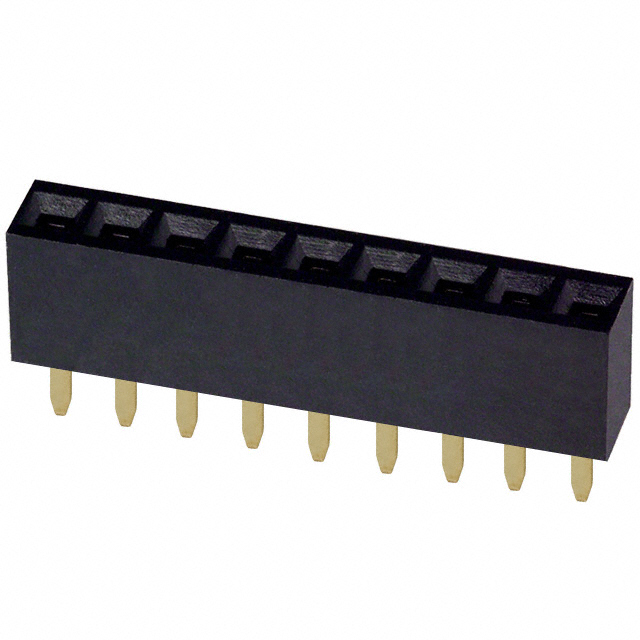

 Sullins Connector Solutions | Square | Flash | Phosphor Bronze | Polyester | 250 V | 0.126 " | 3.2 mm | All | 0.335 " | 8.51 mm | Black | Gold | -40 C | 105 ░C | Push-Pull | Female Socket | 3 A | 9 | Gold | 0.1 " | 2.54 mm | Header | UL94 V-0 | Flash | Solder | 1 | Through Hole | ||

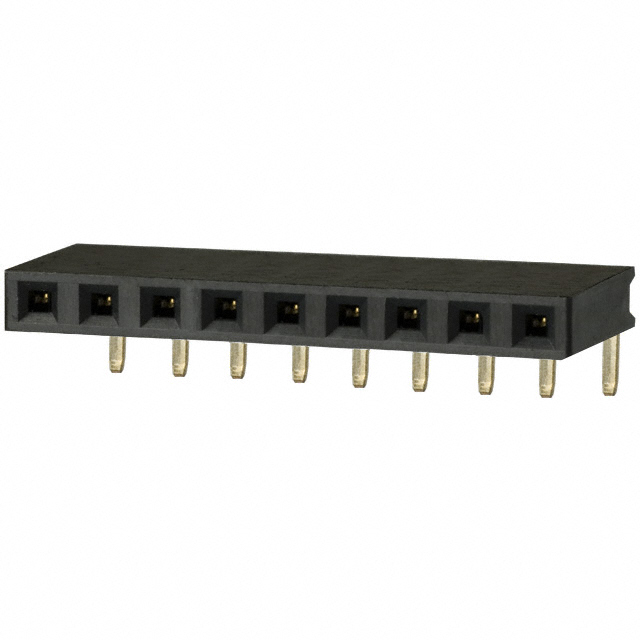

 Sullins Connector Solutions | Square | Flash | Phosphor Bronze | Polyester | 250 V | All | 0.1 in | 2.54 mm | Black | Gold | -40 C | 105 ░C | Push-Pull | Female Socket | 3 A | 9 | Gold | 0.1 " | 2.54 mm | Header | UL94 V-0 | Flash | Solder | 1 | Right Angle Through Hole | 0.124 in | 3.15 mm |
