8106 Series
Manufacturer: Belden Inc.
Beta
⌘K

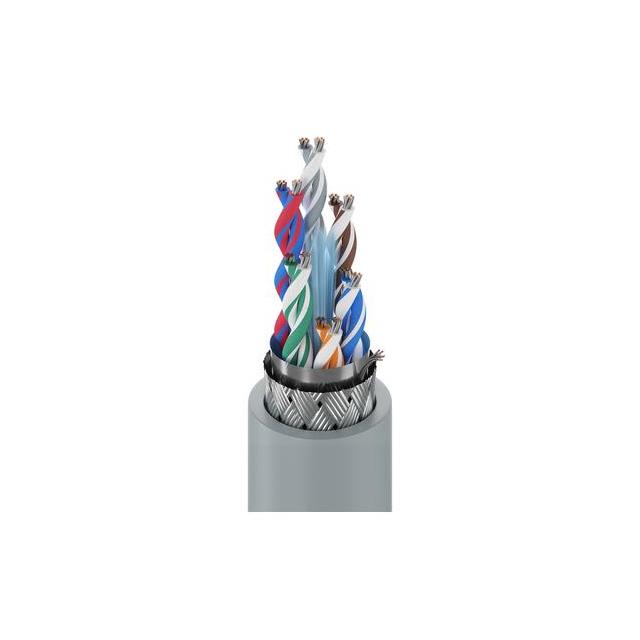

MULTI-PAIR 12COND 24AWG
| Part | Shield Material | Shield Coverage | Ratings | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Features | Number of Conductors | Cable Type | Shield Type | Length | Length | Conductor Insulation | Jacket (Insulation) Material | Wire Gauge | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | UL Style 2919 | Copper Tinned | 80 °C | -30 ░C | Drain Wire | 12 | Multi-Pair | Braid Foil | 152.4 m | 500 ft | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | 24 AWG | Chrome | 0.035 in | 0.889 mm | 7 | 32 AWG | Computer | 8.66 mm | 0.341 in | ||
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | UL Style 2919 | Copper Tinned | 80 °C | -30 ░C | Drain Wire | 12 | Multi-Pair | Braid Foil | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | 24 AWG | Chrome | 0.035 in | 0.889 mm | 7 | 32 AWG | Computer | 8.66 mm | 0.341 in | 100 ft | 30.5 m |
