811 Series

Catalog

CMC 7.3MH 9.3A 2LN TH

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current Rating (Max) [Max]	Inductance @ Frequency	Number of Lines	DC Resistance (DCR) (Max) [Max]	Package / Case	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max)	Height (Max) [Max] [z]	Height (Max)	Height (Max) [z]

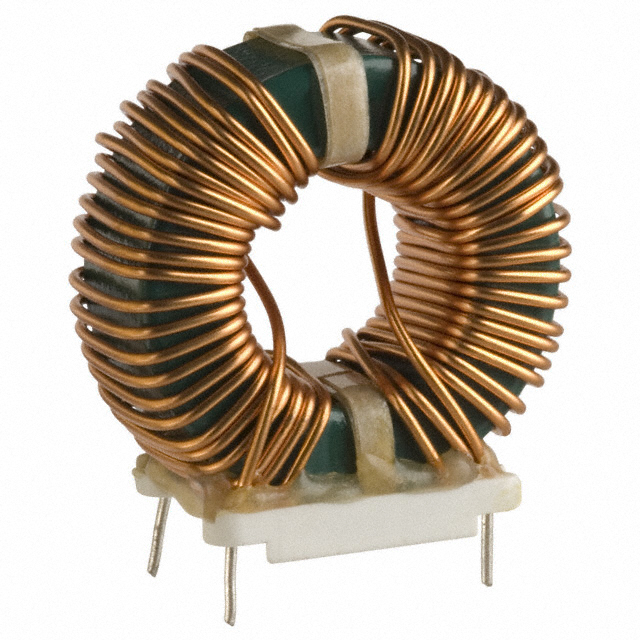

Bourns Inc. 8118	Through Hole	-55 C	105 ░C	41.91 mm	1.65 in	20.32 mm	0.8 "	9.3 A	1 kHz 7.3 mH	2	32 mOhm	Vertical 4 PC Pin	1.65 in	41.91 mm

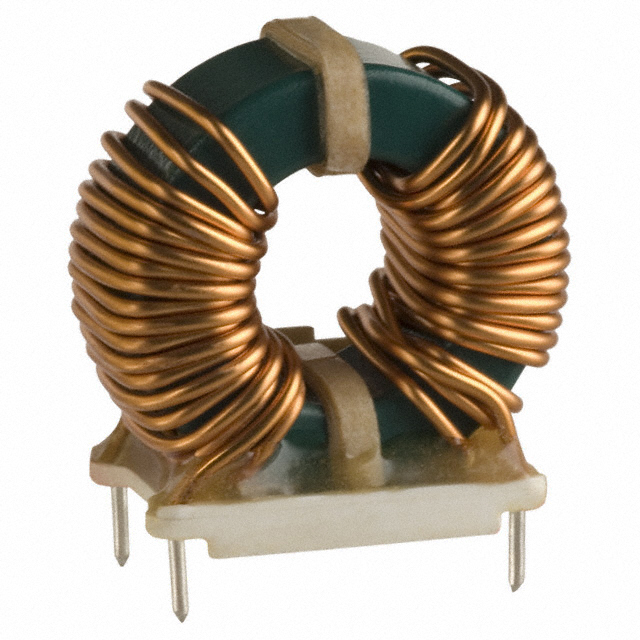

Bourns Inc. 8119	Through Hole	-55 C	105 ░C	43.18 mm	1.7 in	22.86 mm	0.9 in	14.5 A	1 kHz 4 mH	2		Vertical 4 PC Pin	1.65 in	41.91 mm	12 mOhm

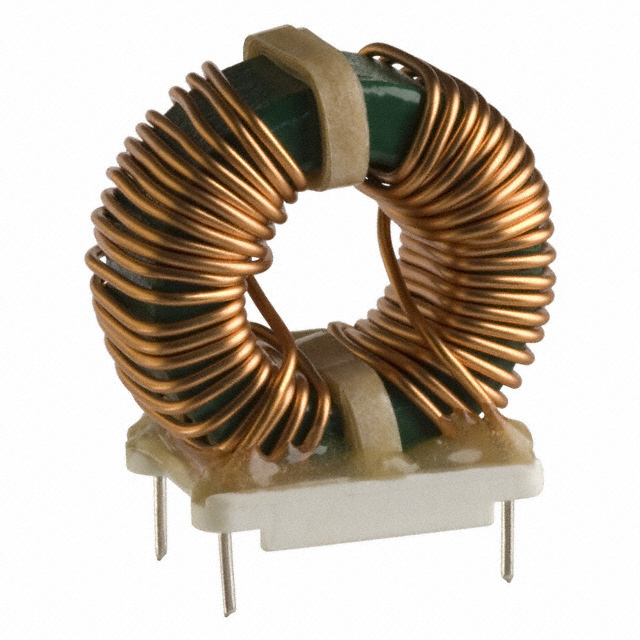

Bourns Inc. 8113	Through Hole	-55 C	105 ░C	36.83 mm	1.45 in	20.32 mm	0.8 "	8.9 A	5 mH	2	22 mOhm	Vertical 4 PC Pin				1.5 in	38.1 mm

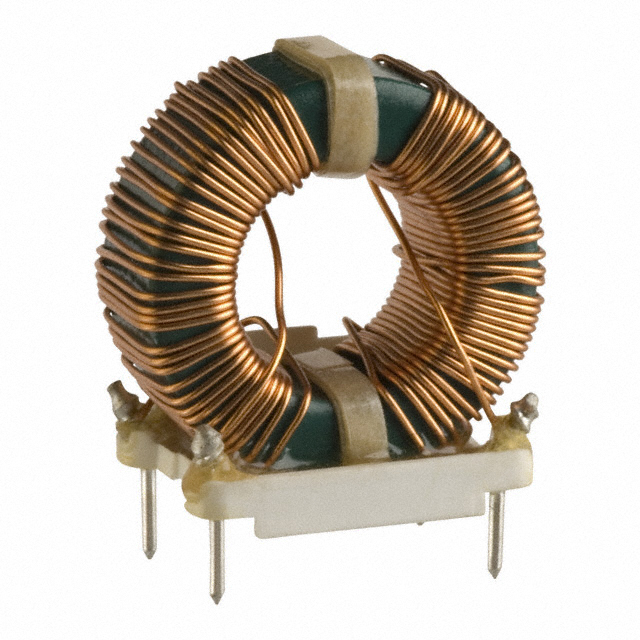

Bourns Inc. 8111	Through Hole	-55 C	105 ░C	34.29 mm	1.35 in	20.32 mm	0.8 "	4 A	12 mH	2		Vertical 4 PC Pin		1.45 in	110 mOhm			36.83 mm
