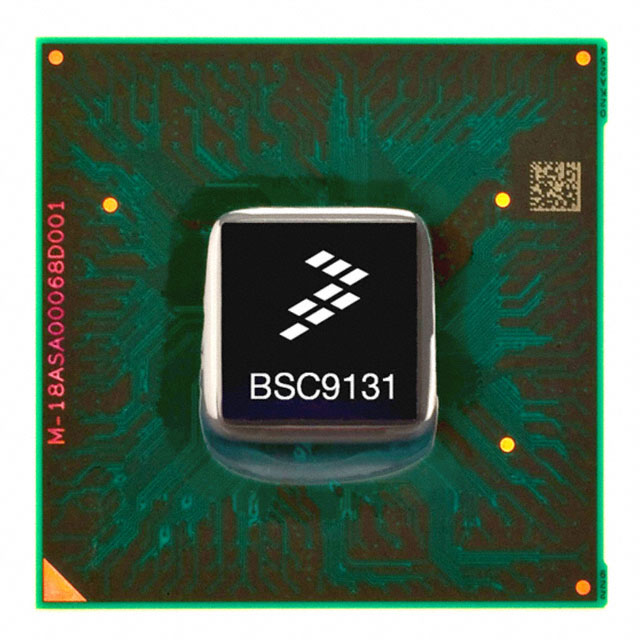

BSC91 Series

Catalog

QORIQ QONVERGE SOC, 800MHZ STARC

Part	Ethernet Ports	Ethernet Speed Options	Graphics Acceleration	Package Name	Package Width	Package Length	RAM Controllers	Voltage - I/O (Option 3)	Voltage - I/O (Option 2)	Voltage - I/O (Option 1)	Co-Processors/DSP	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Speed	Mounting Type	Core Processor	Bus Width	Number of Cores	USB 2.0 Count	USB	Additional Interfaces	Security Features
NXP USA Inc. BSC9131NJN1HHHB	2	1000Mbps 100Mbps 10Mbps	No	520-FCBGA	21 mm	21 mm	DDR3 DDR3L	3.3 V	2.5 V	1.8 V	SC3850 Signal Processing	105 °C	-40 °C	520-FBGA FCBGA	800 MHz	Surface Mount	PowerPC e500	32 Bit	1 Core	1 count	USB 2.0	AIC DUART I2C MMC SD SPI USIM
NXP USA Inc. BSC9131NJN1HHHB
NXP USA Inc. BSC9131NSE1KHKB	2	1000Mbps 100Mbps 10Mbps	No	520-FCBGA	21 mm	21 mm	DDR3 DDR3L	3.3 V	2.5 V	1.8 V	SC3850 SEC 4.4 Security Signal Processing	105 °C	0 °C	520-FBGA FCBGA	800 MHz	Surface Mount	PowerPC e500	32 Bit	1 Core	1 count	USB 2.0	AIC DUART I2C MMC SD SPI USIM	Boot Security Cryptography Random Number Generator
NXP USA Inc. BSC9131NLE1HHHB	2	1000Mbps 100Mbps 10Mbps	No	520-FCBGA	21 mm	21 mm	DDR3 DDR3L	3.3 V	2.5 V	1.8 V	SC3850 SEC 4.4 Security Signal Processing	105 °C	0 °C	520-FBGA FCBGA	800 MHz	Surface Mount	PowerPC e500	32 Bit	1 Core	1 count	USB 2.0	AIC DUART I2C MMC SD SPI USIM	Boot Security Cryptography Random Number Generator
NXP USA Inc. BSC9131NSN1KHKB
NXP USA Inc. BSC9131NXN1KHKB	2	1000Mbps 100Mbps 10Mbps	No	520-FCBGA	21 mm	21 mm	DDR3 DDR3L	3.3 V	2.5 V	1.8 V	SC3850 Signal Processing	105 °C	-40 °C	520-FBGA FCBGA	800 MHz	Surface Mount	PowerPC e500	32 Bit	1 Core	1 count	USB 2.0	AIC DUART I2C MMC SD SPI USIM
NXP USA Inc. BSC9131NSN1KHKB	2	1000Mbps 100Mbps 10Mbps	No	520-FCBGA	21 mm	21 mm	DDR3 DDR3L	3.3 V	2.5 V	1.8 V	SC3850 Signal Processing	105 °C	0 °C	520-FBGA FCBGA	800 MHz	Surface Mount	PowerPC e500	32 Bit	1 Core	1 count	USB 2.0	AIC DUART I2C MMC SD SPI USIM
