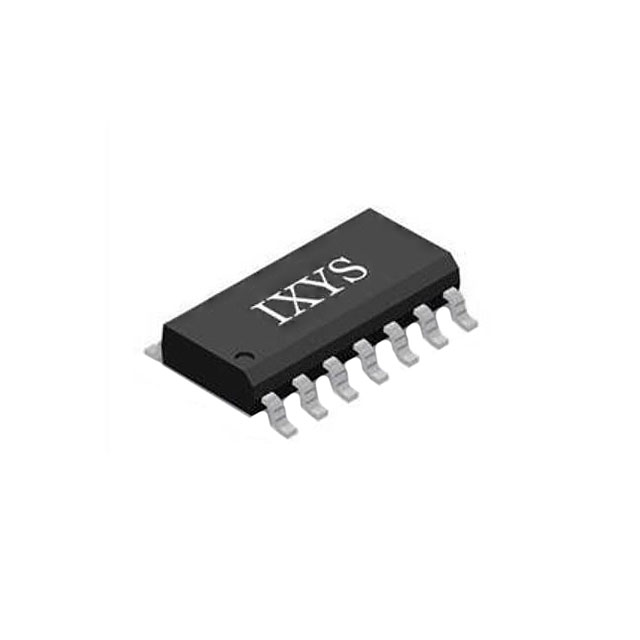

HI LO Side DRVR 130mA SOIC(N)-14
HI LO Side DRVR 130mA SOIC(N)-14
| Part | Channel Type | Mounting Type | Number of Drivers | High Side Voltage - Max (Bootstrap) [Max] | Gate Type | Input Type | Package / Case | Package / Case | Driven Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Logic Voltage - VIL, VIH | Rise / Fall Time (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Independent | Surface Mount | 2 | 600 V | IGBT N-Channel MOSFET | Non-Inverting | 0.154 in 3.9 mm | 14-SOIC | Half-Bridge | 125 °C | -40 °C | 20 V | 10 VDC | 600 mA | 290 mA | 0.6 V 2.5 V | 25 ns 100 ns |
LITTELFUSE | Independent | Surface Mount | 2 | 600 V | IGBT MOSFET (N-Channel) | Non-Inverting | 0.154 in 3.9 mm | 14-SOIC | Half-Bridge | 125 °C | -40 °C | 20 V | 10 VDC | 600 mA | 290 mA | 0.6 V 2.5 V | 25 ns 100 ns |
