079108 Series

Manufacturer: Molex

Catalog

CONN RCPT 10POS 0.079 GOLD PCB

Part	Contact Shape	Mounting Type	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Insulation Color	Contact Type	Contact Finish - Post	Number of Positions Loaded	Connector Type	Contact Finish - Mating	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Style	Number of Rows	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]
Molex 0791081004	Square	Through Hole	125 VDC	74.8 Áin	1.9 Ám	Phosphor Bronze	4.45 mm	0.175 in	0.05 in	1.27 mm	10	0.079 in	2 mm	Solder	Black	Female Socket	Tin	All	Receptacle	Gold	Push-Pull	0.079 in	2 mm	Board to Board Cable	2	Automotive General Purpose Telecommunications	15 µin	0.38 µm	-55 °C	125 °C
Molex 0791081021	Square	Through Hole	125 VDC	74.8 Áin	1.9 Ám	Phosphor Bronze	4.45 mm	0.175 in	0.05 in	1.27 mm	44	0.079 in	2 mm	Solder	Black	Female Socket	Tin	All	Receptacle	Gold	Push-Pull	0.079 in	2 mm	Board to Board Cable	2	Automotive General Purpose Telecommunications	15 µin	0.38 µm	-55 °C	125 °C
Molex 0791081012	Square	Through Hole	125 VDC	74.8 Áin	1.9 Ám	Phosphor Bronze	4.45 mm	0.175 in	0.05 in	1.27 mm	26	0.079 in	2 mm	Solder	Black	Female Socket	Tin	All	Receptacle	Gold	Push-Pull	0.079 in	2 mm	Board to Board Cable	2	Automotive General Purpose Telecommunications	15 µin	0.38 µm	-55 °C	125 °C
Molex 0791081010	Square	Through Hole	125 VDC	74.8 Áin	1.9 Ám	Phosphor Bronze	4.45 mm	0.175 in	0.05 in	1.27 mm	22 positions	0.079 in	2 mm	Solder	Black	Female Socket	Tin	All	Receptacle	Gold	Push-Pull	0.079 in	2 mm	Board to Board Cable	2	Automotive General Purpose Telecommunications	15 µin	0.38 µm	-55 °C	125 °C
Molex 0791081056	Square	Through Hole	125 VDC	74.8 Áin	1.9 Ám	Phosphor Bronze	4.45 mm	0.175 in	0.05 in	1.27 mm	14	0.079 in	2 mm	Solder	Black	Female Socket	Tin	All	Receptacle	Gold	Push-Pull	0.079 in	2 mm	Board to Board Cable	2	Automotive General Purpose Telecommunications	30 Áin	0.76 Ám	-55 °C	125 °C
Molex 0791081008	Square	Through Hole	125 VDC	74.8 Áin	1.9 Ám	Phosphor Bronze	4.45 mm	0.175 in	0.05 in	1.27 mm	18	0.079 in	2 mm	Solder	Black	Female Socket	Tin	All	Receptacle	Gold	Push-Pull	0.079 in	2 mm	Board to Board Cable	2	Automotive General Purpose Telecommunications	15 µin	0.38 µm	-55 °C	125 °C
Molex 0791081024	Square	Through Hole	125 VDC	74.8 Áin	1.9 Ám	Phosphor Bronze	4.45 mm	0.175 in	0.05 in	1.27 mm	50	0.079 in	2 mm	Solder	Black	Female Socket	Tin	All	Receptacle	Gold	Push-Pull	0.079 in	2 mm	Board to Board Cable	2	Automotive General Purpose Telecommunications	15 µin	0.38 µm	-55 °C	125 °C
Molex 0791081073	Square	Through Hole	125 VDC	74.8 Áin	1.9 Ám	Phosphor Bronze	4.45 mm	0.175 in	0.05 in	1.27 mm	48	0.079 in	2 mm	Solder	Black	Female Socket	Tin	All	Receptacle	Gold	Push-Pull	0.079 in	2 mm	Board to Board Cable	2	Automotive General Purpose Telecommunications	30 Áin	0.76 Ám	-55 °C	125 °C

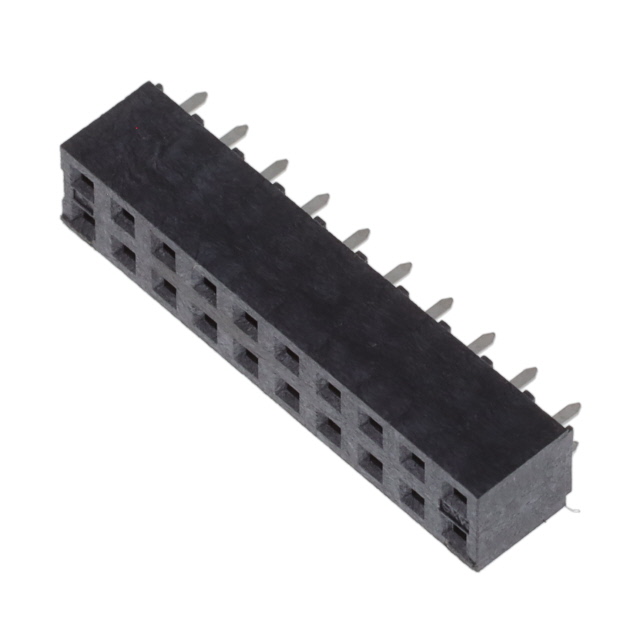

Molex 0791081009	Square	Through Hole	125 VDC	74.8 Áin	1.9 Ám	Phosphor Bronze	4.45 mm	0.175 in	0.05 in	1.27 mm	20	0.079 in	2 mm	Solder	Black	Female Socket	Tin	All	Receptacle	Gold	Push-Pull	0.079 in	2 mm	Board to Board Cable	2	Automotive General Purpose Telecommunications	15 µin	0.38 µm	-55 °C	125 °C
