19290 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CONN PLG HSG FMALE 32POS INLINE
| Part | Number of Positions [custom] | Number of Positions [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Shielding | Contact Shape | Insert Material [custom] | Insert Material [custom] | Mounting Type | Material Flammability Rating | Includes | Features | Note | Shell Size - Insert | Type | Contact Type | Connector Type | Housing Color | Ingress Protection | Color | Material | Shell Size - Insert | Accessory Type | For Use With/Related Products | Shell Size - Insert [custom] | Number of Positions | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | 4 | 28 | -55 C | 105 ░C | Detent Lock | Unshielded | Circular | Nylon | Polyamide (PA) | Free Hanging (In-Line) | UL94 V-0 | 1 Connector 1 Grommet 1 Nut | Coupling Nut | Contacts Not Included | 24-0428 | For Female Sockets | Crimp and Solder Cup | Plug Housing | Black | IP67 - Dust Tight Waterproof | ||||||||
 ITT Cannon, LLC | ||||||||||||||||||||||||||||
 ITT Cannon, LLC | Contains Strap Sealed | Black | Plastic | 16 | Cap (Cover) Dust | Ringlock Series Receptacles Trident Neptune | ||||||||||||||||||||||
ITT Cannon, LLC | -55 C | 105 ░C | Detent Lock | Unshielded | Circular | Nylon | Polyamide (PA) | Free Hanging (In-Line) | UL94 V-0 | 1 Connector 1 Grommet 1 Nut | Coupling Nut | Contacts Not Included | For Female Sockets | Crimp and Solder Cup | Plug Housing | Black | IP67 - Dust Tight Waterproof | 16-0213 | 15 | |||||||||
 ITT Cannon, LLC | -55 C | 105 ░C | Detent Lock | Unshielded | Circular | Nylon | Polyamide (PA) | Free Hanging (In-Line) | UL94 V-0 | 1 Connector 1 Grommet 1 Nut | Coupling Nut | Contacts Not Included | 24-0048 | For Female Sockets | Crimp and Solder Cup | Plug Housing | Black | IP67 - Dust Tight Waterproof | 48 | |||||||||
ITT Cannon, LLC | -55 C | 105 ░C | Detent Lock | Unshielded | Circular | Nylon | Polyamide (PA) | Panel Mount | UL94 V-0 | 1 Connector 1 Grommet 1 O-Ring 2 Nuts | Contacts Not Included | 24-0048 | For Female Sockets | Crimp Solder Solder Cup | Receptacle Housing | Black | IP67 - Dust Tight Waterproof | 48 | Bulkhead - Front Side Nut | |||||||||

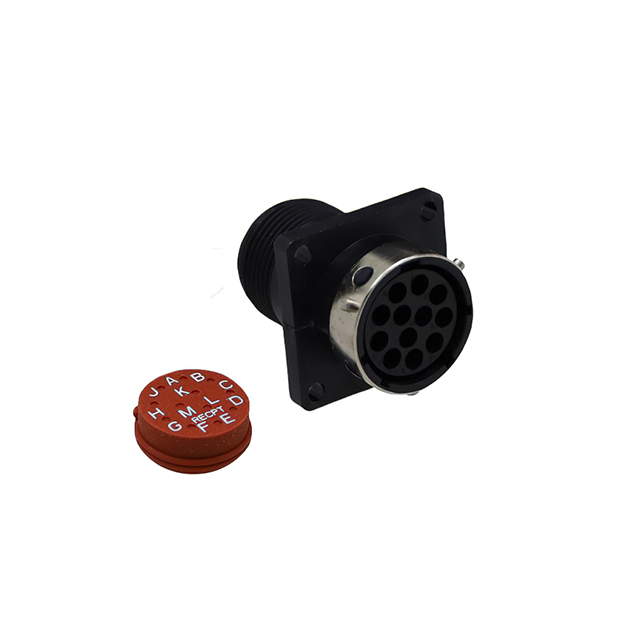

 ITT Cannon, LLC | -55 C | 105 ░C | Detent Lock | Unshielded | Circular | Nylon | Polyamide (PA) | Panel Mount | UL94 V-0 | 1 Connector 1 Grommet 1 O-Ring | Contacts Not Included | 14-0012 | For Female Sockets | Crimp Solder Solder Cup | Receptacle Housing | Black | IP67 - Dust Tight Waterproof | 12 | Flange | |||||||||
 ITT Cannon, LLC | -55 C | 105 ░C | Detent Lock | Unshielded | Circular | Nylon | Polyamide (PA) | Free Hanging (In-Line) | UL94 V-0 | 1 Connector 1 Grommet 1 Nut | Coupling Nut | Contacts Not Included | 16-0019 | For Female Sockets | Crimp and Solder Cup | Plug Housing | Black Silver | IP67 - Dust Tight Waterproof | 19 | |||||||||

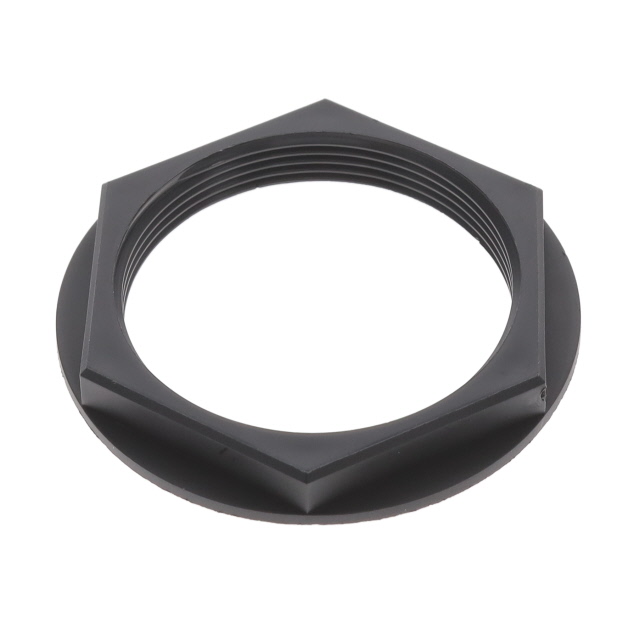

 ITT Cannon, LLC | Black | 24 | Hex Nut | Trident Neptune Jam Nut Receptacles | ||||||||||||||||||||||||
ITT Cannon, LLC | -55 C | 105 ░C | Detent Lock | Unshielded | Circular | Nylon | Polyamide (PA) | Panel Mount | UL94 V-0 | 1 Grommet 1 Nut 1 O-Ring 4 pcs - 1 Connector | Contacts Not Included | 14-0012 | For Female Sockets | Crimp Solder Solder Cup | Receptacle Housing | Black | IP67 - Dust Tight Waterproof | 12 | Flange |
