NPTC202 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

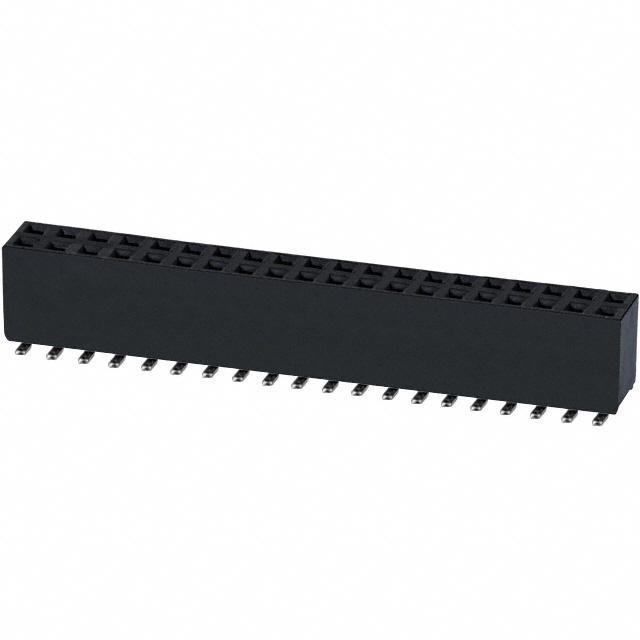

CONN HDR 40POS 0.1 TIN SMD
| Part | Contact Material | Contact Shape | Insulation Material | Insulation Color | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Number of Positions Loaded | Number of Rows [custom] | Contact Finish - Post | Fastening Type | Insulation Height [z] | Insulation Height | Termination | Mounting Type | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Connector Type | Voltage Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Square | Nylon 6T Polyamide (PA6T) | Black | 0.1 in | 2.54 mm | 40 | All | 2 | Tin | Push-Pull | 0.299 " | 7.6 mm | Solder | Surface Mount | Female Socket | 125 °C | -40 C | 0.1 " | 2.54 mm | UL94 V-0 | Header | 250 V | 3 A |
