UW-05 Series

Catalog

BUZZER PIEZO 35.56MM TH

Part	Operating Mode	Sound Pressure Level (SPL)	Input Type	Current - Supply [Max]	Current - Supply [Min]	Mounting Type	Termination	Technology	Frequency	Voltage Range [Min]	Voltage Range [Max]	Port Location	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]

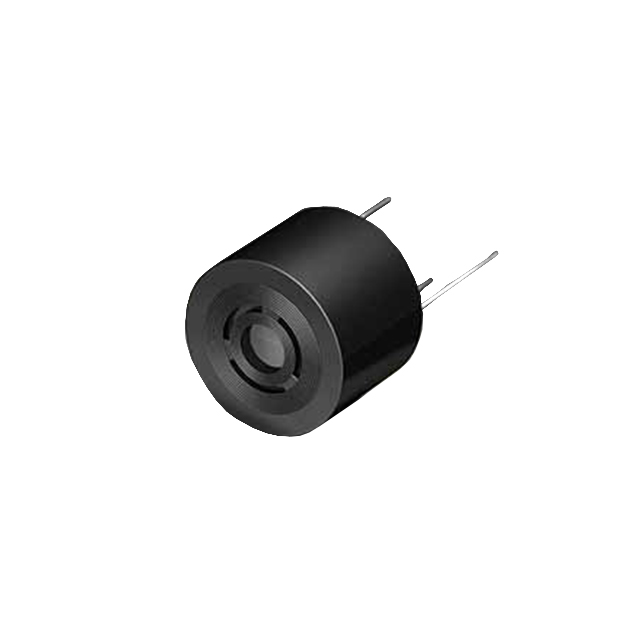

Floyd Bell Inc UW-05-515-P(S)	Slow Warble	97 dB	DC	80 mA	35 mA	Through Hole	PC Pins	Piezo	2.1 kHz	5 VDC	15 V	Top	28.07 mm	1.105 in	35.56 mm	1.4 in
Floyd Bell Inc UW-05-628-P(F)	Warble Fast	93 dB	DC	50 mA	20 mA	Through Hole	PC Pins	Piezo	2.1 kHz	6 VDC	28 V	Top	28.07 mm	1.105 in	35.56 mm	1.4 in
Floyd Bell Inc UW-05-628-P(S)	Slow Warble	93 dB	DC	50 mA	20 mA	Through Hole	PC Pins	Piezo	2.1 kHz	6 VDC	28 V	Top	28.07 mm	1.105 in	35.56 mm	1.4 in
Floyd Bell Inc UW-05-515-P(F)	Warble Fast	97 dB	DC	80 mA	35 mA	Through Hole	PC Pins	Piezo	2.1 kHz	5 VDC	15 V	Top	28.07 mm	1.105 in	35.56 mm	1.4 in
