T 3277 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN RCPT FMALE 3P SOLDER CUP

Part	Primary Material	Contact Finish - Mating	Fastening Type	Connector Type	Voltage Rating	Shell Finish	Color	Shell Material	Current Rating (Amps)	Mounting Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Ingress Protection	Termination	Housing Color	Contact Type	Material Flammability Rating	Contact Size	Insert Material	Contact Shape	Shielding	Mounting Feature	Note	Type
Amphenol Tuchel Industrial T 3277 100	Metal	Silver	Bayonet Lock	Receptacle Female Sockets	250 V	Nickel	Silver	Die Cast	10 A	Panel Mount	M16-3	-40 C	100 °C	Keyed	IP40

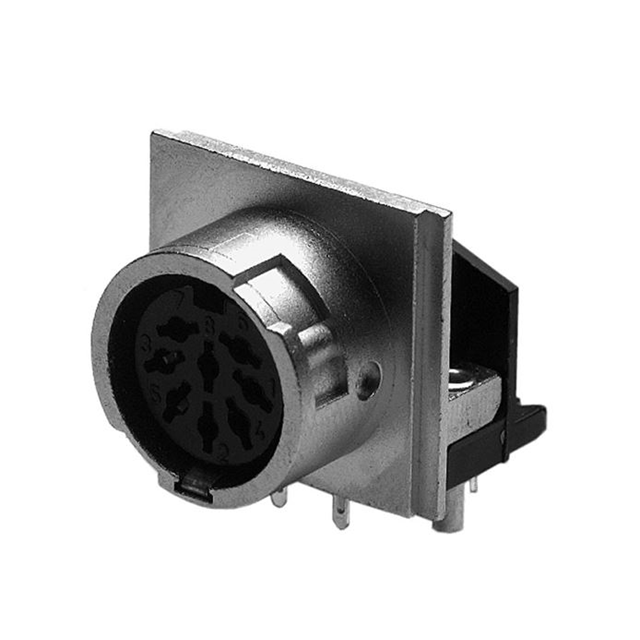

Amphenol Tuchel Industrial T 3277 900	Metal	Silver	Bayonet Lock	Receptacle Female Sockets	250 V	Nickel	Silver	Die Cast	10 A	Right Angle Through Hole	M16-3	-40 C	100 °C	Keyed	IP40	Solder

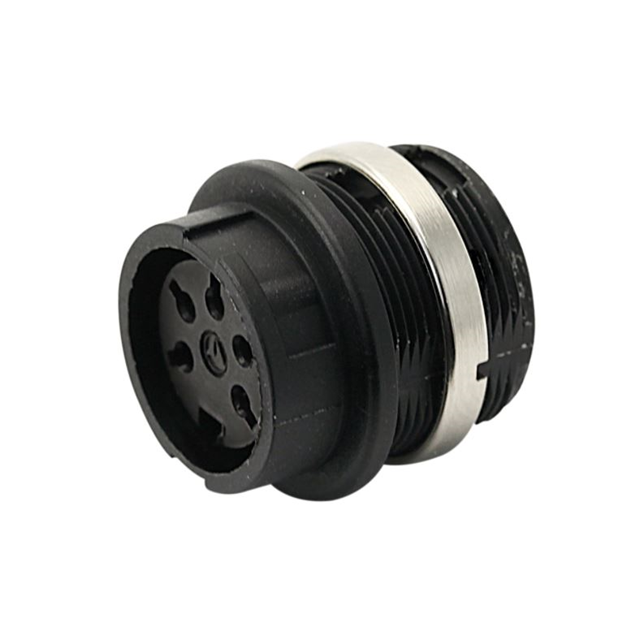

Amphenol Tuchel Industrial T 3277 050			Bayonet Lock	Receptacle Housing				Plastic		Panel Mount	M16-3	-40 C	100 °C	Keyed	IP40		Black	Crimp	UL94 V-0	1.5 mm	Thermoplastic	Circular	Unshielded	Bulkhead - Rear Side Nut	Contacts Not Included	For Female Sockets
Amphenol Tuchel Industrial T 3277 500	Plastic	Silver	Bayonet Lock	Receptacle Female Sockets	250 V			Plastic	10 A	Panel Mount Snap-In	M16-3	-40 C	100 °C	Keyed	IP40

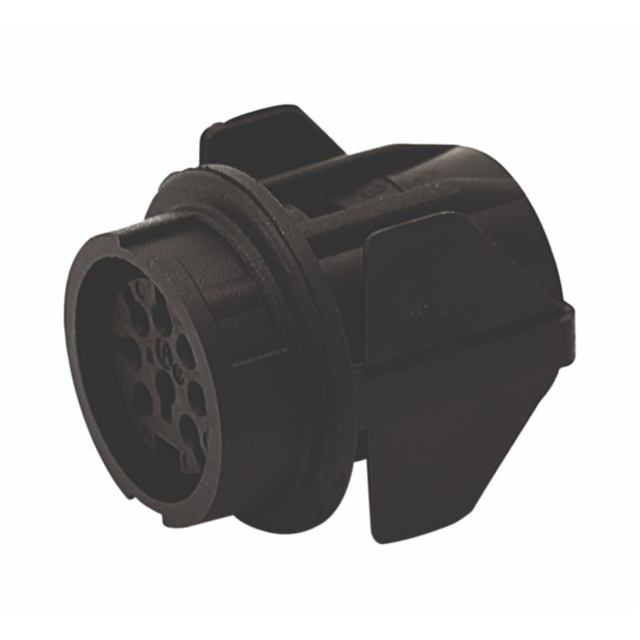

Amphenol Tuchel Industrial T 3277 550			Bayonet Lock	Receptacle Housing				Plastic		Panel Mount Snap-In	M16-3	-40 C	100 °C	Keyed	IP40		Black	Crimp	UL94 V-0	1.5 mm	Thermoplastic	Circular	Unshielded		Contacts Not Included	For Female Sockets

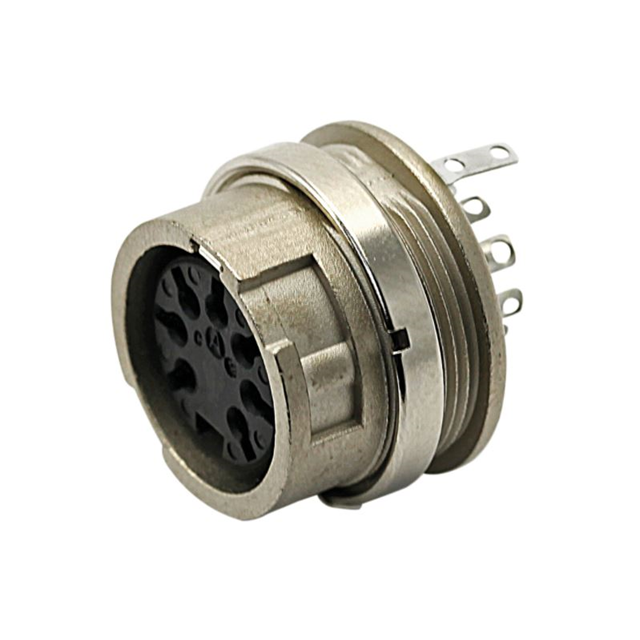

Amphenol Tuchel Industrial T 3277 150			Bayonet Lock	Receptacle Housing		Nickel		Die Cast		Panel Mount	M16-3	-40 C	100 °C	Keyed	IP40		Silver	Crimp	UL94 V-0	1.5 mm	Thermoplastic	Circular	Unshielded	Bulkhead - Front Side Nut	Contacts Not Included	For Female Sockets
