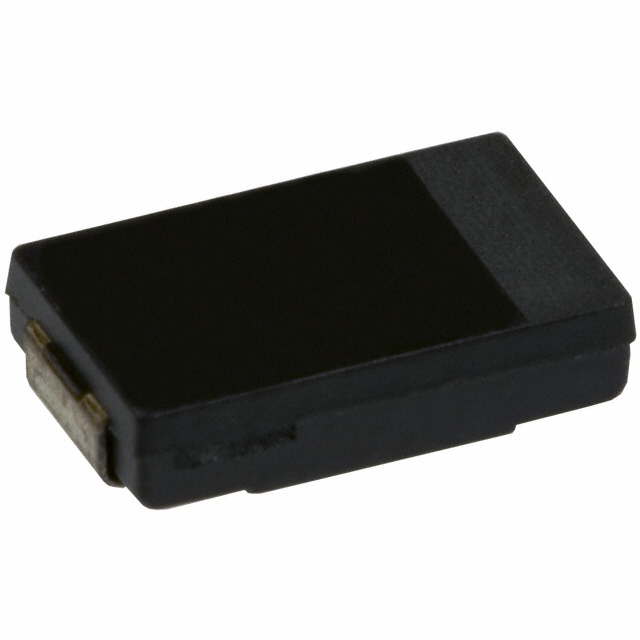

EEF-SL Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
CAP ALUM POLY 120UF 20% 2V SMD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lifetime @ Temp. | Capacitance | Ripple Current @ High Frequency | Voltage - Rated | Mounting Type | Package / Case | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | ESR (Equivalent Series Resistance) | Applications | Type | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | -40 °C | 105 ░C | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 0.071 " | 1.8 mm | 1000 Hrs | 120 µF | 3 A | 2 VDC | Surface Mount | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 9 mOhms | General Purpose | Polymer | 20 % | ||
Panasonic Industrial Automation Sales | -40 °C | 105 ░C | 0.071 " | 1.8 mm | 1000 Hrs | 10 µF | 2 VDC | Surface Mount | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | General Purpose | Polymer | 20 % | ||||||||
Panasonic Industrial Automation Sales | -40 °C | 105 ░C | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 0.071 " | 1.8 mm | 1000 Hrs | 150 µF | 2.5 V | Surface Mount | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 9 mOhms | General Purpose | Polymer | 20 % | |||
Panasonic Industrial Automation Sales | -40 °C | 105 ░C | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 1000 Hrs | 150 µF | 3 A | 2 VDC | Surface Mount | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 9 mOhms | General Purpose | Polymer | 20 % | 1.9 mm | 0.075 in | ||
Panasonic Industrial Automation Sales | -40 °C | 105 ░C | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 0.071 " | 1.8 mm | 1000 Hrs | 100 µF | 3 A | 2 VDC | Surface Mount | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 9 mOhms | General Purpose | Polymer | 20 % | ||
Panasonic Industrial Automation Sales | -40 °C | 105 ░C | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 0.071 " | 1.8 mm | 1000 Hrs | 100 µF | 3 A | 2.5 V | Surface Mount | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 9 mOhms | General Purpose | Polymer | 20 % | ||
Panasonic Industrial Automation Sales | -40 °C | 105 ░C | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 0.071 " | 1.8 mm | 1000 Hrs | 82 µF | 3 A | 4 V | Surface Mount | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 9 mOhms | General Purpose | Polymer | 20 % | ||
Panasonic Industrial Automation Sales | -40 °C | 105 ░C | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 0.071 " | 1.8 mm | 1000 Hrs | 56 µF | 3 A | 6.3 V | Surface Mount | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 9 mOhms | General Purpose | Polymer | 20 % | ||
Panasonic Industrial Automation Sales | -40 °C | 105 ░C | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 0.071 " | 1.8 mm | 1000 Hrs | 150 µF | 3 A | 2.5 V | Surface Mount | 7343 Metric | 2917 | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 9 mOhms | General Purpose | Polymer | 20 % |
